Components And Components Location: Components

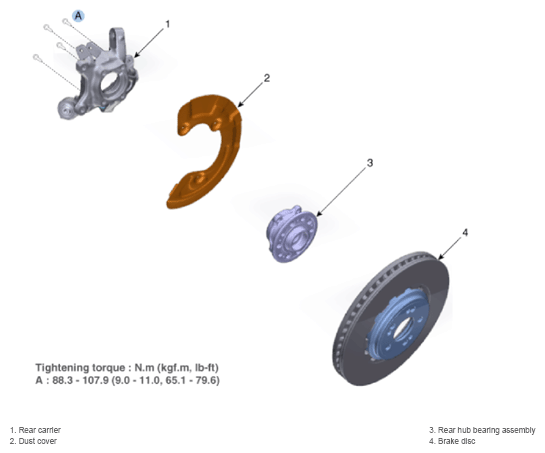

Fig 1: Rear Hub/Carrier Components Location With Torque Specification
G14764425Courtesy of HYUNDAI MOTOR AMERICA
