Removal And Installation
- Turn the ignition switch OFF and disconnect the battery (-) terminal.
- Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")

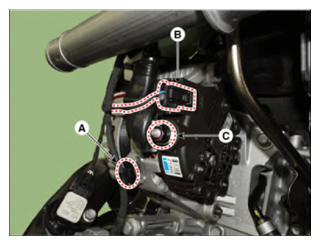

- Disconnect the wiring clip (A) and alternator connector (B) and then remove the cable nut (C) from the alternator "B" terminal.
Tightening torque:
18.6 - 24.5 N.m (1.9 - 2.5 kgf.m, 13.7 - 18.1 lb-ft)

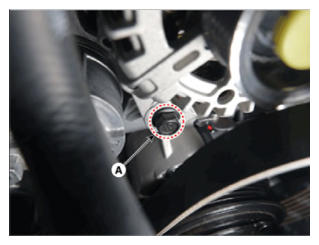

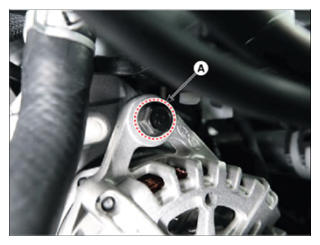

- Remove the alternator mounting bolt (A).
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft)

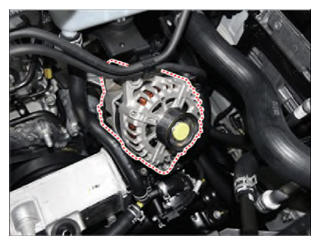

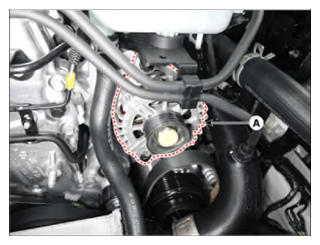

- Remove the alternator (A).
- Install in the reverse order of removal.
