Rear Power Window Switch

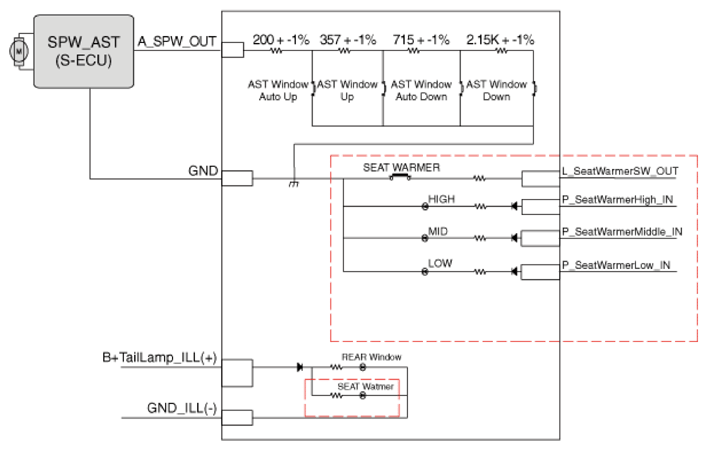

[Safety]

G16832543Courtesy of HYUNDAI MOTOR AMERICA

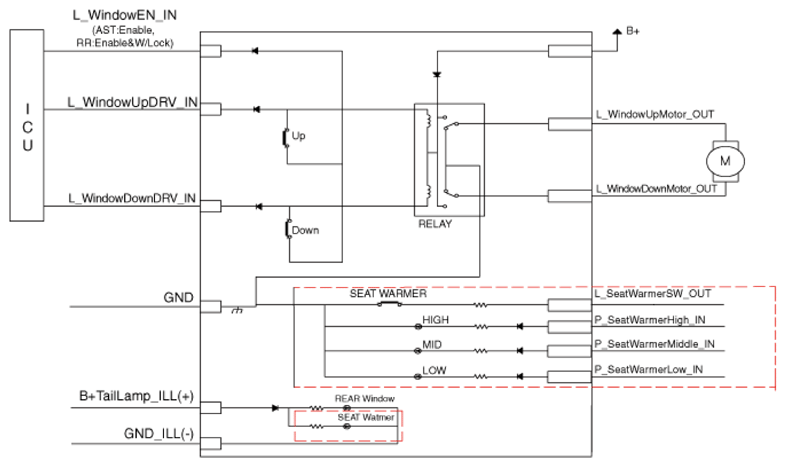

[Manual]

G16832544Courtesy of HYUNDAI MOTOR AMERICA
