Repair Procedures: Removal

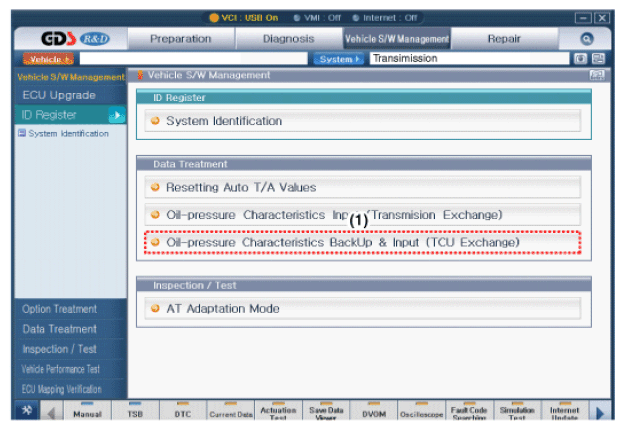

  1. Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

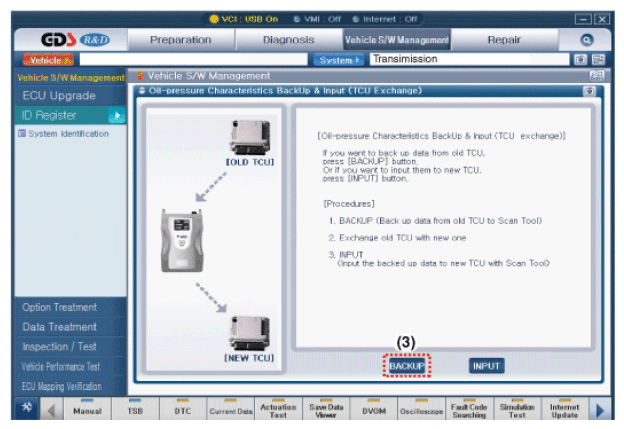

    G16834547Courtesy of HYUNDAI MOTOR AMERICA

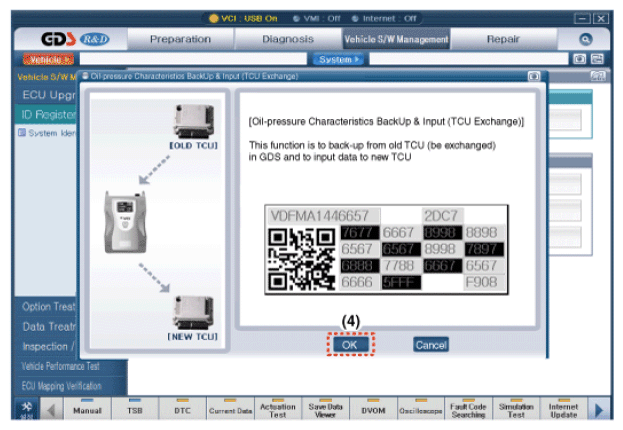

    G16834548Courtesy of HYUNDAI MOTOR AMERICA

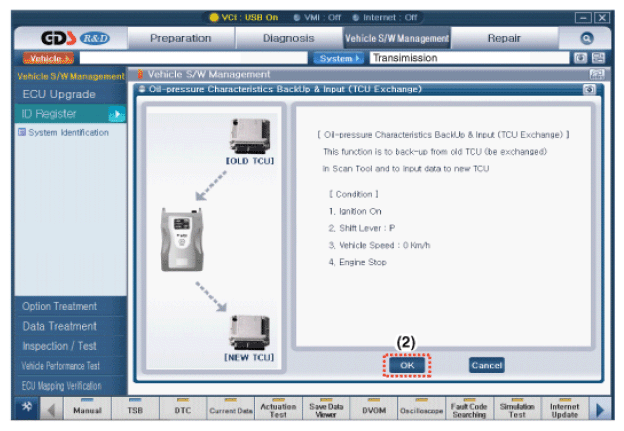

    G16834549Courtesy of HYUNDAI MOTOR AMERICA
    G16834550Courtesy of HYUNDAI MOTOR AMERICA
    G16834551Courtesy of HYUNDAI MOTOR AMERICA

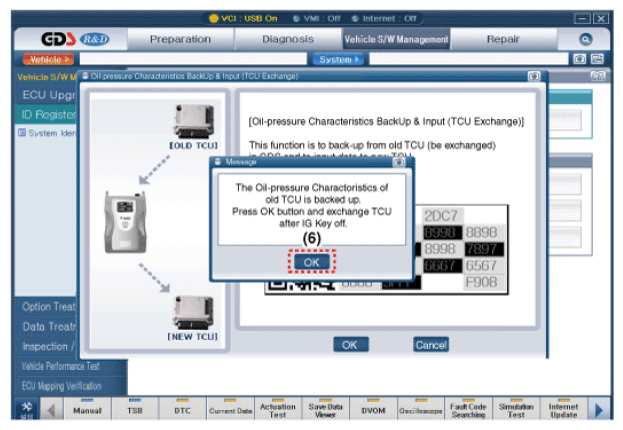

    G16834552Courtesy of HYUNDAI MOTOR AMERICA

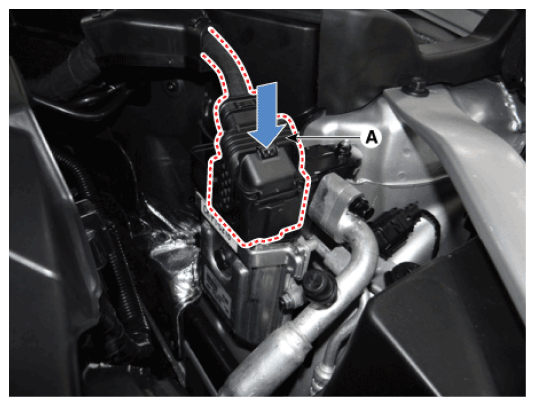

  2. Disconnect the TCM connector (A).
    G16834553Courtesy of HYUNDAI MOTOR AMERICA

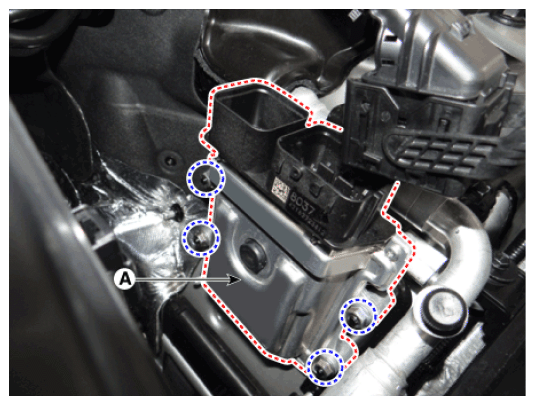

  3. Remove the TCM (A) after loosening the nuts.
    G16834554Courtesy of HYUNDAI MOTOR AMERICA
