Terminal Function: 400W

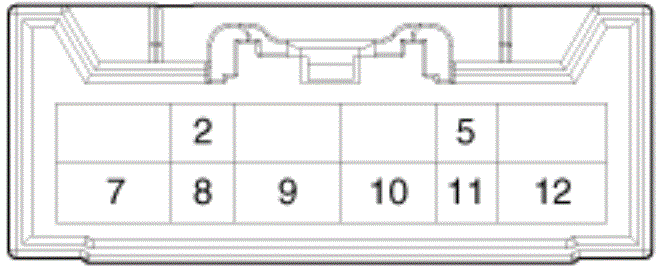

G15547229

Courtesy of HYUNDAI MOTOR AMERICA

Pin	Description
1	Battery power (B+) input
2	-
3	Battery power (B+) output
4	Ground
5	IGN1 input
6	ISG signal input
7	Battery power (B+) input
8	Battery power (B+) output
9	Battery power (B+) output
10	Ground
11	ACC output
12	ACC input
