SRS Control Module (SRSCM): Removal
- Disconnect the battery negative terminal.CAUTION:
- After disconnecting the cables, wait at least 3 minutes.
- Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

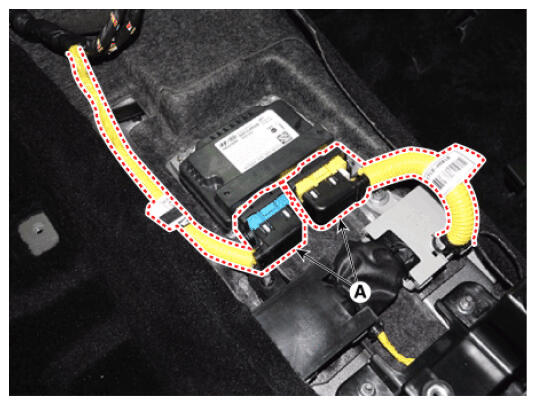

- Pull up the lock of the SRSCM connector to disconnect the connectors (A).

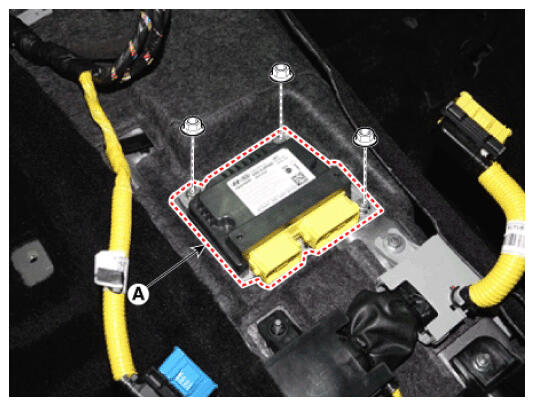

- Remove the SRSCM mounting nuts, remove the SRSCM (A).
Tightening torque:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
