Removal And Installation

Disconnect the (-) battery terminal.
Remove the rear wheel & tire.
(Refer to Suspension System - "WHEEL ")
Remove the rear wheel guard.
(Refer to Body - "REAR WHEEL GUARD ")

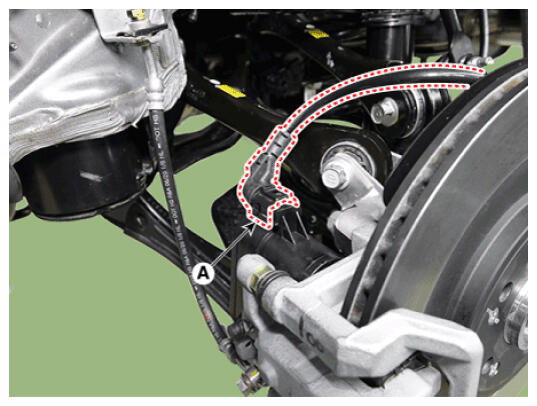

Disconnect the EPB connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

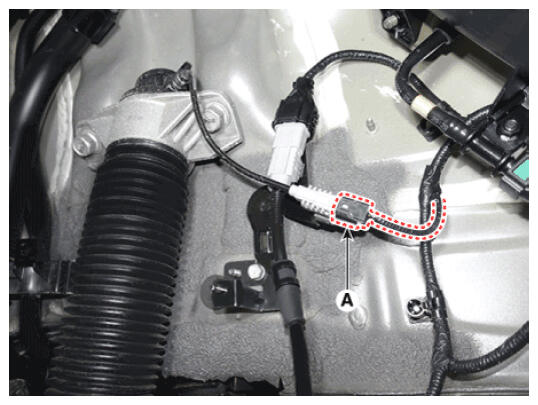

Disconnect the rear wheel speed sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

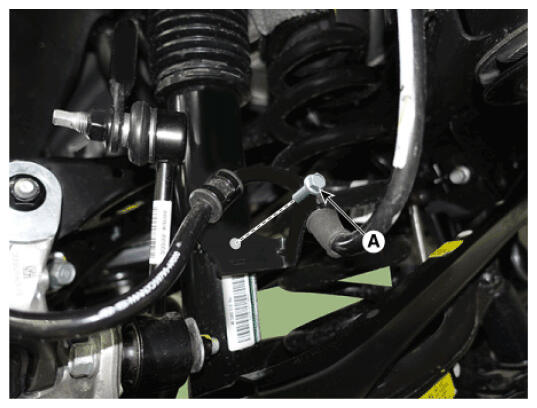

Remove the wiring bracket by removing the bolt (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

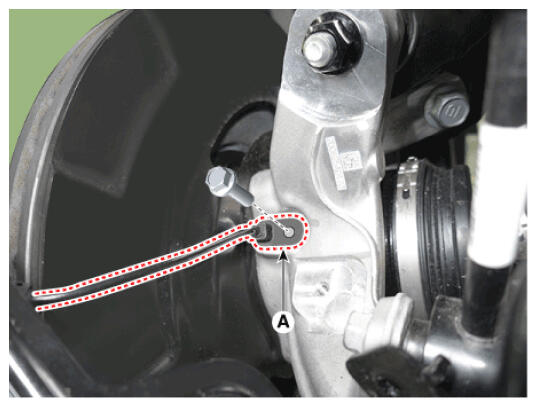

Remove the bolt and then disconnect the rear wheel speed sensor (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
