Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

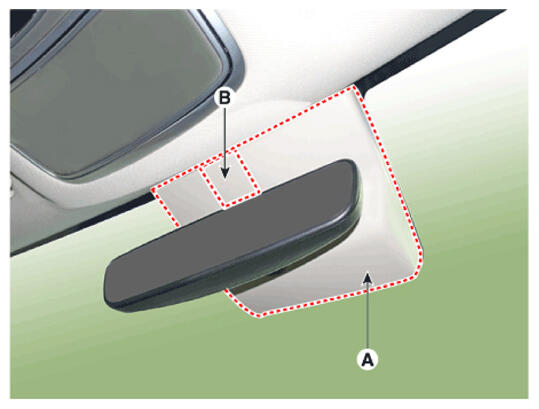

  2. Remove the multi sensor cover (A) and (B).
    G16774830Courtesy of HYUNDAI MOTOR AMERICA

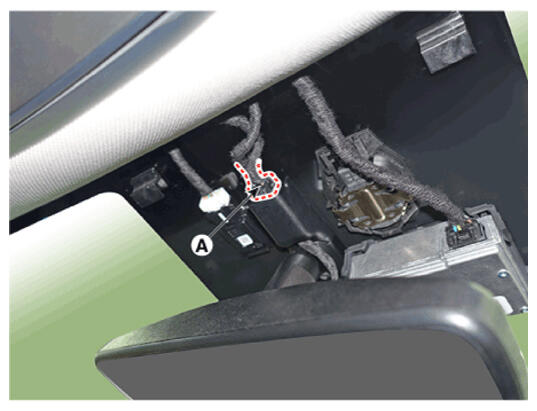

  3. Remove the mirror mounting screw and connector (A).

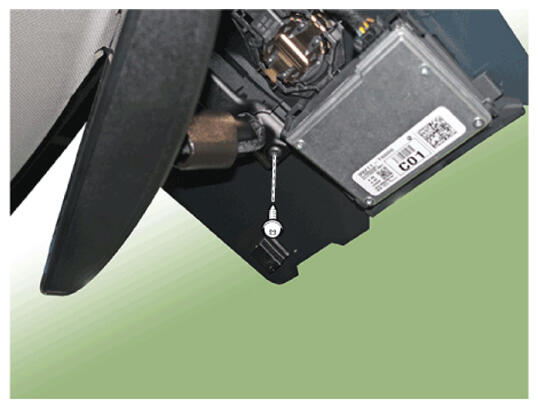

  4. Remove the mirror pulling up in the arrow direction.
NOTE: Make sure not to damage the mounting bracket when removing the mirror.
G16774831Courtesy of HYUNDAI MOTOR AMERICA
G16774832Courtesy of HYUNDAI MOTOR AMERICA
