Components And Components Location: Component

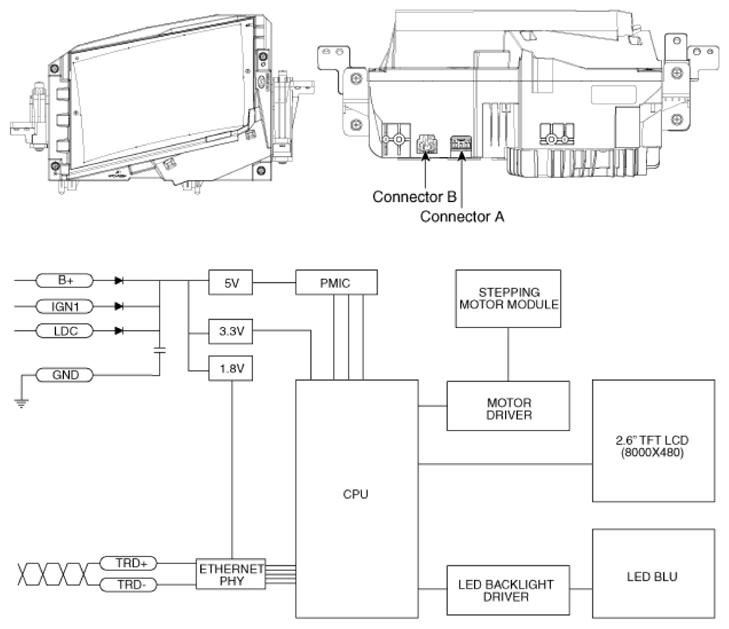

G16774937Courtesy of HYUNDAI MOTOR AMERICA
Connector A NO Description
G16774938Courtesy of HYUNDAI MOTOR AMERICA
 1 -
2 -
3 -
4 LDC (+)
5 IGN 1
6 Battery (+)
Connector B NO Description
G16774939Courtesy of HYUNDAI MOTOR AMERICA
 1 TRD (+)
2 TRD (-)
