Neutralization mode

If you re-use IAU or IBU to another vehicle, you should process Neutralization mode.

1. Connect the cable of diagnostic tools to the data link connector in driver side crash pad lower panel.

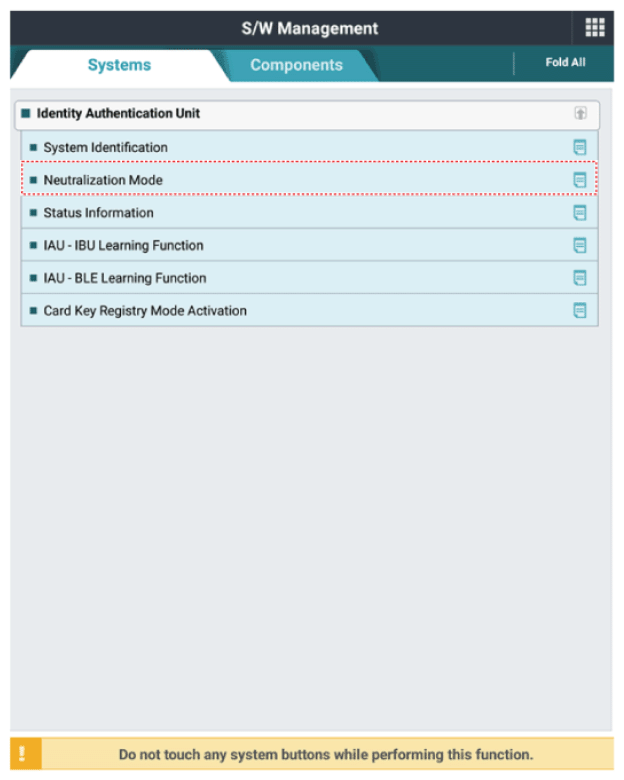

2. Select the "S/W Management" and "Neutralization mode".

   Courtesy of HYUNDAI MOTOR AMERICA

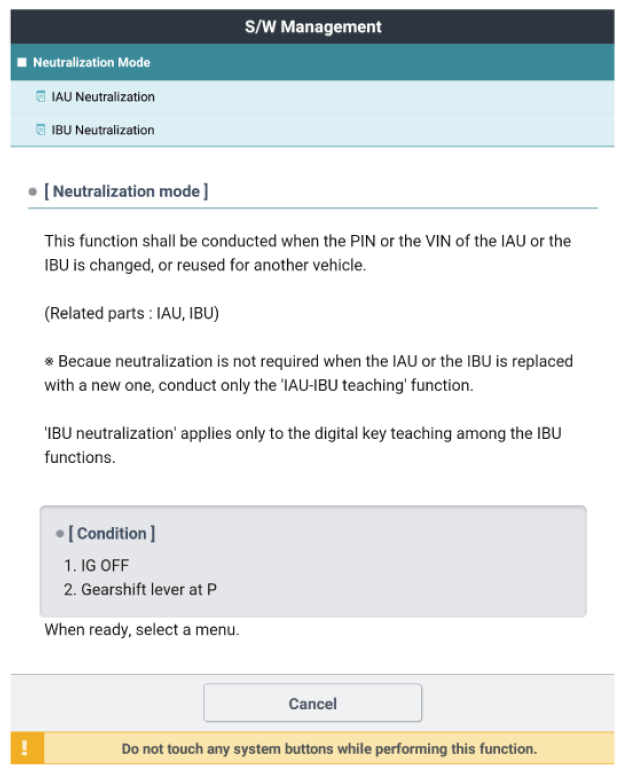

3. Choose one of 'IAU Neutralization' or 'IBU Neutralization'.

   Courtesy of HYUNDAI MOTOR AMERICA

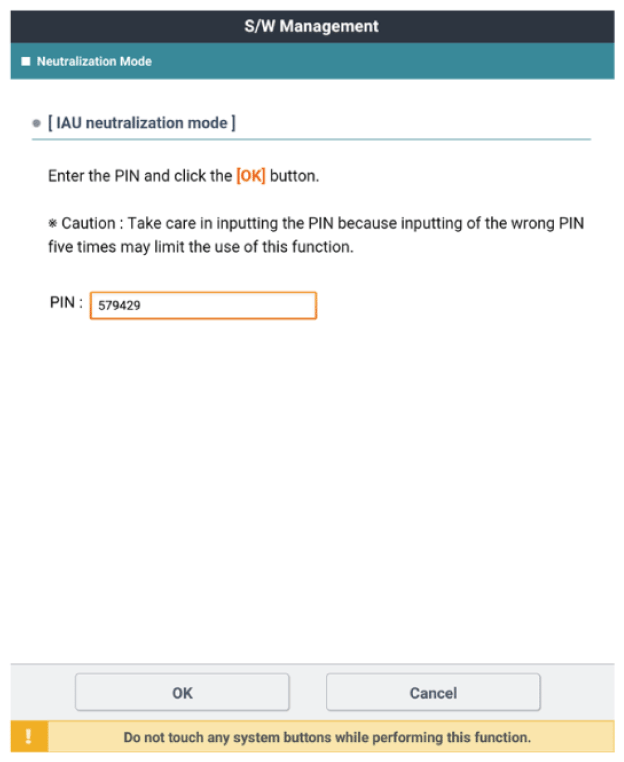

4. Enter the PIN code and VIN in order.

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • If you input bad passwords over 5 times, neutralization mode is prevented for 1 hour.
5. Neutralization mode is completed.
