Removal And Installation
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
- Using a remover, remove the steering column shroud upper panel (A).

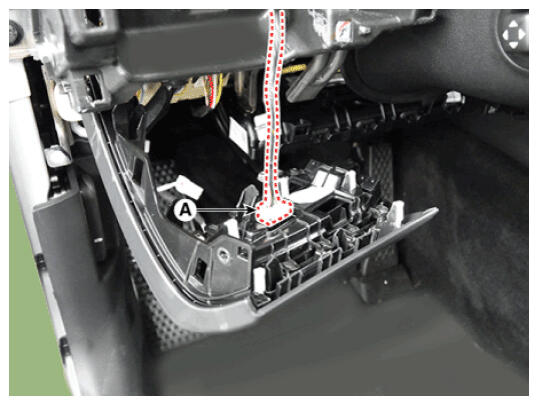

- Disconnect the EPB connector (A).
- Press the lock pin and separate the connector (A).
- Loosen the mounting screws and remove the bracket (A).
- Remove the ESC OFF switch (A) after loosening the screws.
- Install in the reverse order of removal.
