Components Location (2)

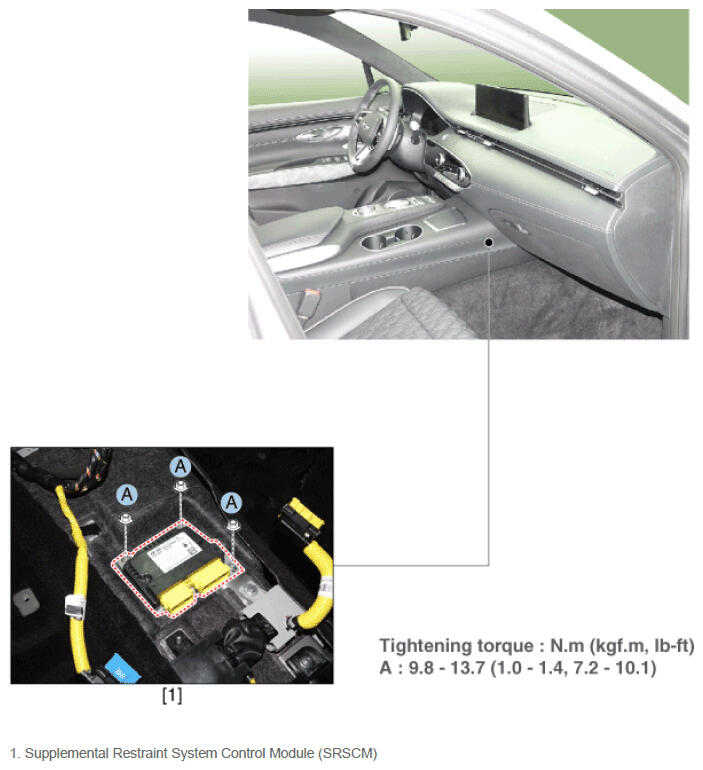

Fig 1: SRS Control Module Components Location With Torque Specifications
G16854829Courtesy of HYUNDAI MOTOR AMERICA
