Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

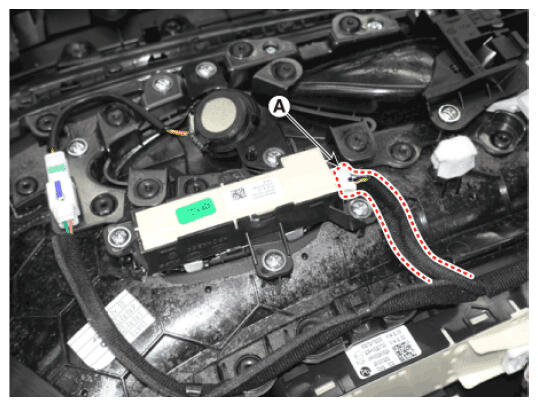

  3. Disconnect the memory power seat switch connector (A).
    G16855826Courtesy of HYUNDAI MOTOR AMERICA

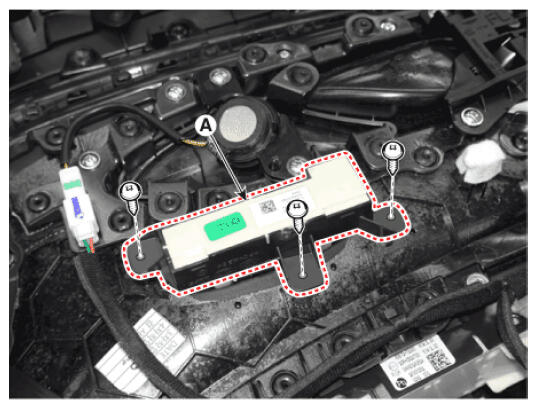

  4. Disconnect the IMS switch connector and then remove the IMS switch (A).
    G16855827Courtesy of HYUNDAI MOTOR AMERICA
