Removal And Installation

NOTE:
  • Install the component with the specified torques.
  • Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the engine cover.

    (Refer to Engine Mechanical System - "ENGINE COVER ")

  3. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the high pressure fuel pump.

    (Refer to Engine Control/Fuel System - "HIGH PRESSURE FUEL PUMP ")

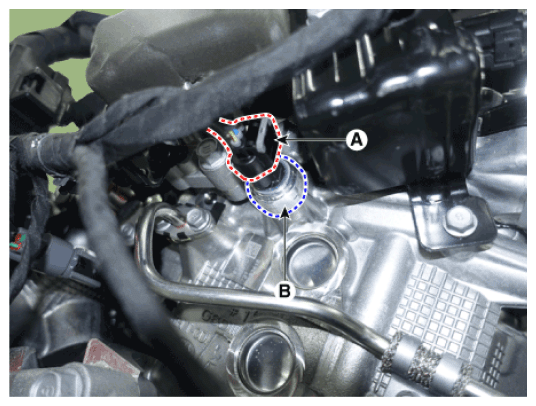

  5. Disconnector the oil pressure and oil temperature sensor connector (A).
  6. Remove the oil pressure and oil temperature sensor (B).
    NOTE:

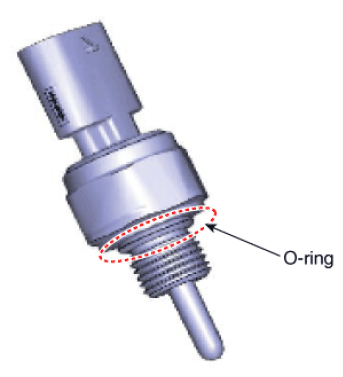

    • Check if O-ring remains inside the oil pressure & temperature sensor when removing the OPTS. (It is necessary to remove the O-ring)
    • If oil, coolant, foreign material is remaining in the connector of the OPTS, replace it with a new one.
      G16840653Courtesy of HYUNDAI MOTOR AMERICA

    Tightening torque  :

    31.4 ~ 38.2 N.m (3.2 ~ 3.9 kgf.m, 23.1 ~ 28.2 lb-ft)

    G16840654Courtesy of HYUNDAI MOTOR AMERICA
  7. Install in the reverse order of removal.
