Fuse Box

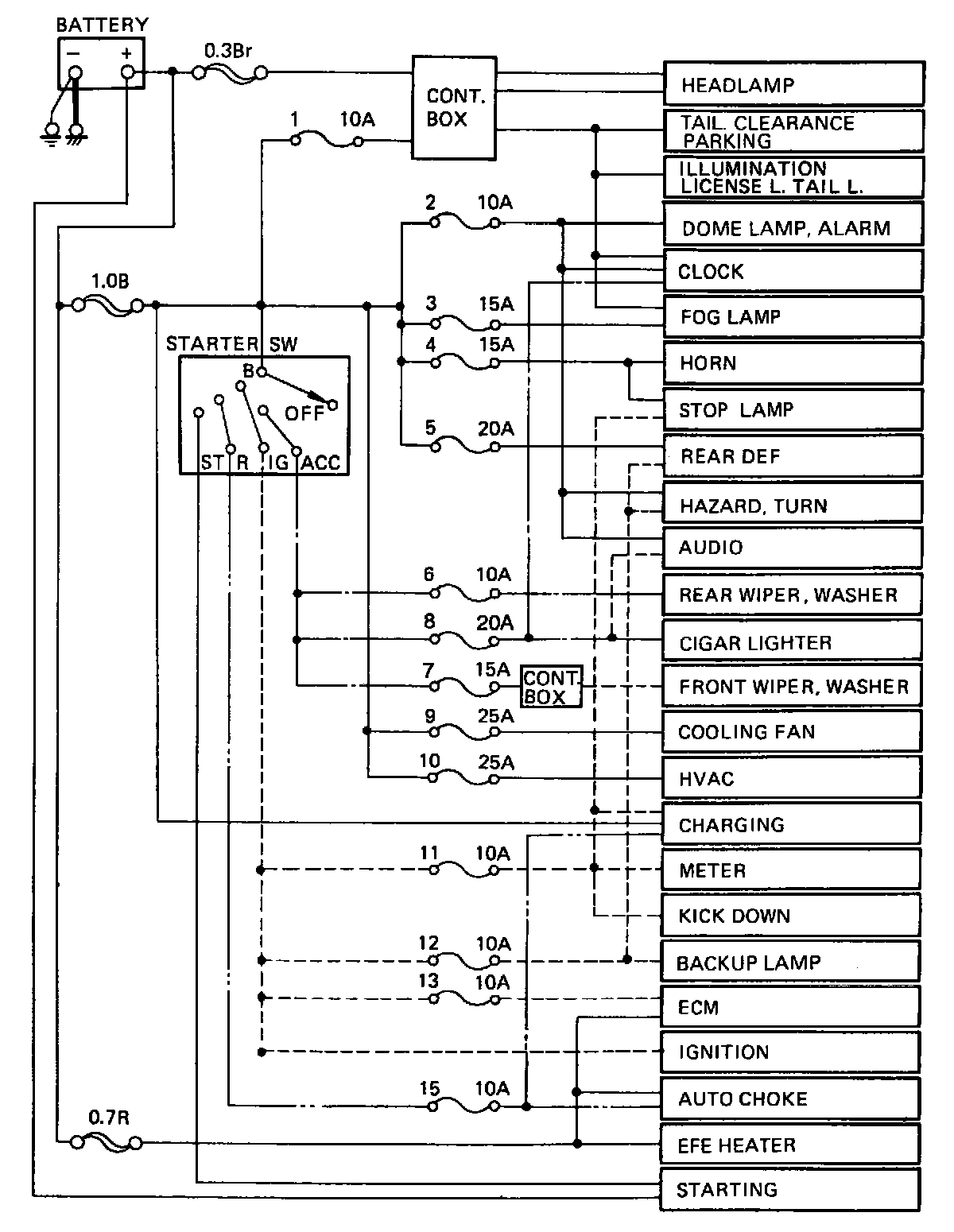

Fuse Block Circuitry:





Circuitry

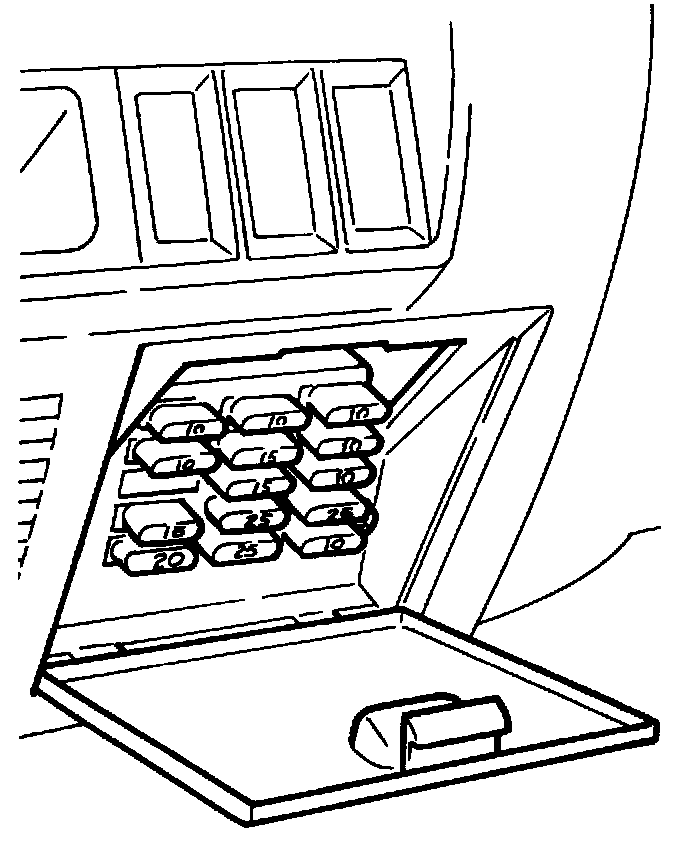

Fuse Block:





Location

Fusible Link Identification:





Fusible Link ID
