Frame & Body

Use designated lifting points as shown in illustrations. See Fig 1-Fig 4 .

Fig 1: Jacking & Hoisting Points (Metro) Courtesy of General Motors Corp.
G90B00704
Fig 2: Jacking & Hoisting Points (Prizm) Courtesy of General Motors Corp.
G90C00705

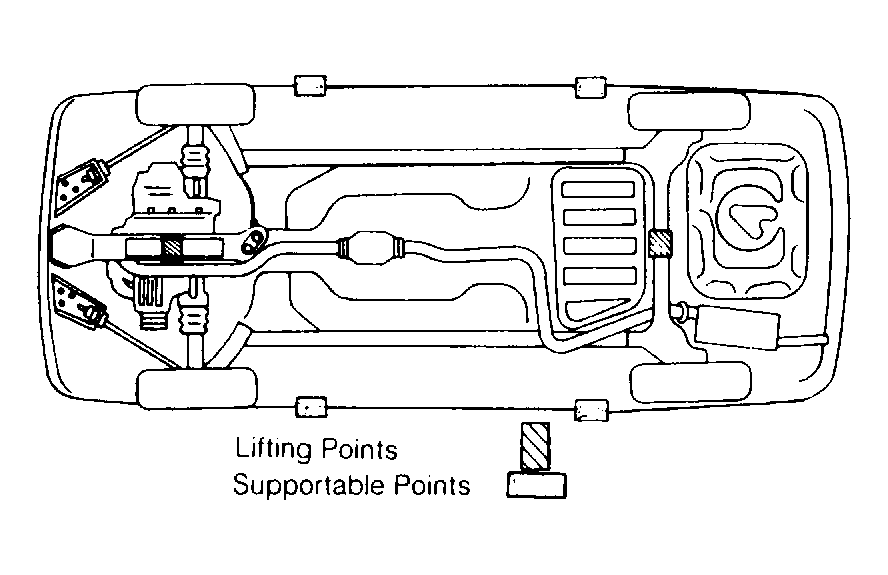

Fig 3: Jacking & Hoisting Points (Spectrum) Courtesy of General Motors Corp.
G90D00706
Fig 4: Jacking & Hoisting Points (Tracker) Courtesy of General Motors Corp.
G90E00707
