Pin Voltage Charts

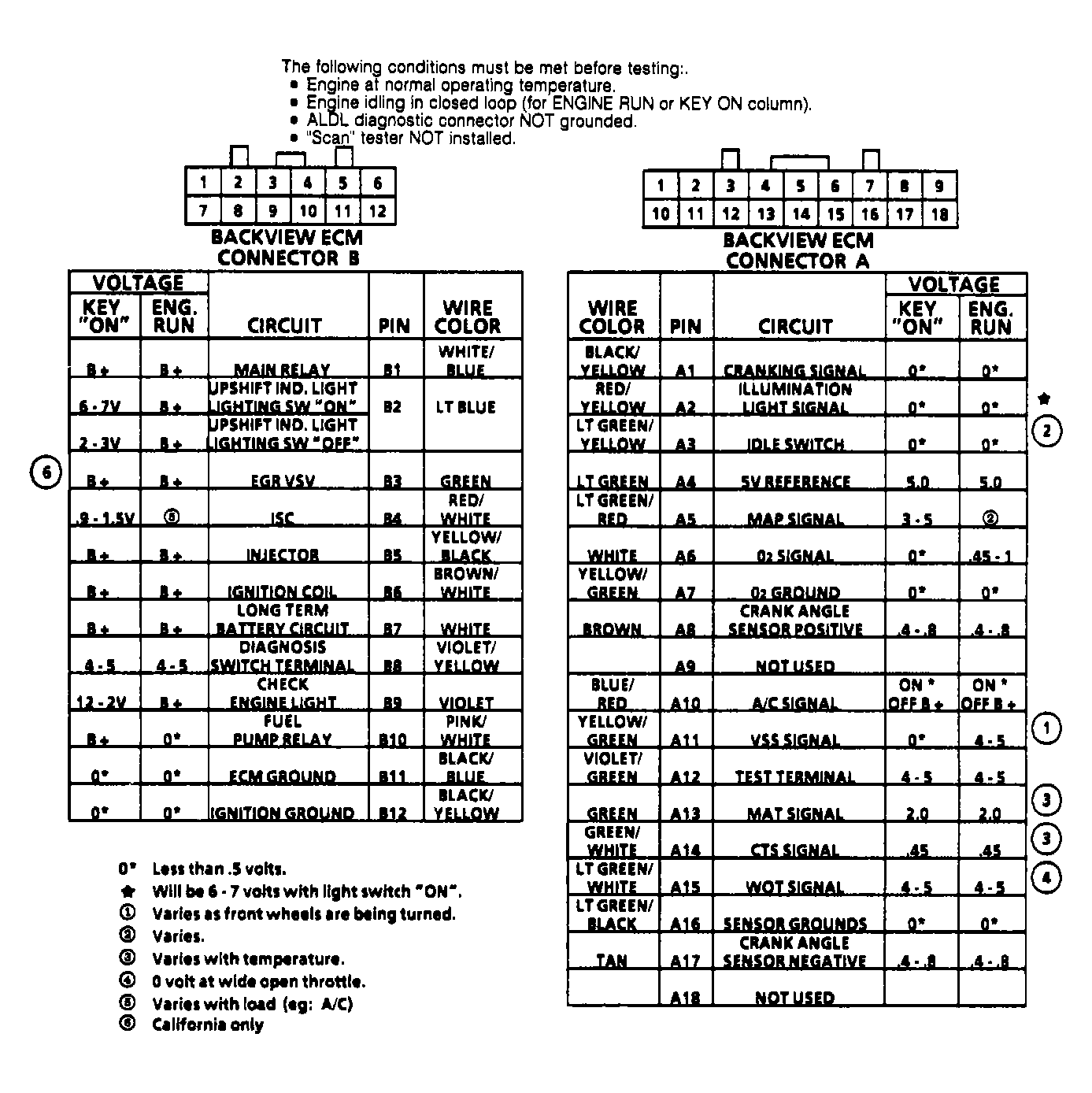

Fig 1: Checking ECM Terminal Pin Voltages (Metro With Conventional Ignition & A/T)
Courtesy of GENERAL MOTORS CORP.

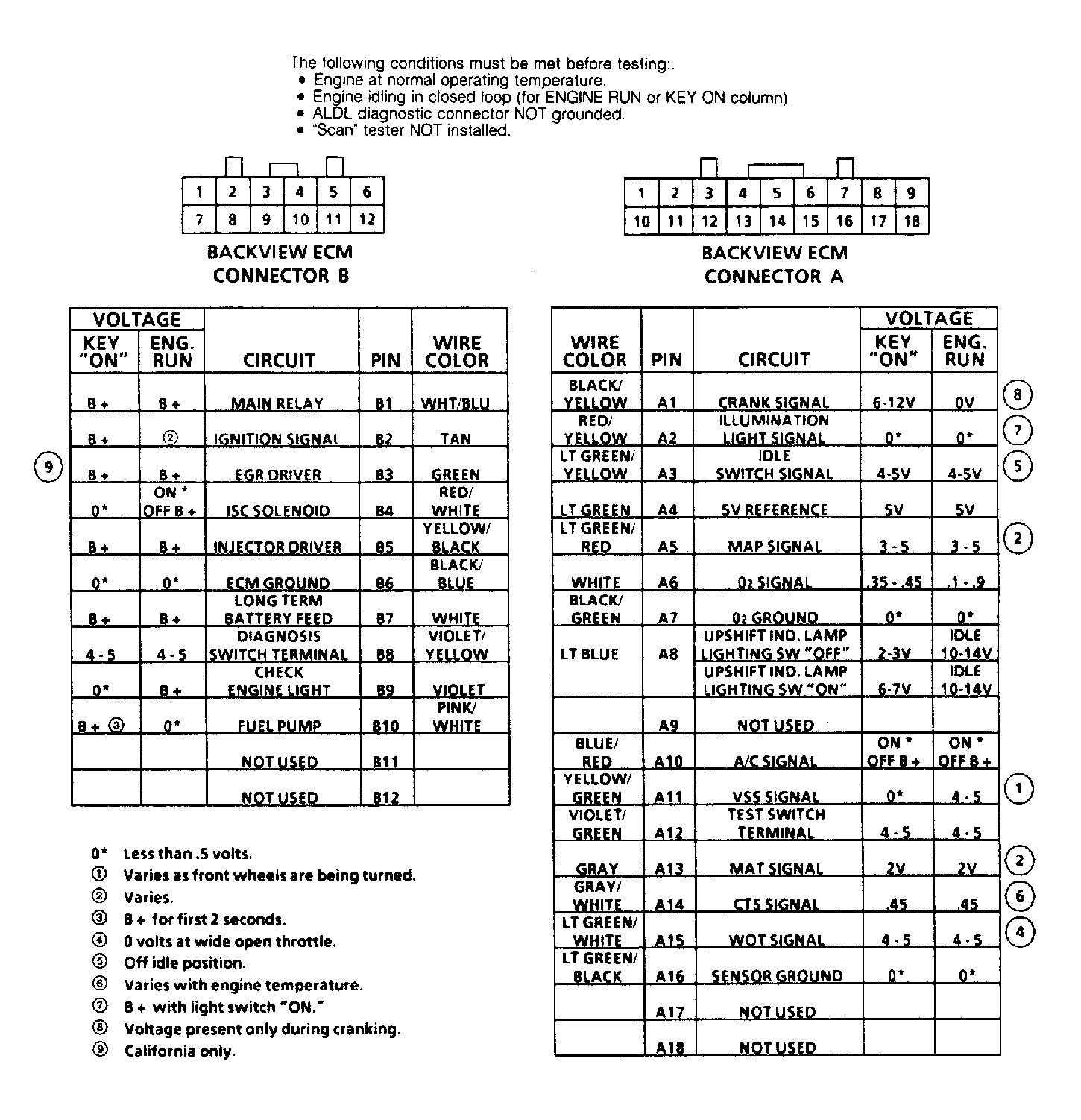

Fig 2: Checking ECM Terminal Pin Voltages (Metro With Conventional Ignition & M/T)
Courtesy of GENERAL MOTORS CORP.

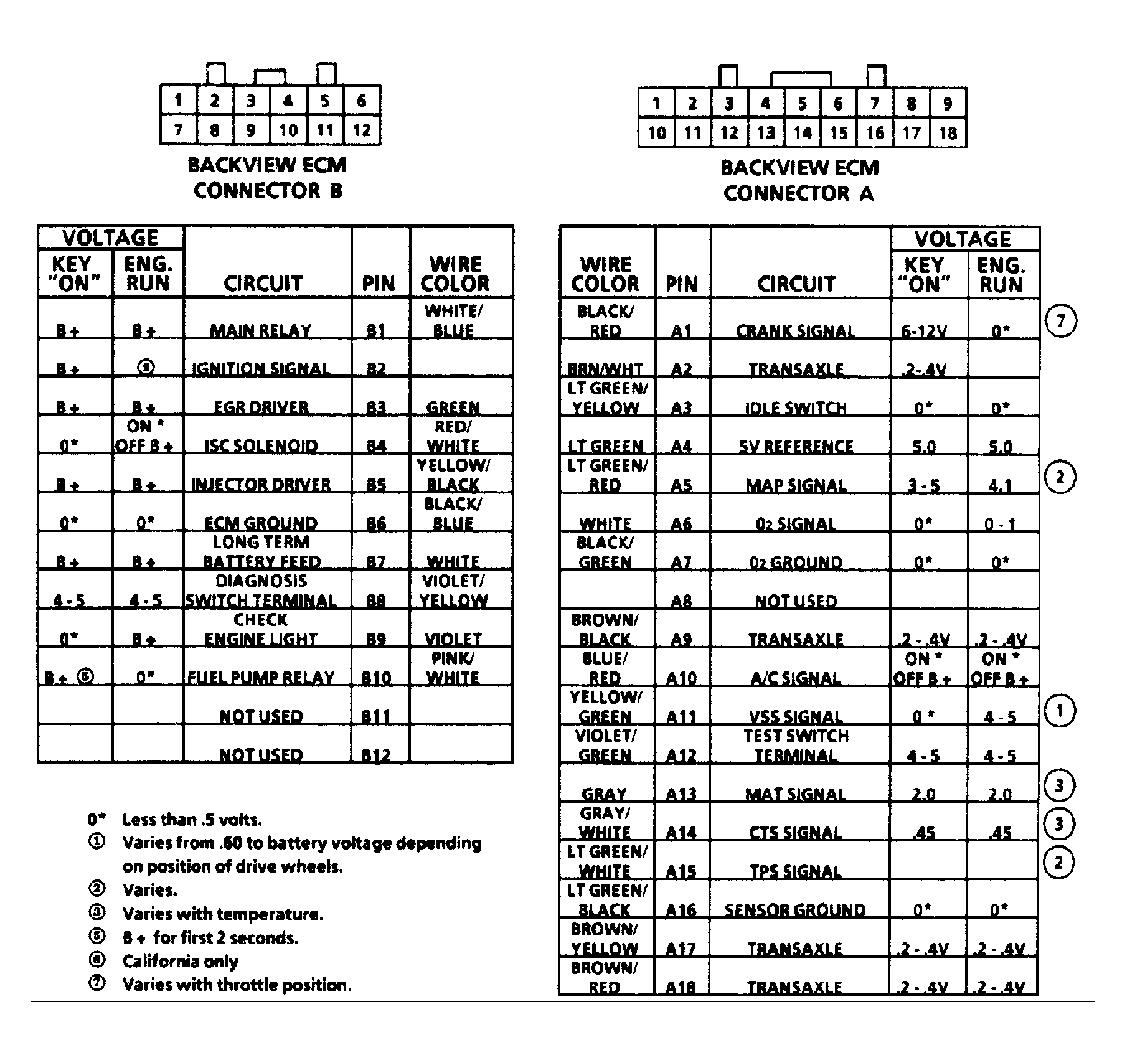

Fig 3: Checking ECM Terminal Pin Voltages (Metro With ESC Ignition & M/T)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
