Pin Voltages

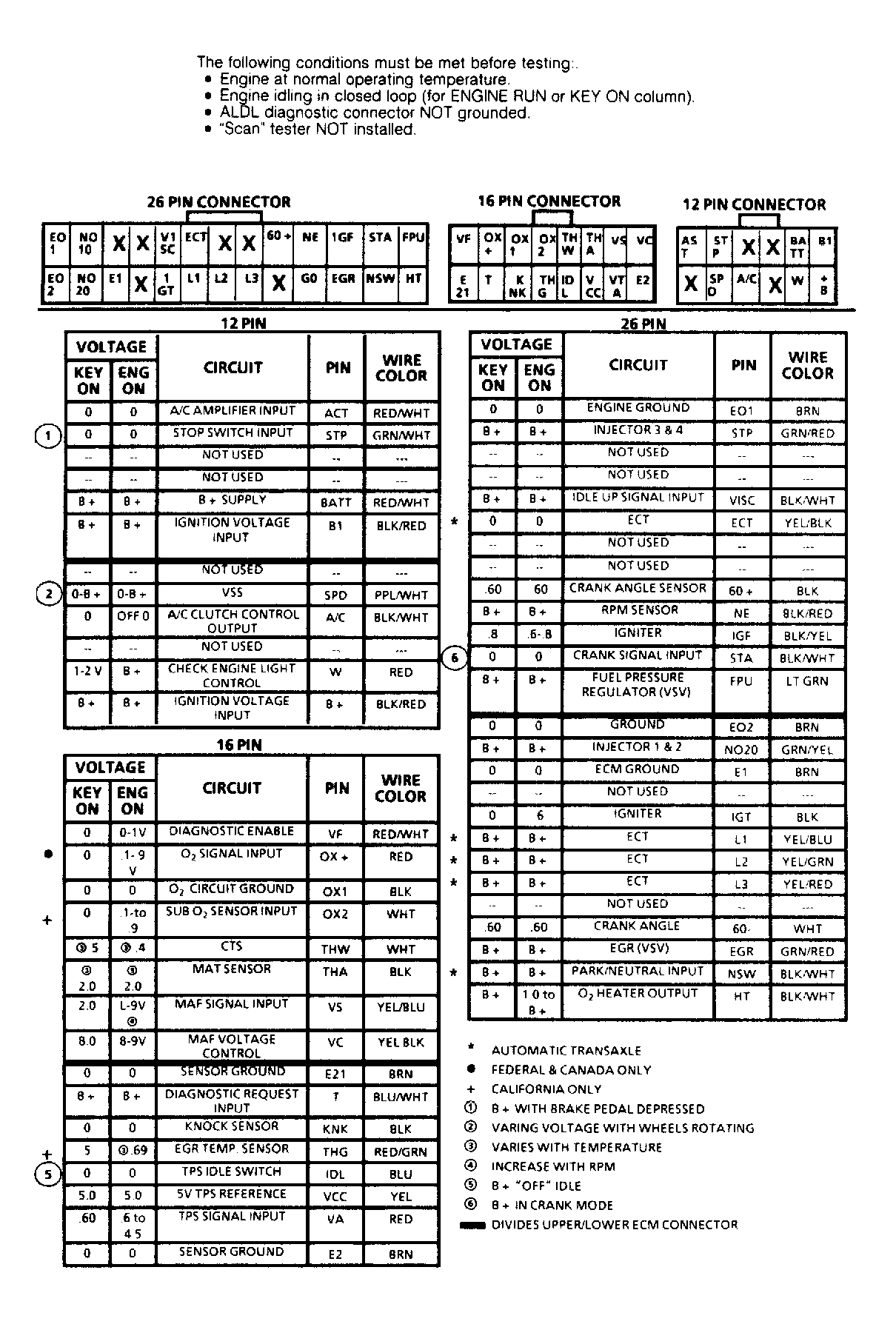

Fig 1: Checking ECM Terminal Pin Voltages (Prizm GSi VIN 5)
G90F18635Courtesy of GENERAL MOTORS CORP.

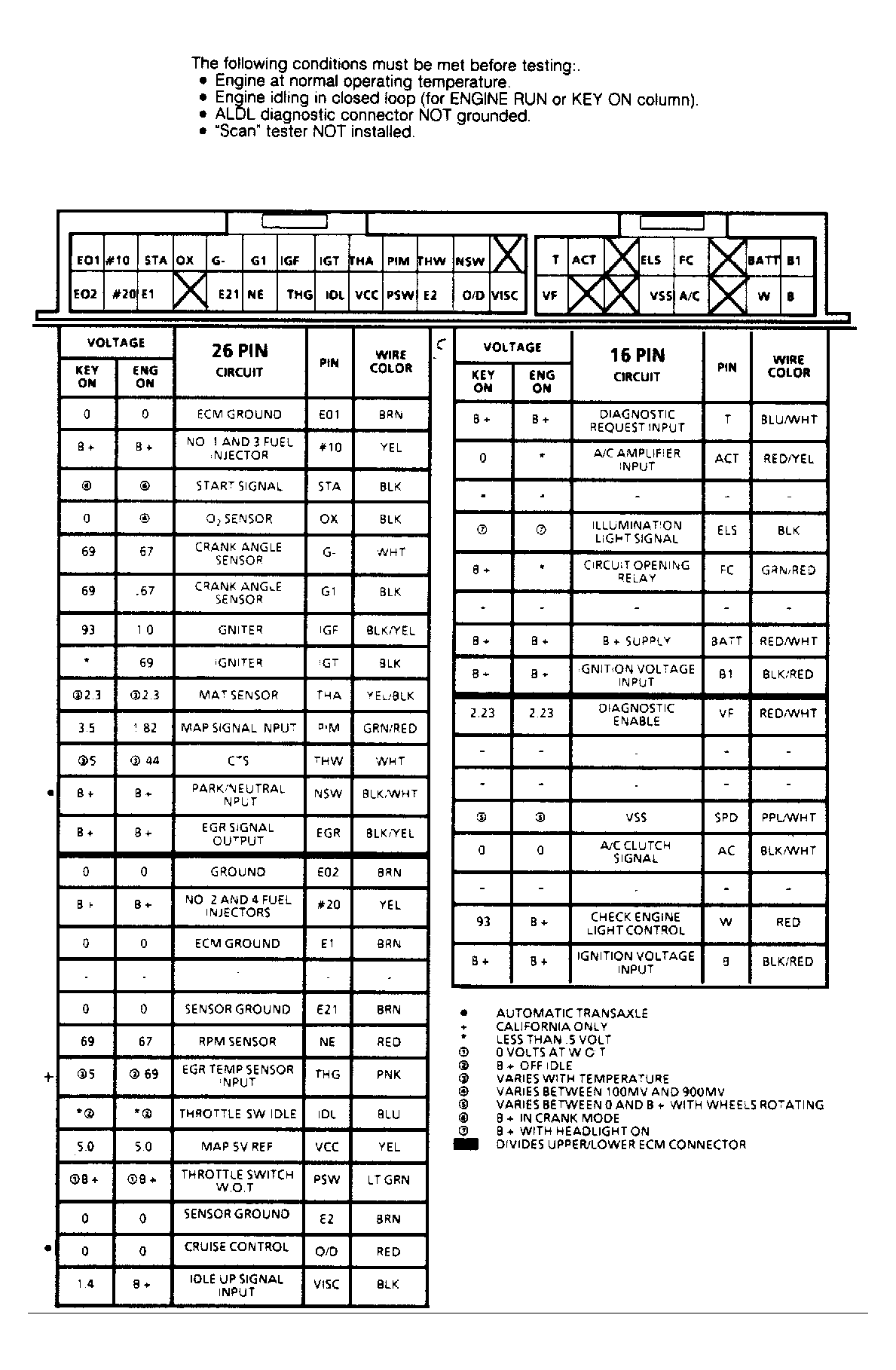

Fig 2: Checking ECM Terminal Pin Voltages (Prizm VIN 6)
G90G18636Courtesy of GENERAL MOTORS CORP.
