Compressor HVAC
>>
System Diagram
>>
Compressor Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

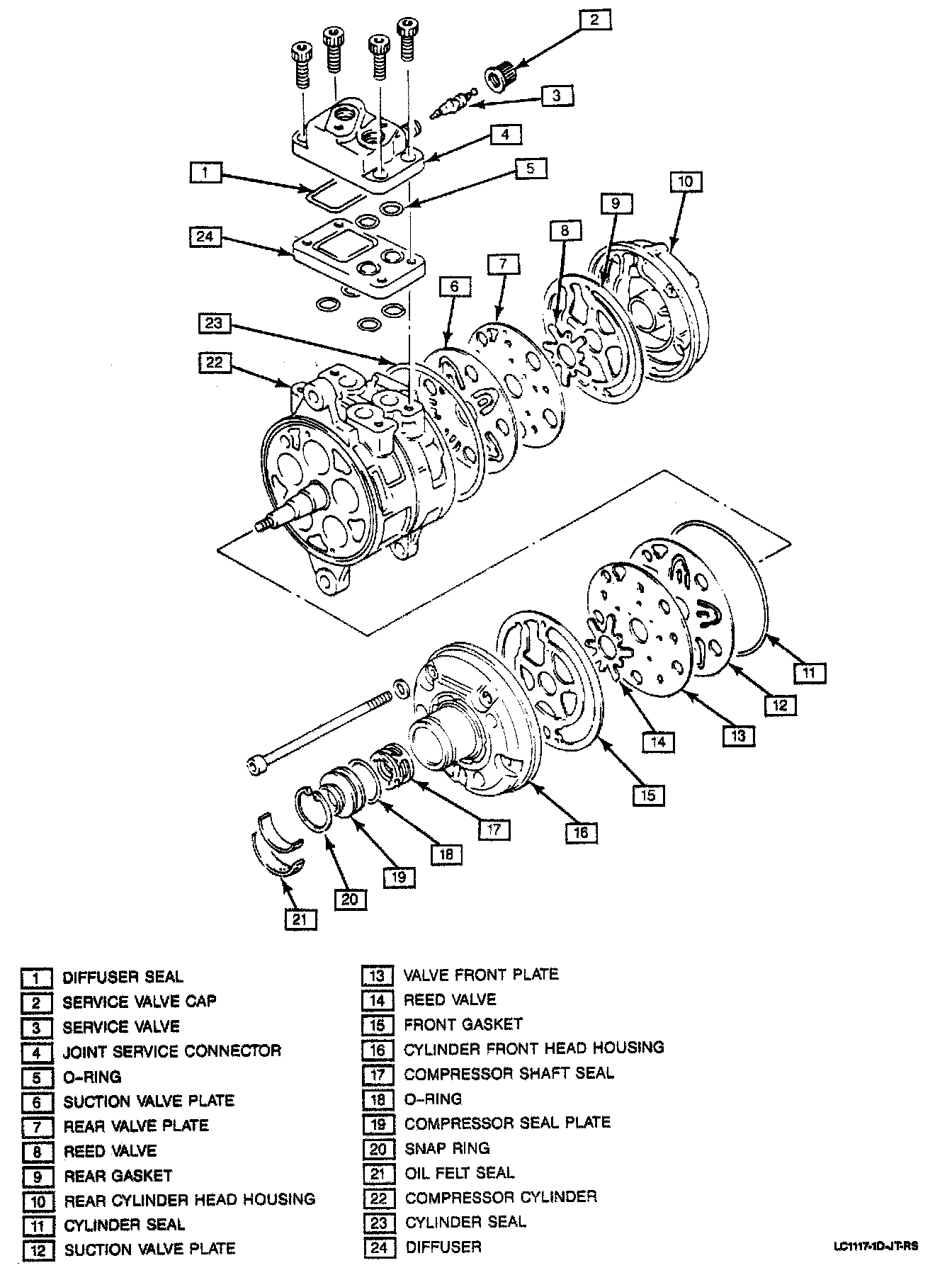

Compressor Components
