Automatic Transaxle

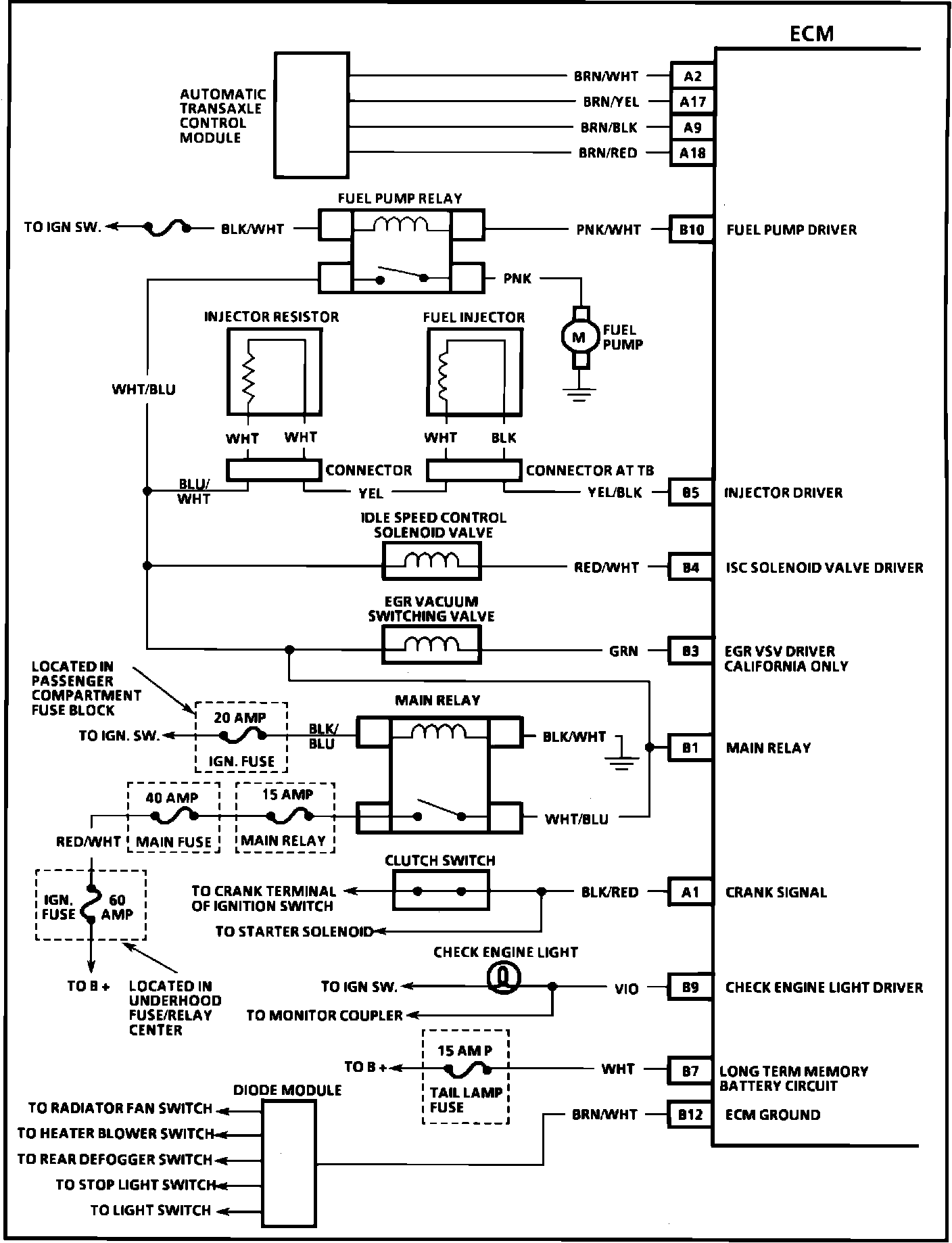

Driveability And Emissions - Metro LSI W/Automatic Transaxle:

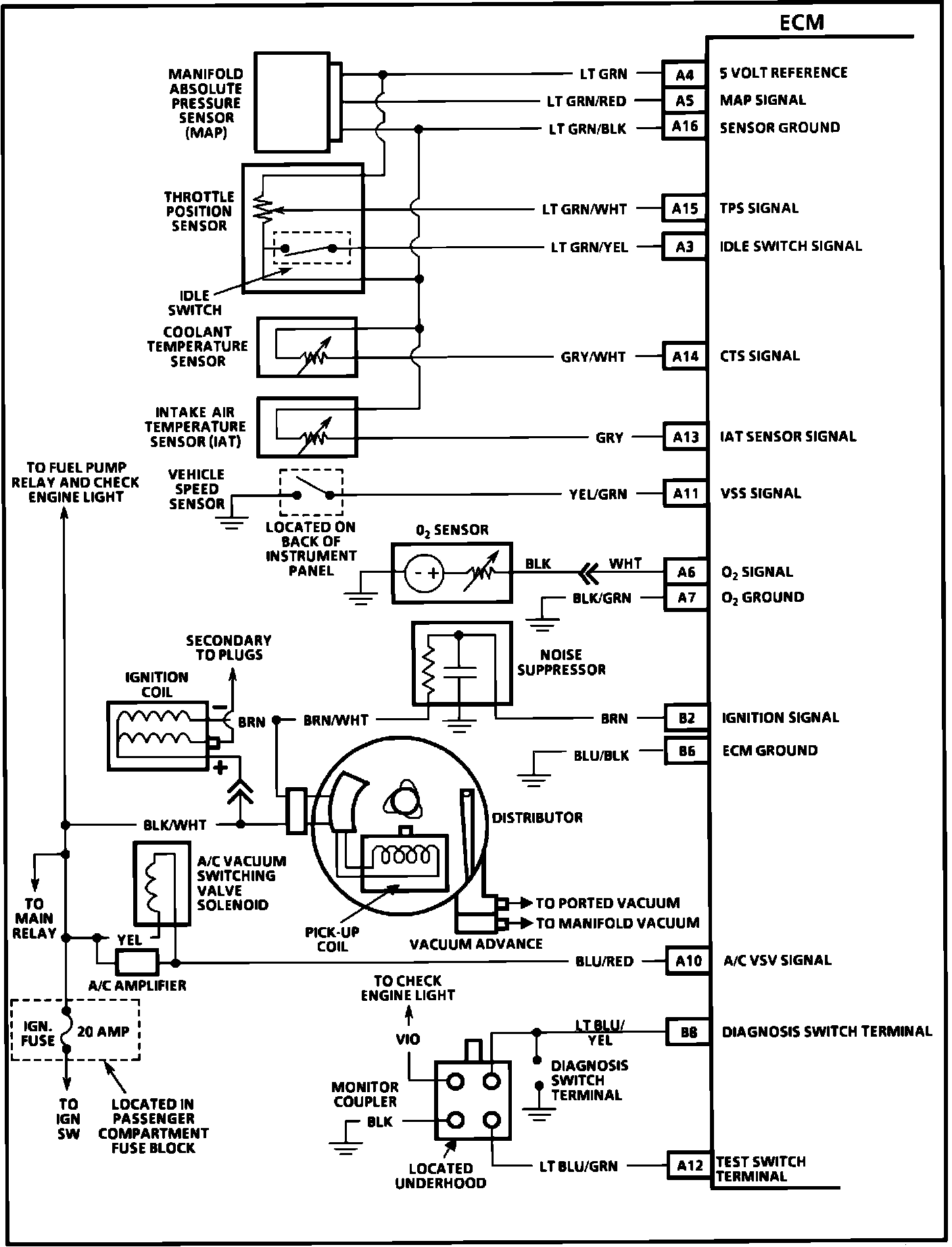

Driveability And Emissions - Metro LSI W/Automatic Transaxle:
