XFI

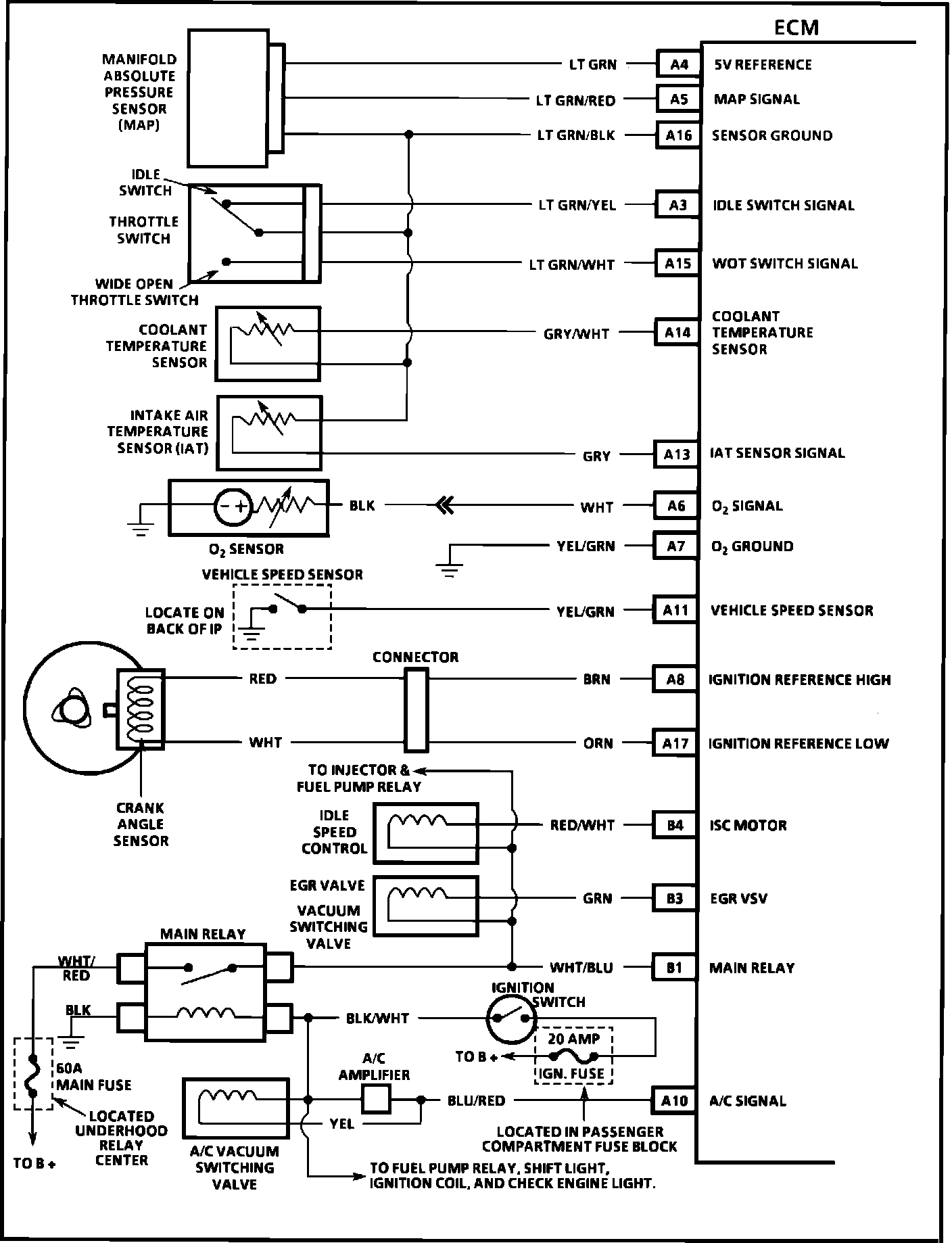

Driveability And Emissions - Metro XFI W/Manual Transaxle:

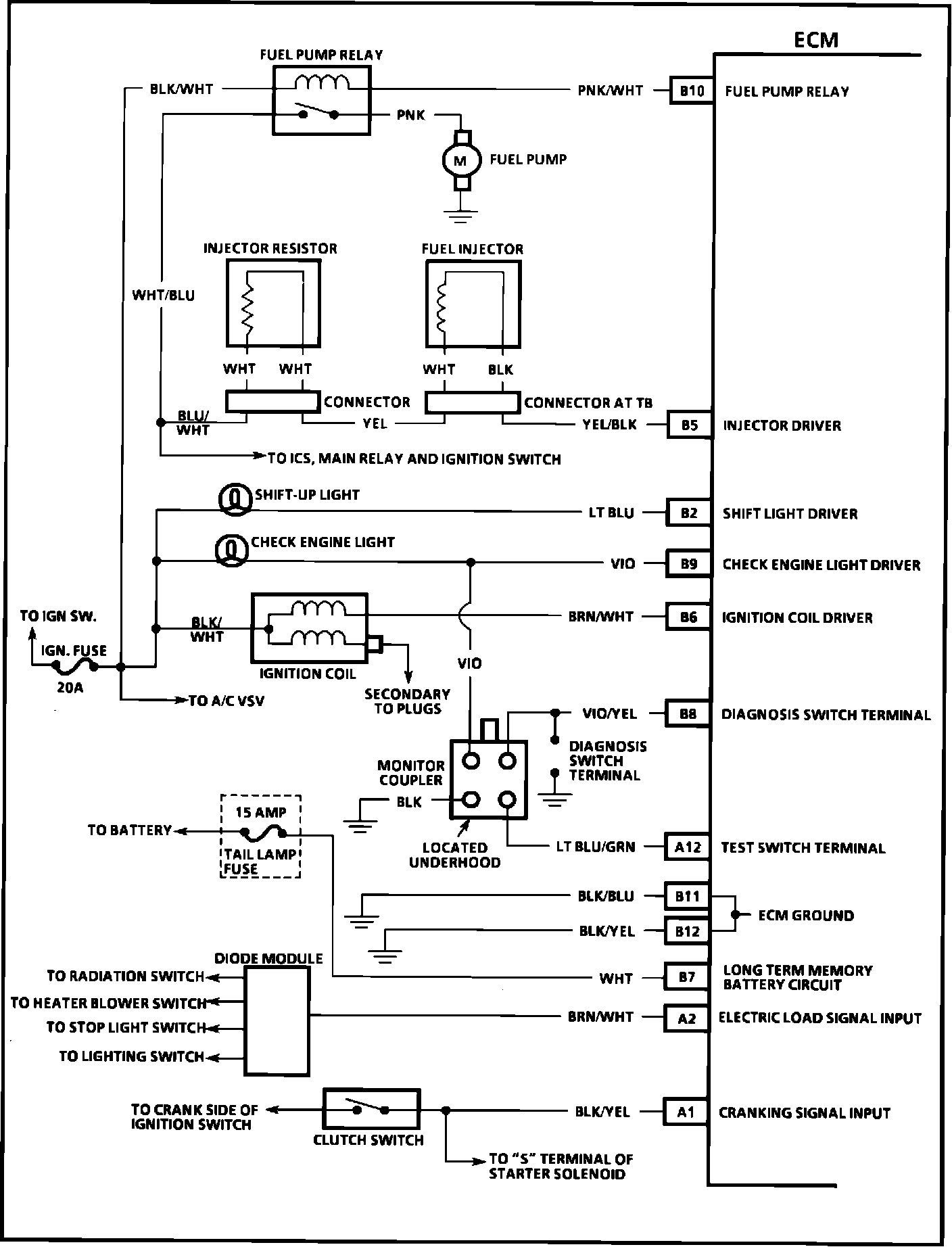

Driveability And Emissions - Metro XFI W/Manual Transaxle:
