Neutral Safety Switch: Locations

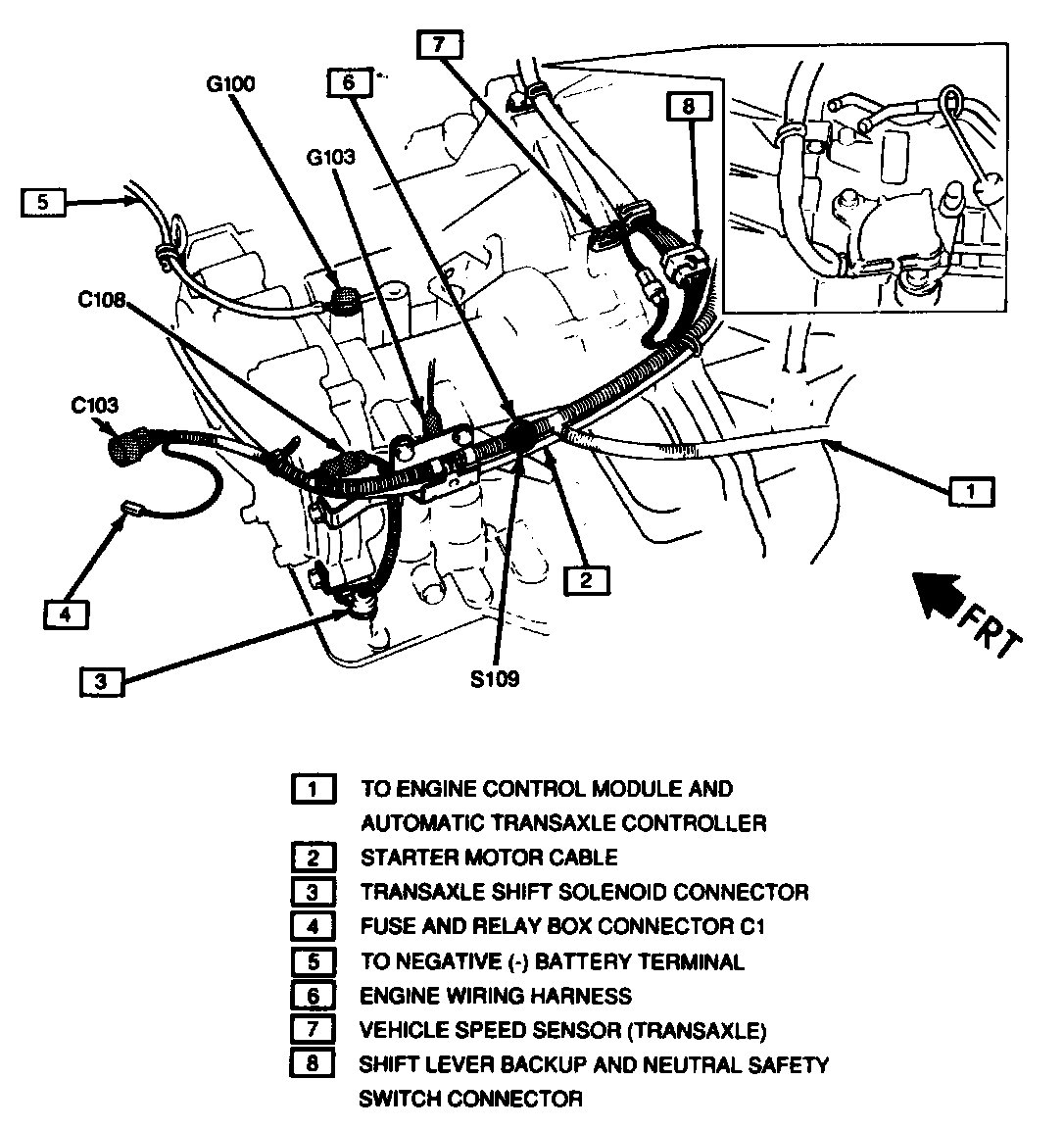

The automatic transaxle uses a combination Neutral Safety Switch and Shift Lever Backup Switch. On the image it is shown as number 8.
The Manual transaxle uses the clutch start switch instead of a Neutral Safety Switch.
