Alternator & Regulator: Description

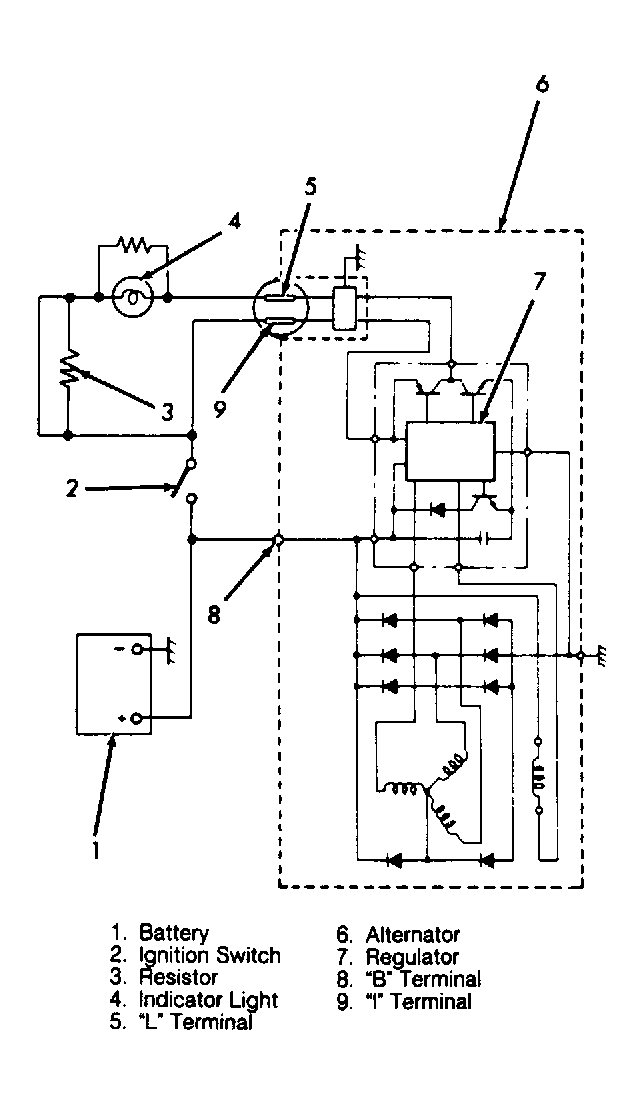

A Delco-Remy internal regulator alternator is used on Storm and Storm GSi models. Alternator is non-serviceable and must be replaced if defective. The alternator uses only 2 connections, battery positive "+" and terminal "L" connected to charge indicator bulb. See Fig 1.
