Automatic Transmission/Transaxle Controls

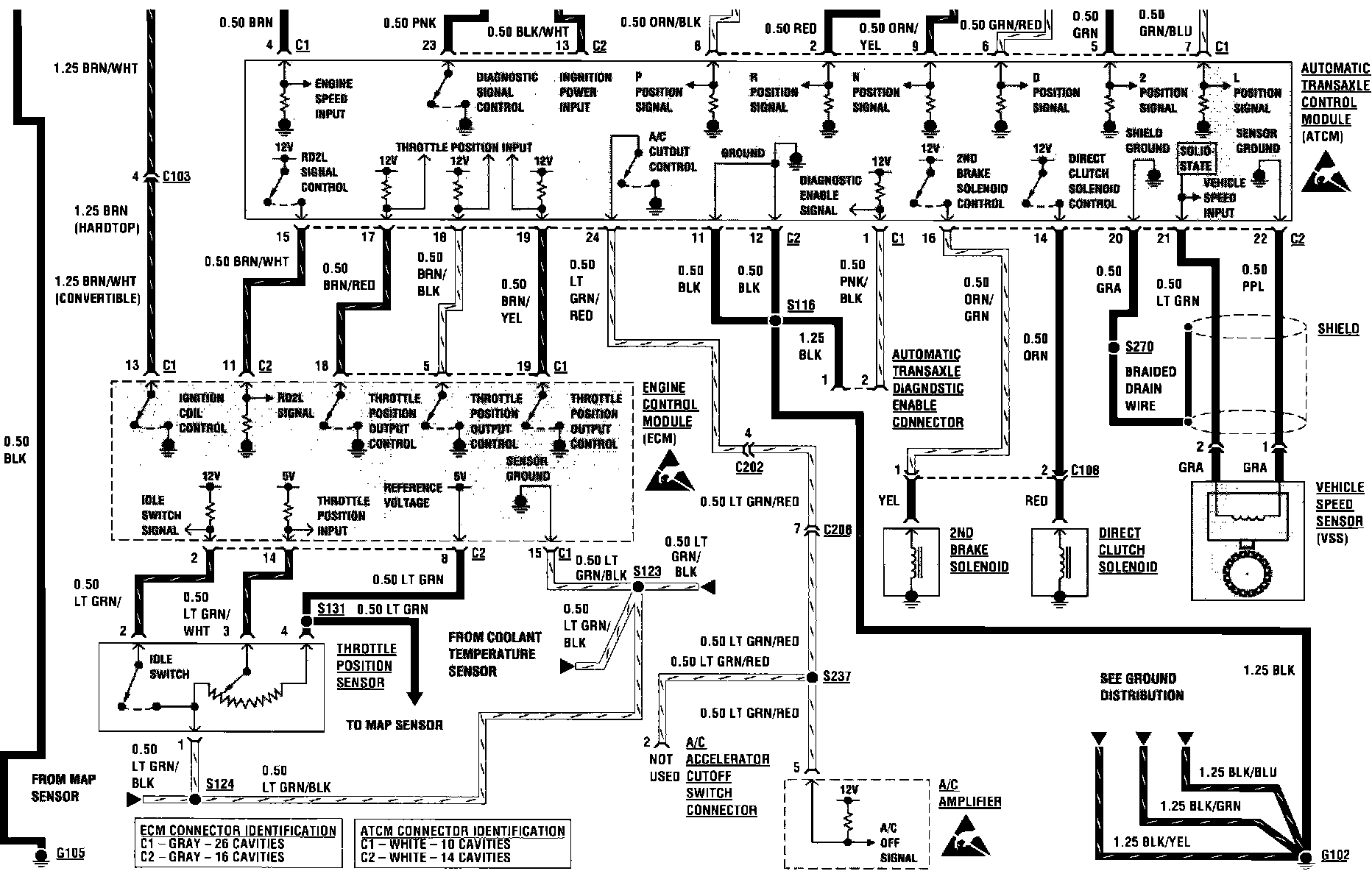

Automatic Transaxle Controls:

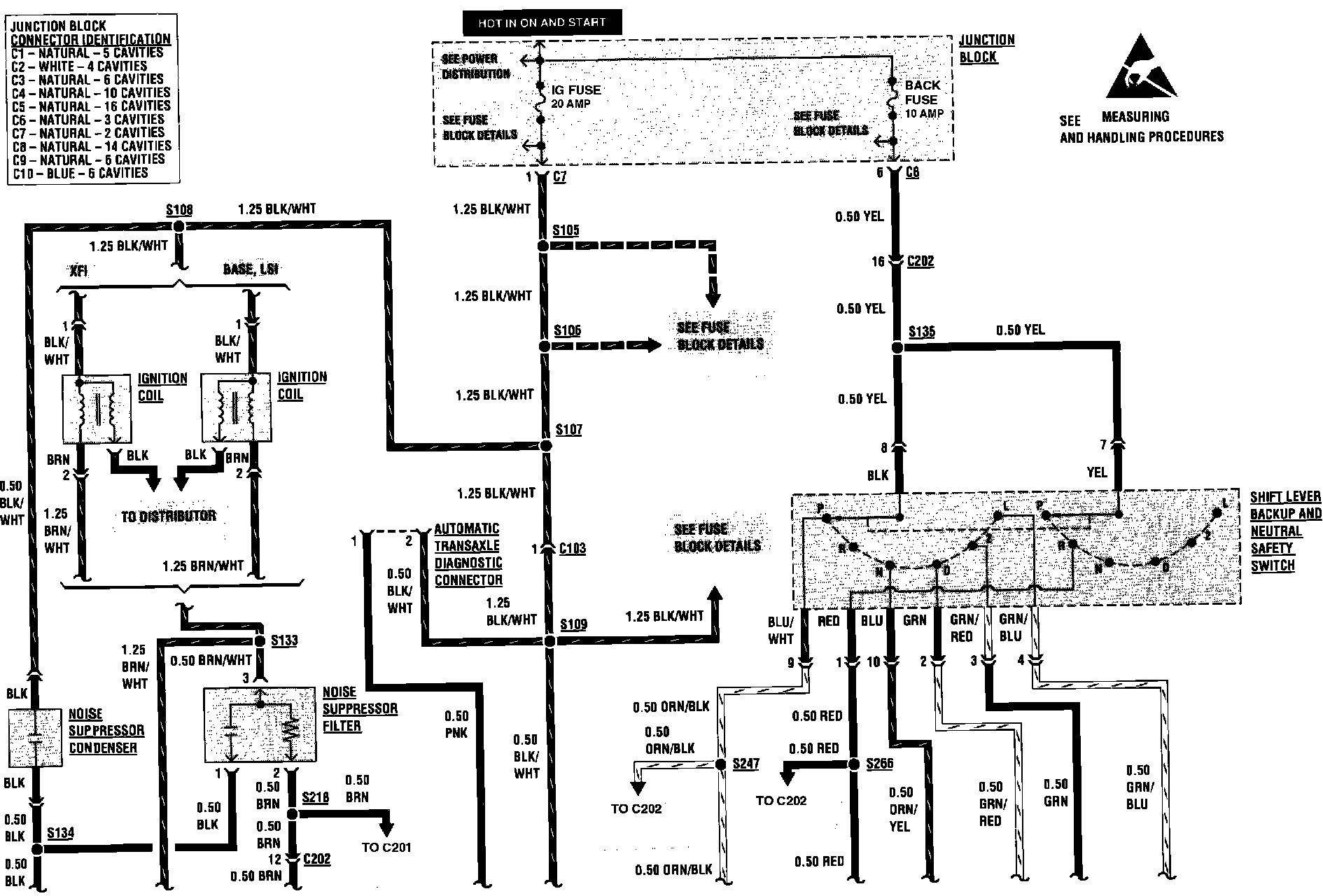

Automatic Transaxle Controls:
