System Tests: Notes
NOTE:
If system does not operating properly, perform POWER DOOR LOCK SYSTEM DIAGNOSIS

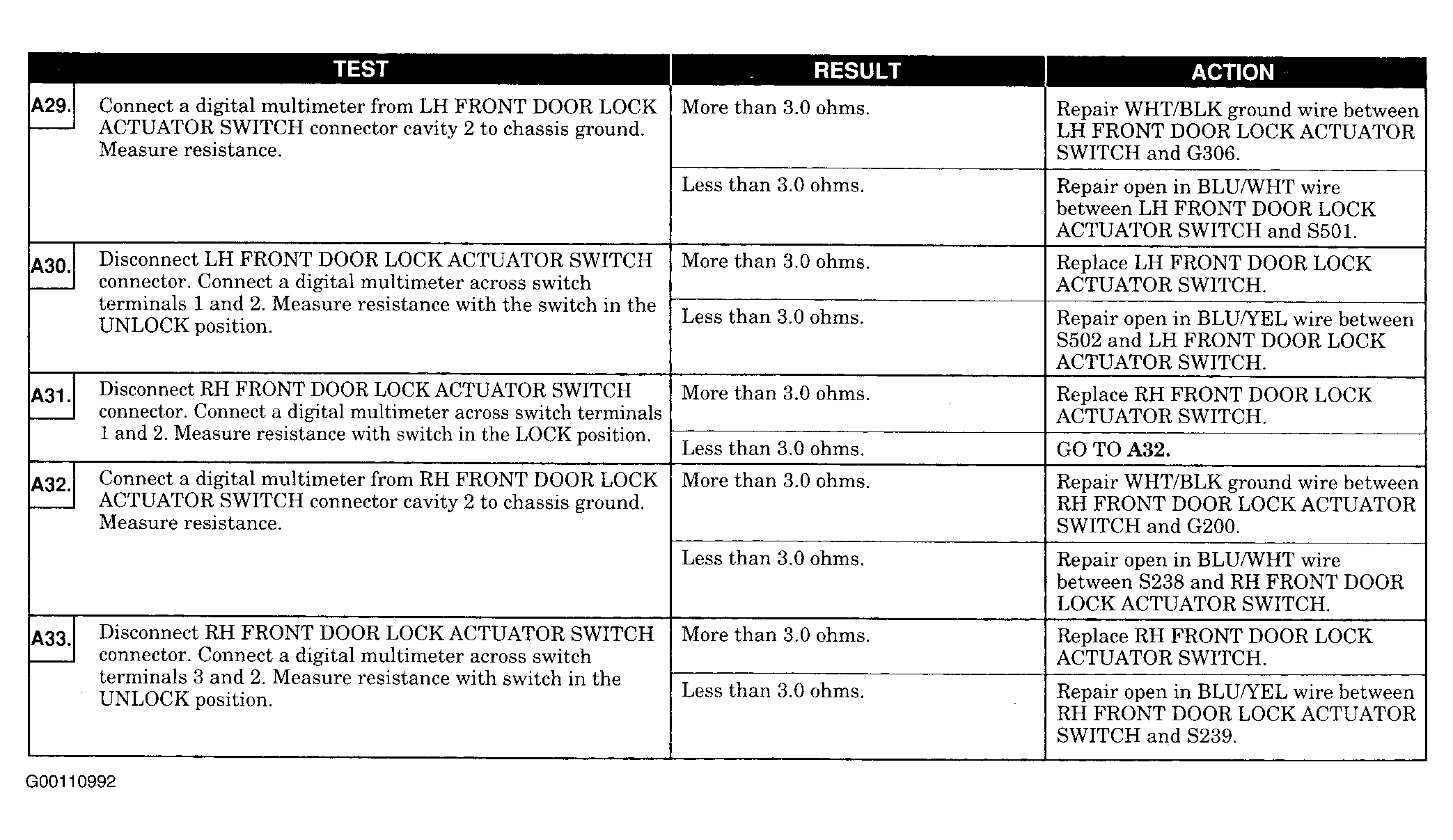

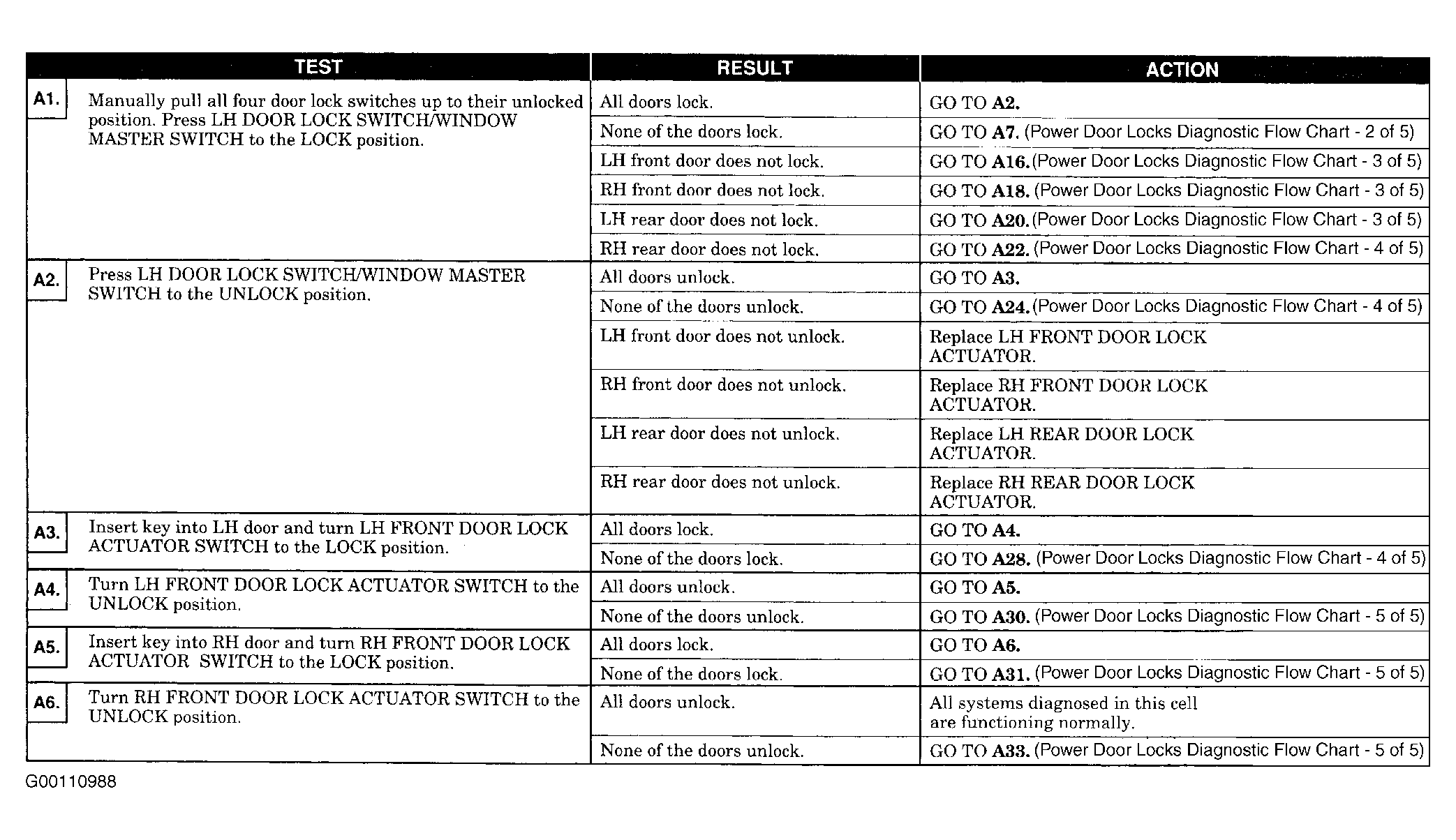

. See Figure
-Figure
. For connector terminal identification, see CONNECTOR IDENTIFICATION
. For wire color information, see WIRING DIAGRAMS
.
