Ignition Controls

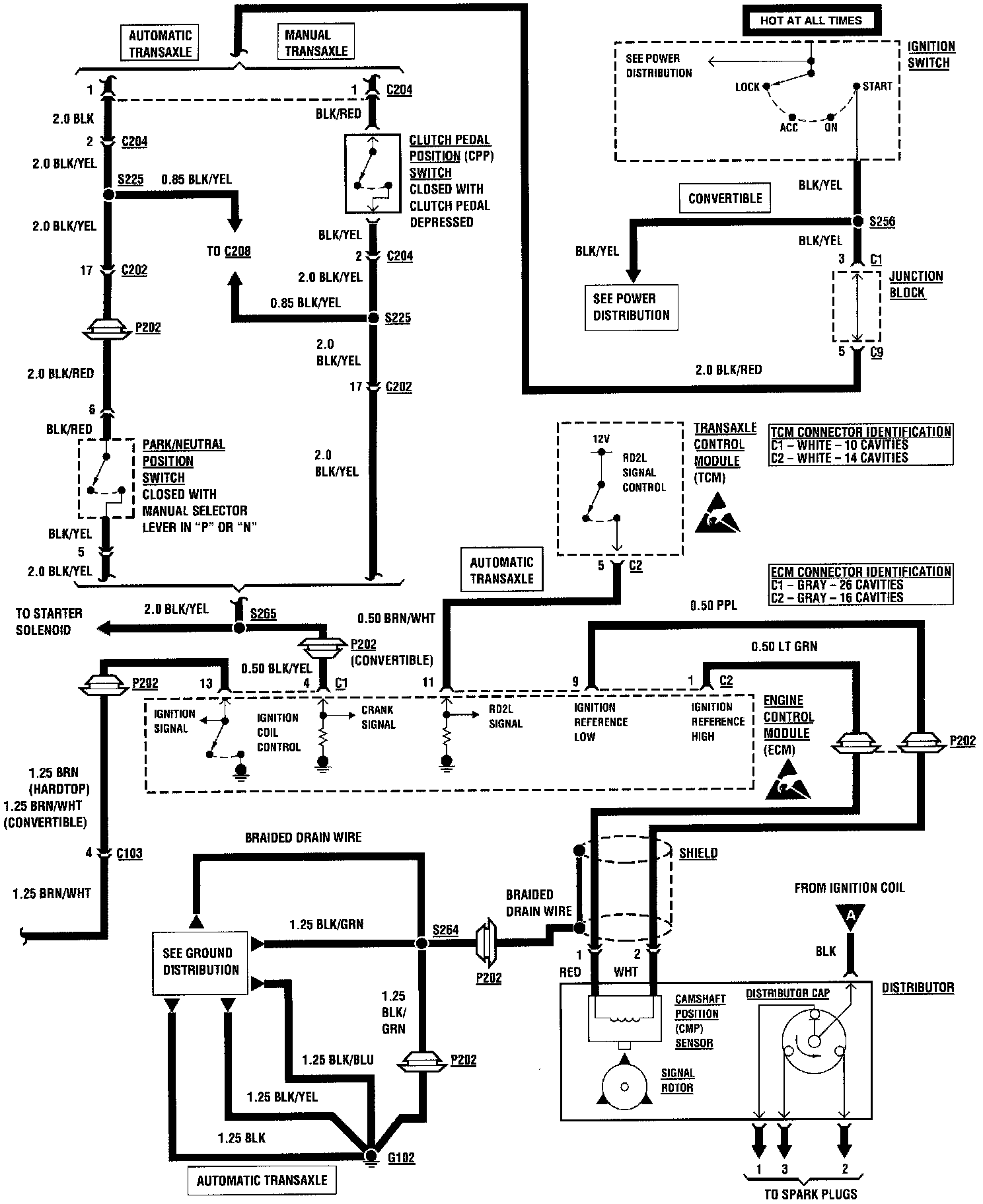

Engine Wiring Diagrams 93 Metro:

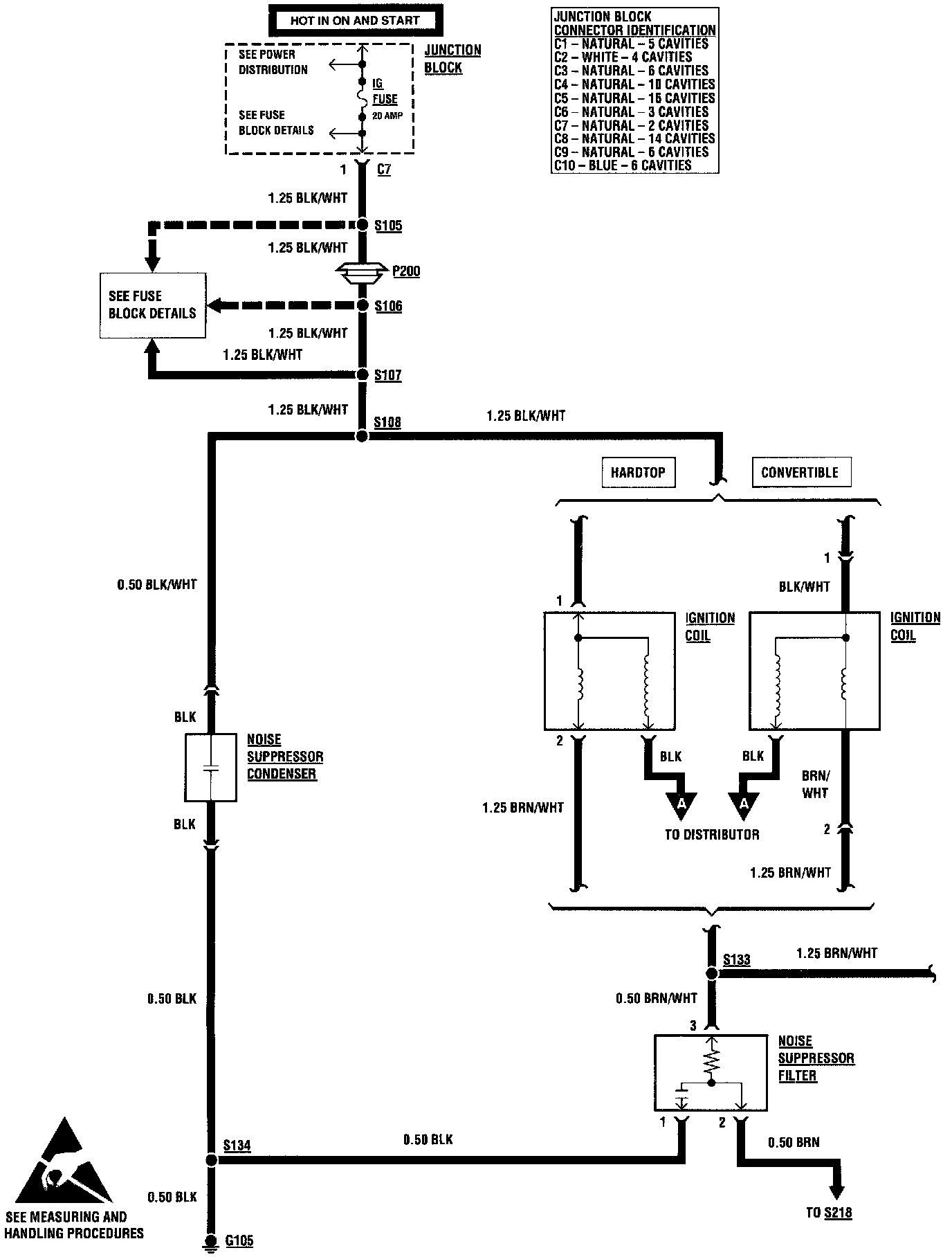

Engine Wiring Diagrams 93 Metro:

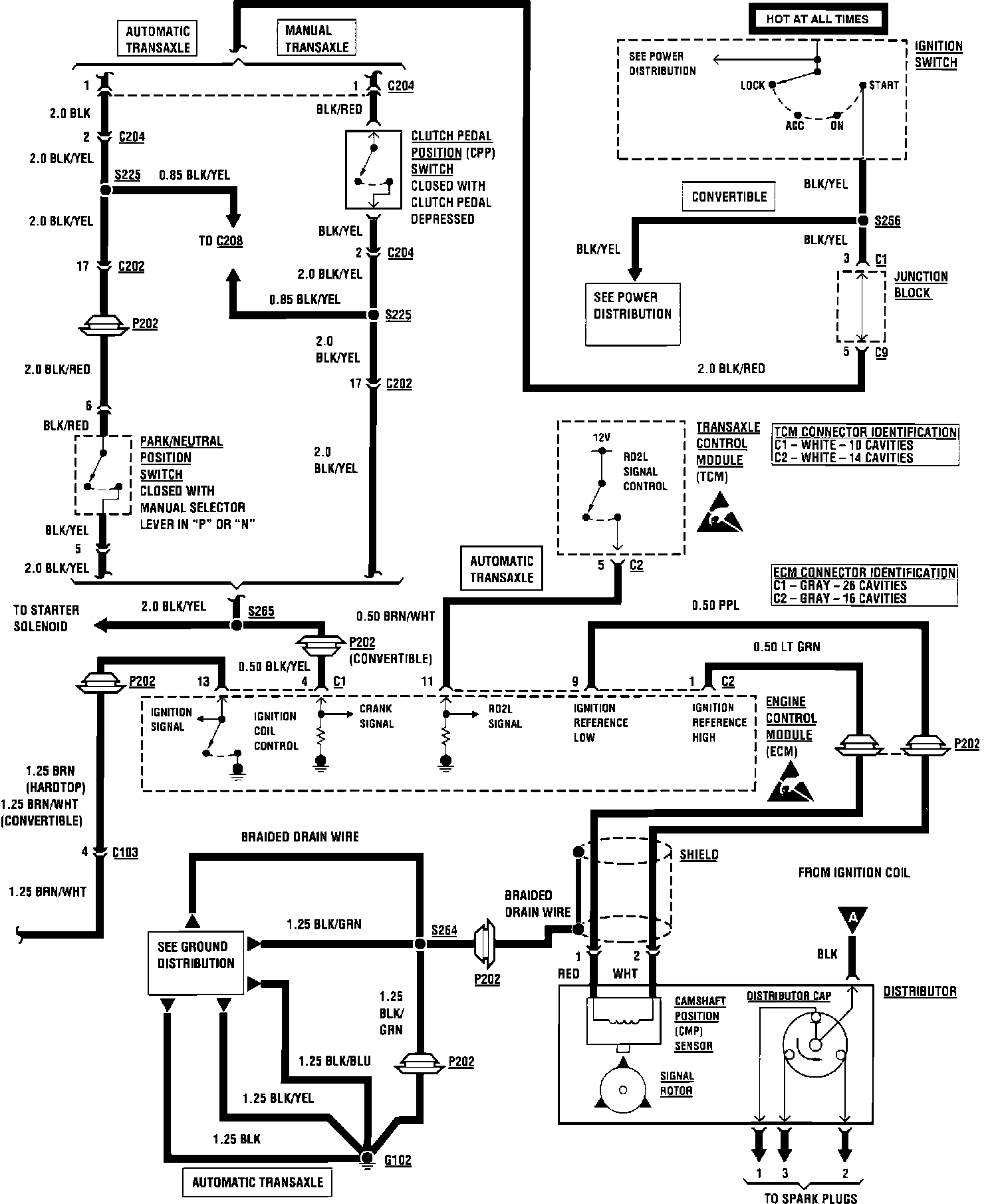

Engine Controls: Ignition:

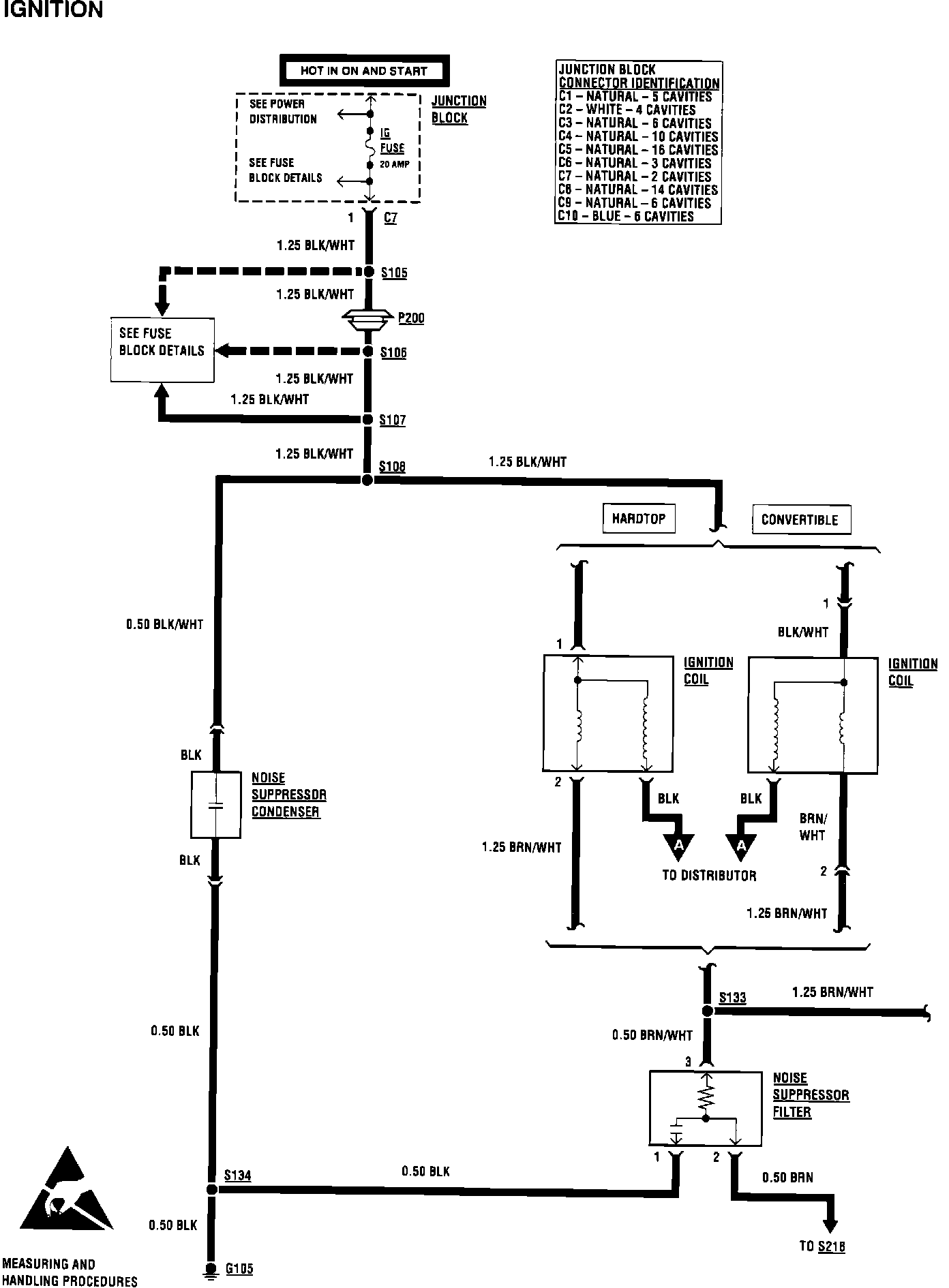

Engine Controls: Ignition Cont.:
