Chart D - Compressor Pressure Check

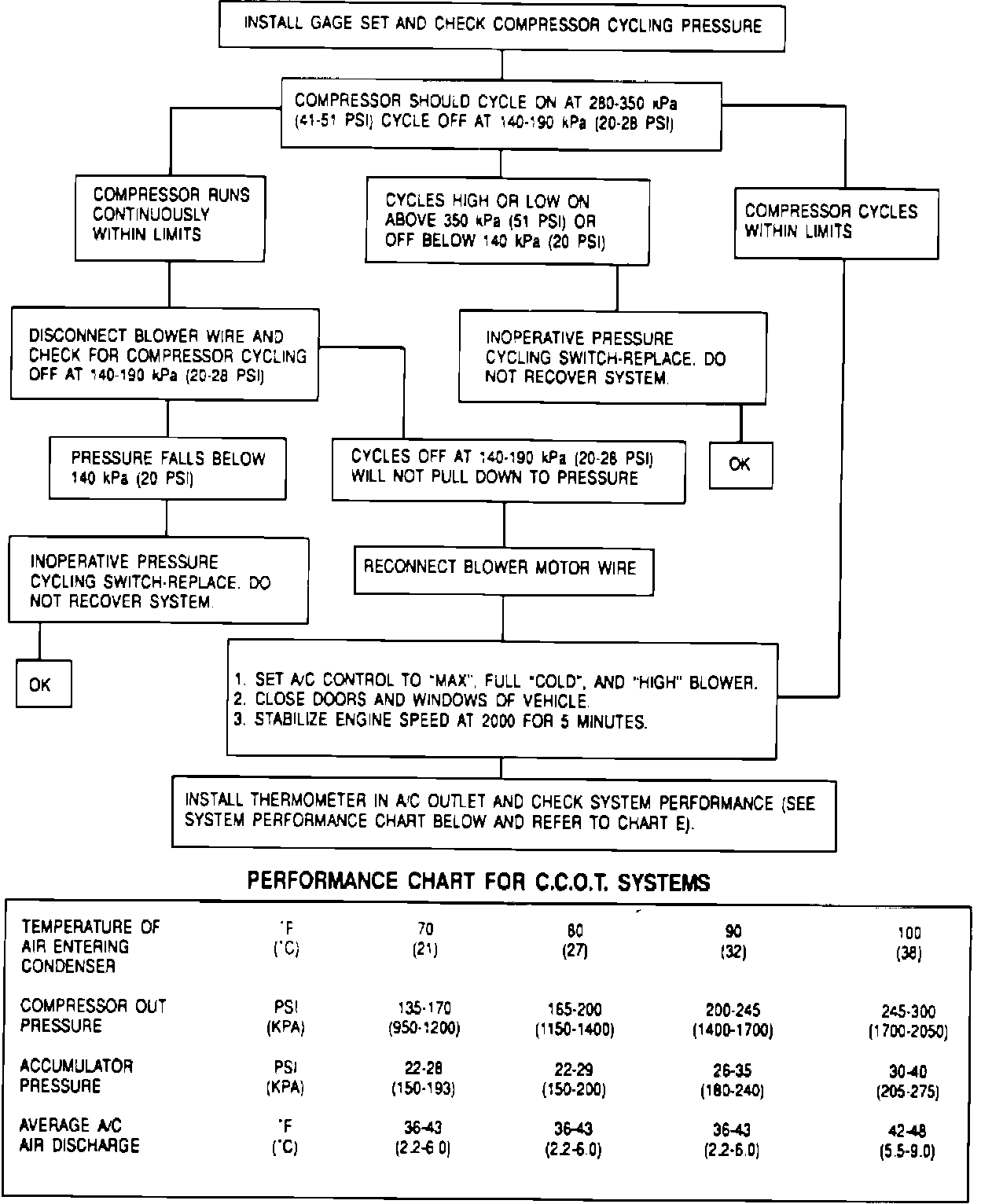

Fig 1. Troubleshooting Chart A Cycling Clutch Orifice Tube, Part 4 Of 5:
