Junction Block

Junction Block, Fuse Block Details

Junction Block, Bottom View:

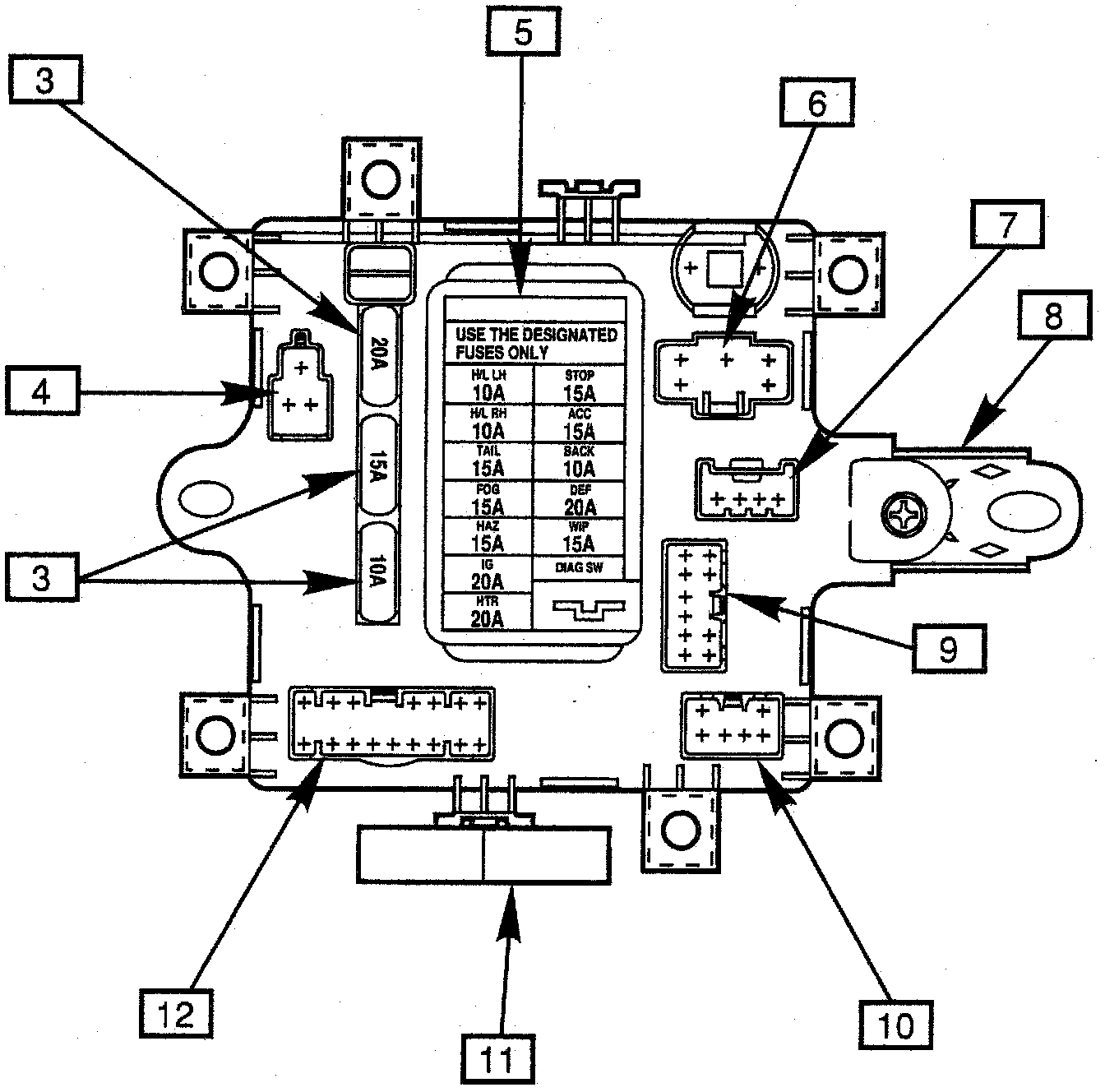

Junction Block, Top View:

1) MAIN WIRING HARNESS CONNECTOR (C8)
2) TURN SIGNAL RELAY
3) SPARE FUSES
4) INSTRUMENT PANEL WIRING HARNESS CONNECTOR (C6)
5) FUSE LOCATIONS
6) IGNITION SWITCH CONNECTOR (C1)
7) IGNITION SWITCH CONNECTOR (C2)
8) GROUNDING BRACKET (G203)
9) COMBINATION SWITCH CONNECTOR (C4)
10) COMBINATION SWITCH CONNECTOR (C3)
11) FUSE BOX 1
12) INSTRUMENT PANEL WIRING HARNESS CONNECTOR (C5)
13) MAIN WIRING HARNESS CONNECTOR (C9)
14) MAIN WIRING HARNESS CONNECTOR (C7)
15) FLOOR WIRING HARNESS CONNECTOR (C10)
