Automatic Transmission/Transaxle Controls

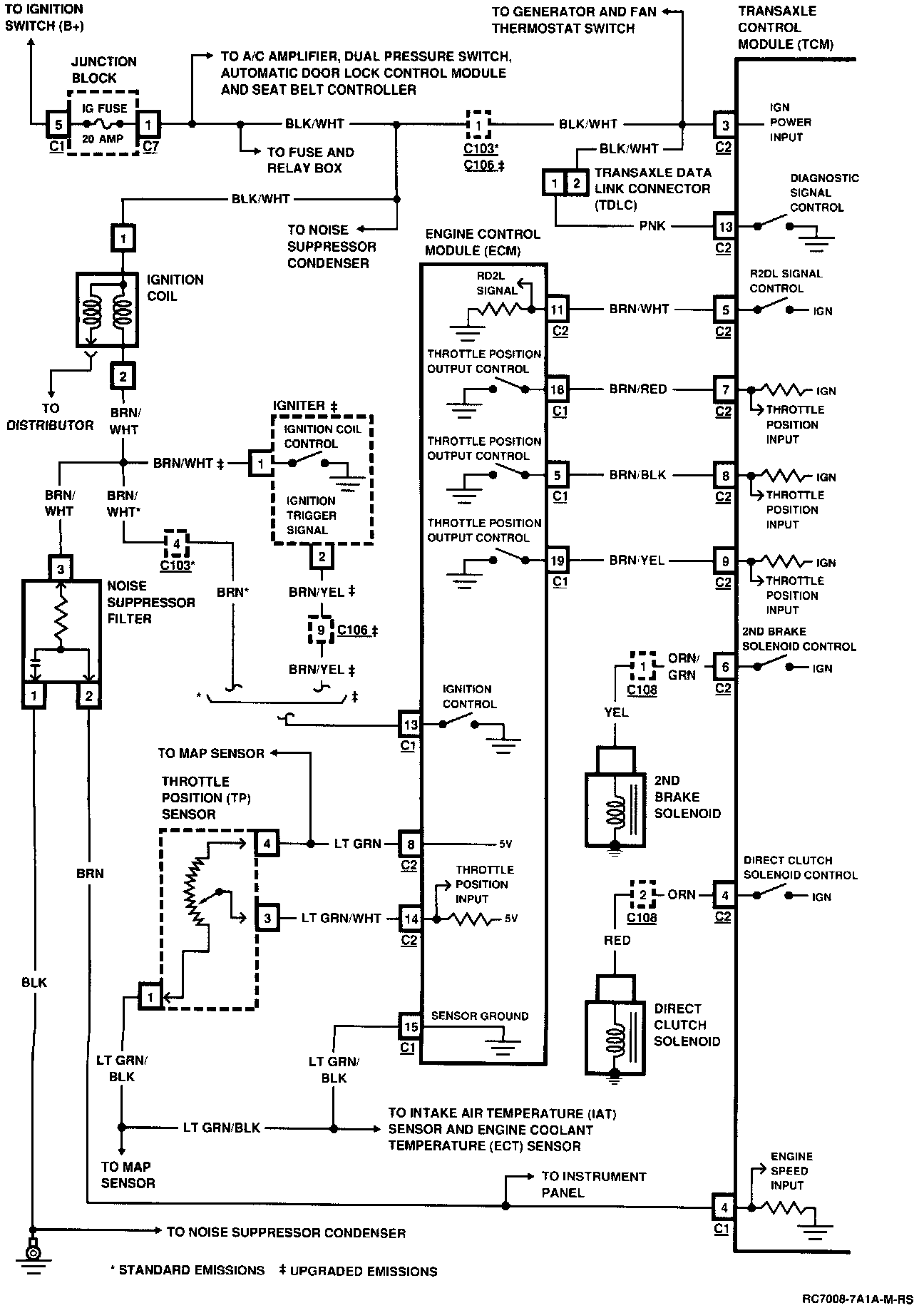

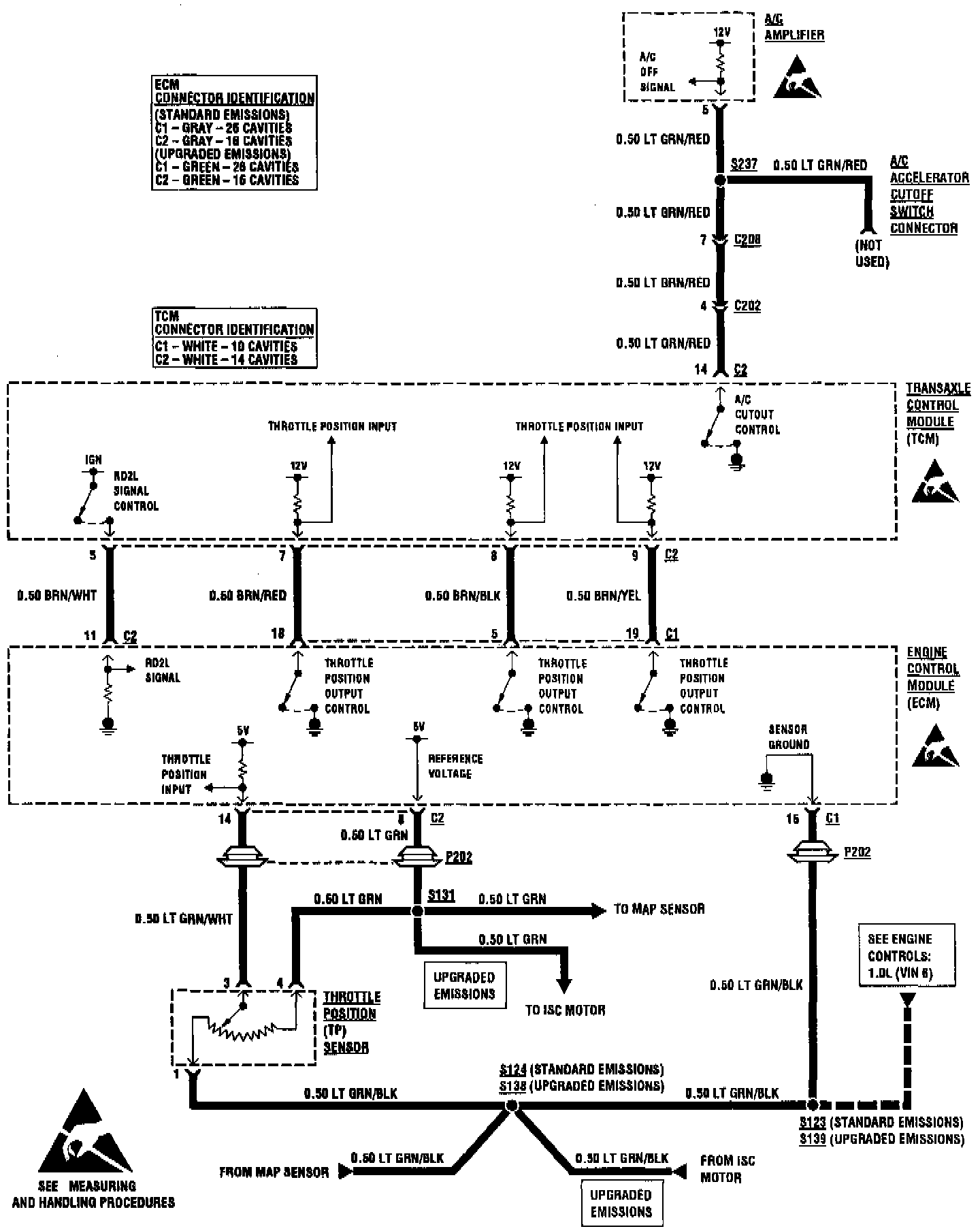

Automatic Transaxle Controls Circuit: Part 1 Of 3:

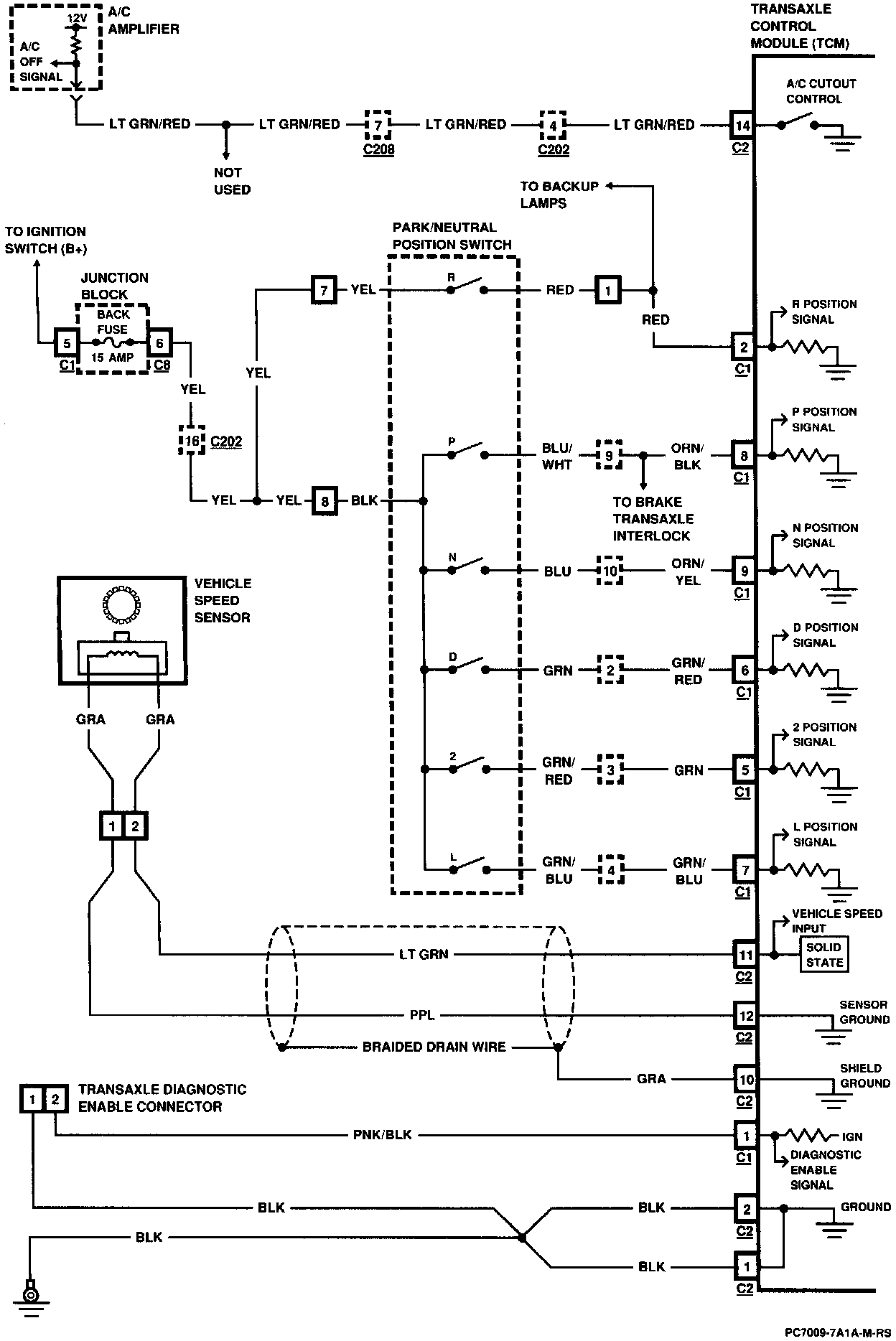

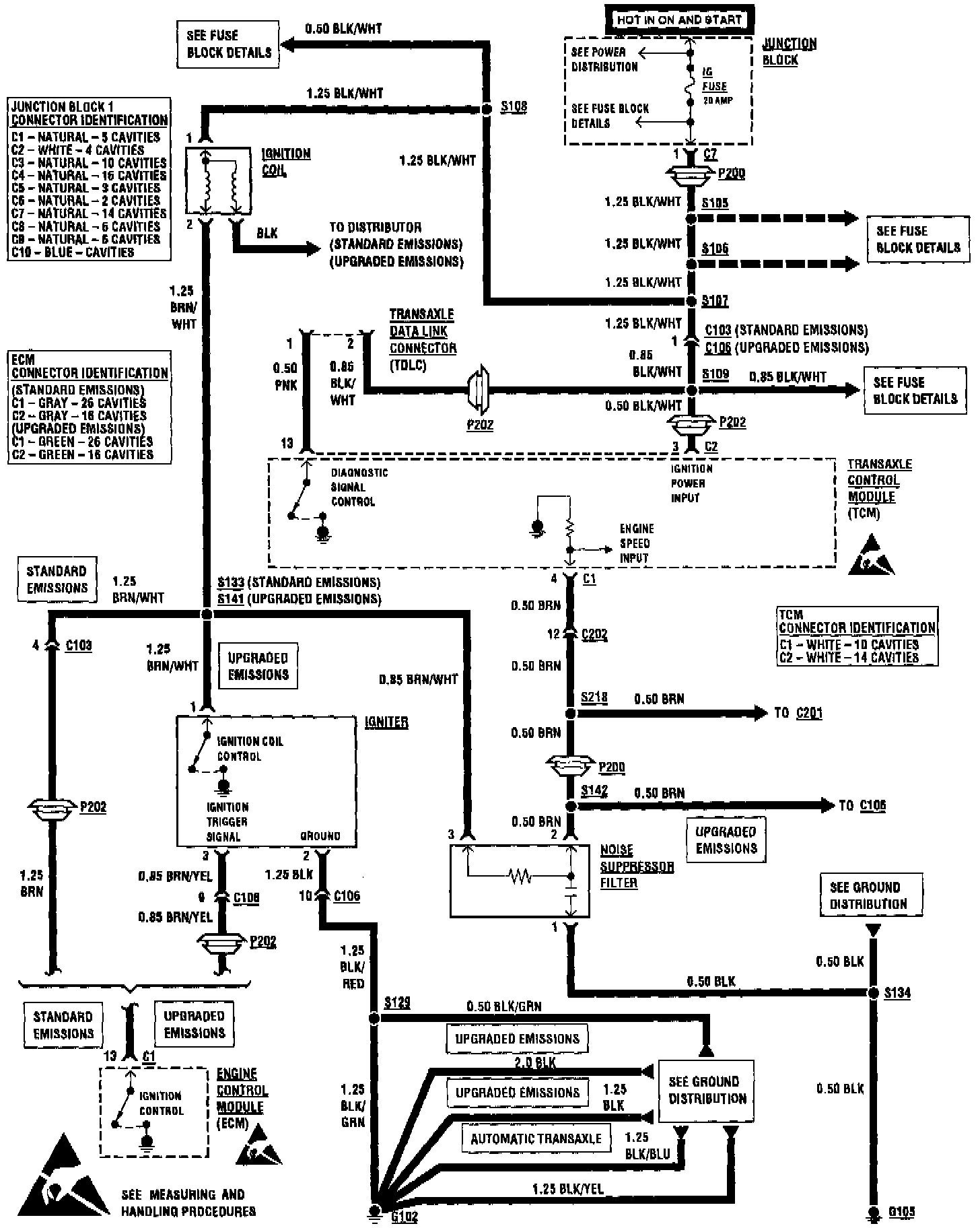

Automatic Transaxle Controls Circuit: Part 2 Of 3:

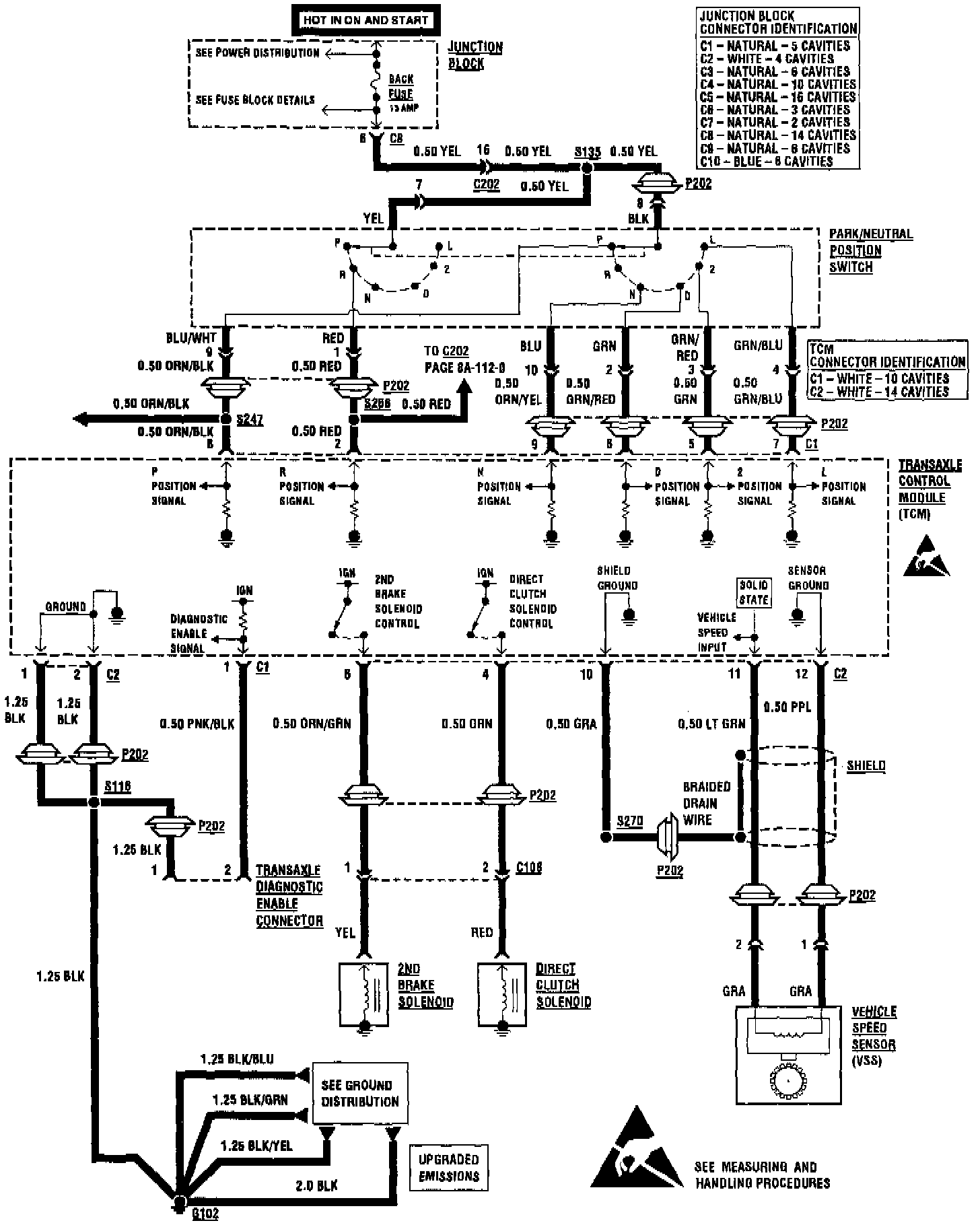

Automatic Transaxle Controls Circuit: Part 3 Of 3:
