Data Link Connector: Diagrams

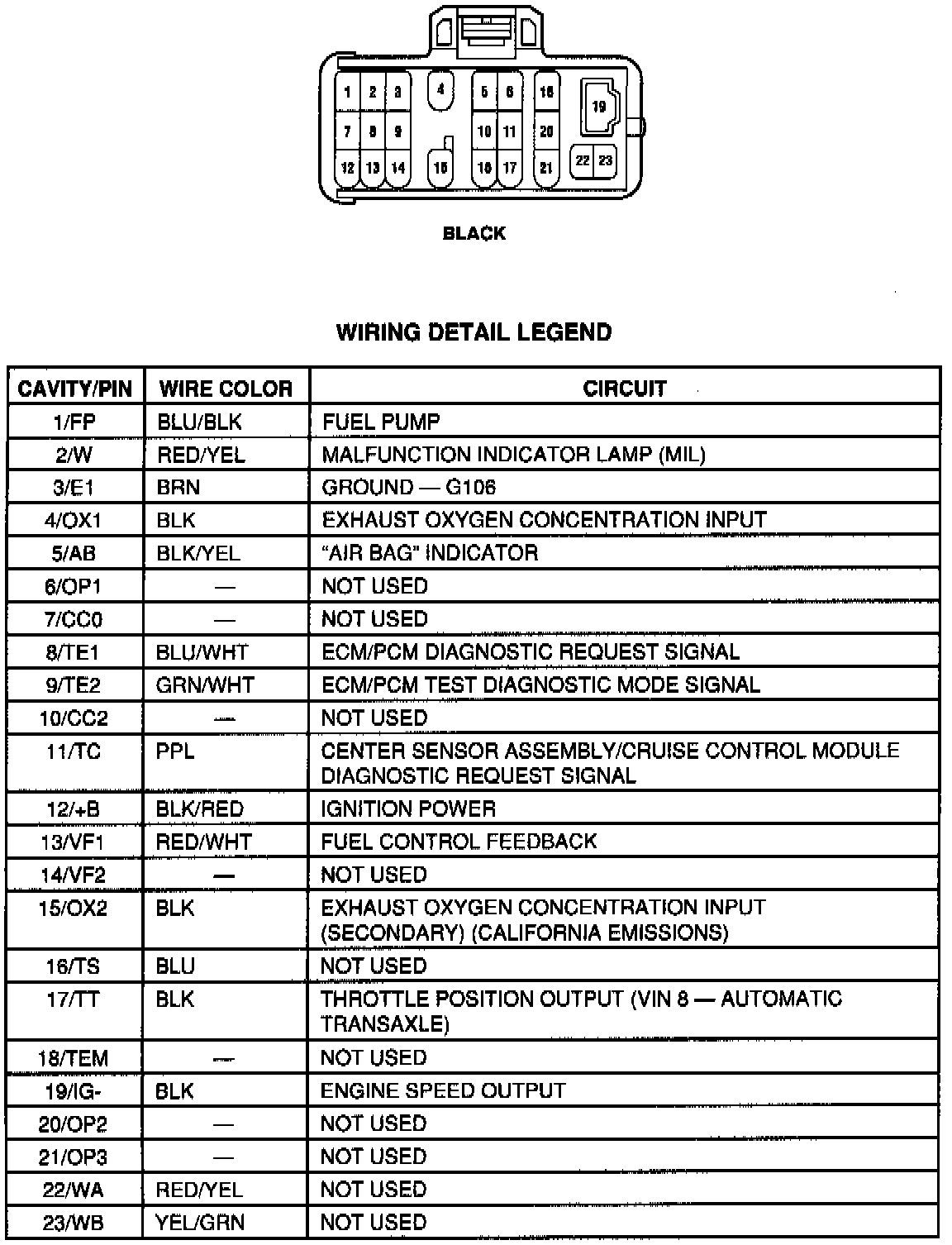

Data Link Connector (DLC):



Data Link Connector (DLC) - Antilock Brake System Data Link Connector (ABS DLC):
