Starter Motor: Service and Repair

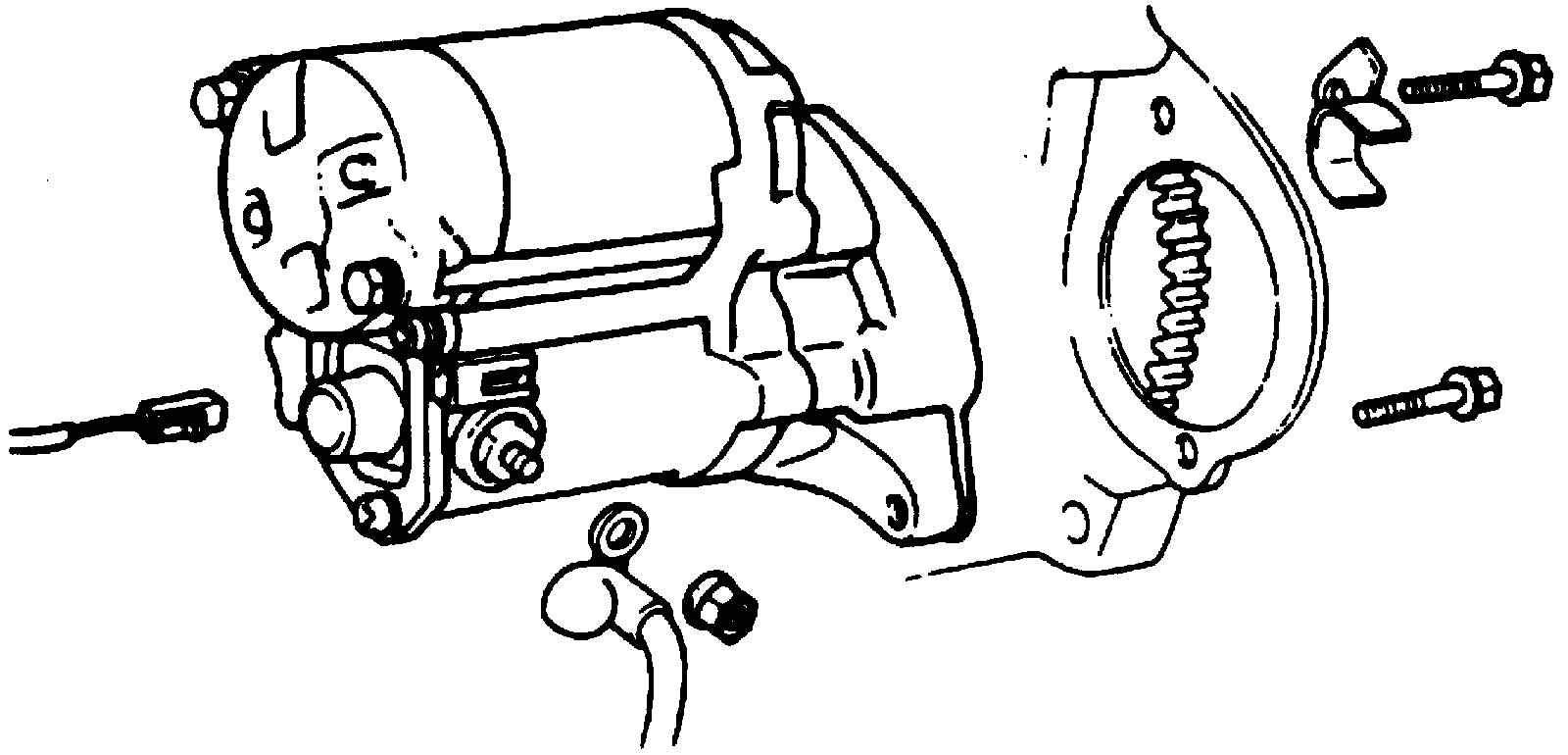

Fig. 2 Starter Motor Installation:

1. Disconnect battery ground cable.
2. Disconnect electrical connectors from starter motor, Fig. 2 .
3. Remove starter motor retaining bolts.
4. Remove starter motor.
5. Reverse procedure to install. Torque retaining bolts to 31 ft. lbs.
