Diagnostic Aids

A poor ground connection could cause Code 53 to set. Ensure ground connection is clean and tight.

Fig 1: CODE 53 - Schematic (TBI Federal) Open Ground Circuit

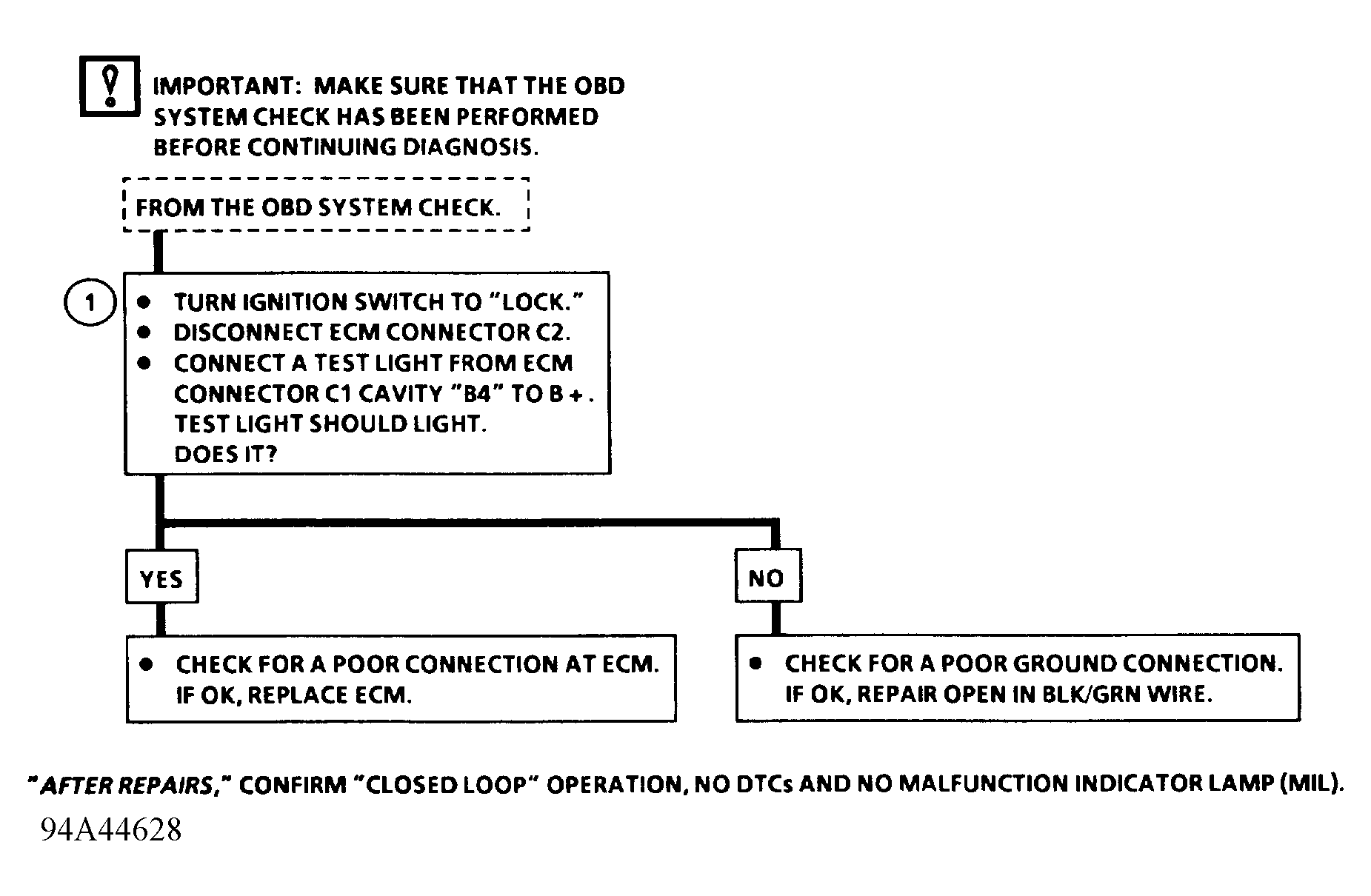

Fig 2: CODE 53 - Flow Chart (TBI Federal) Open Ground Circuit
