Pinout Information

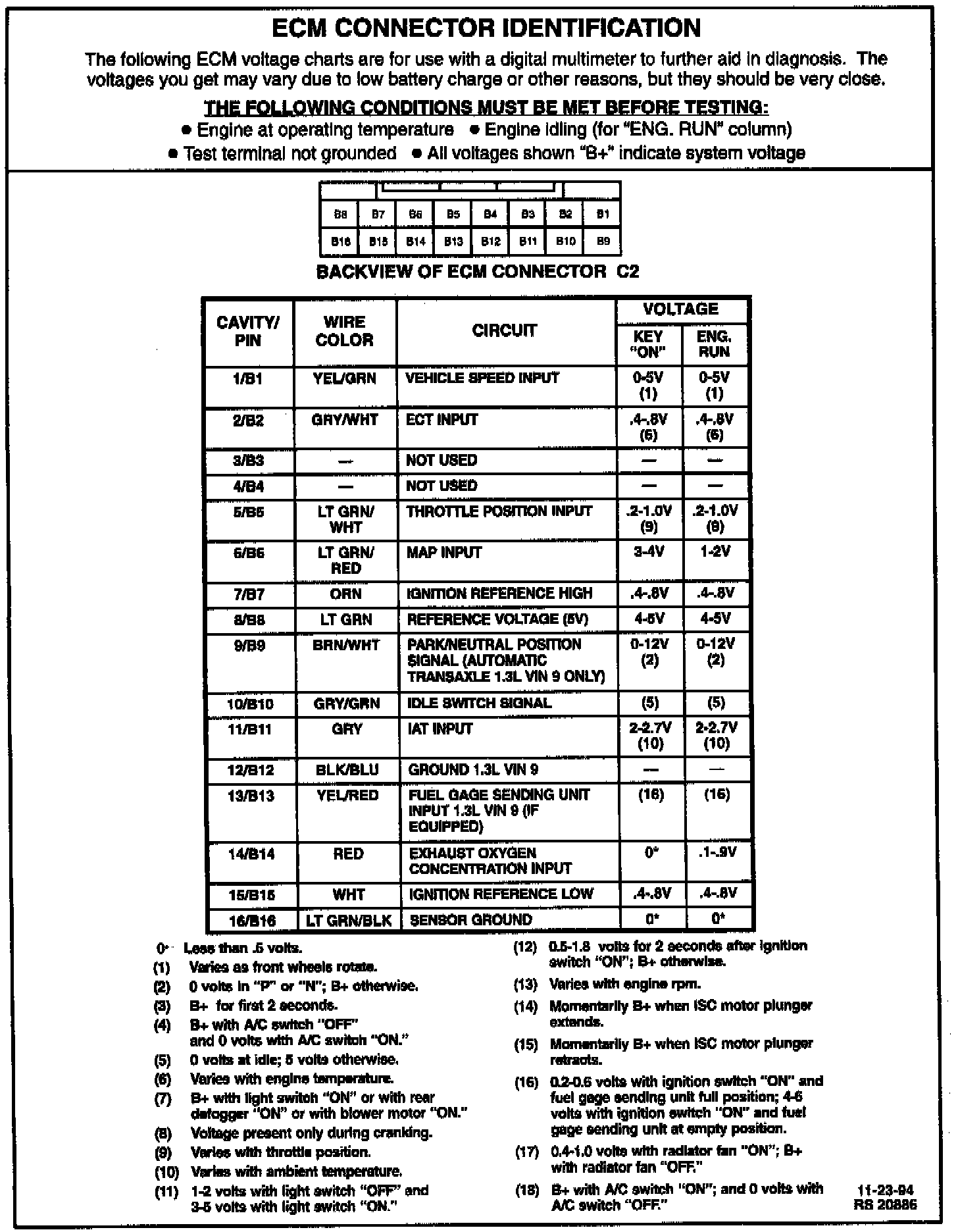

ECM Connector Terminal End View (1 of 3):

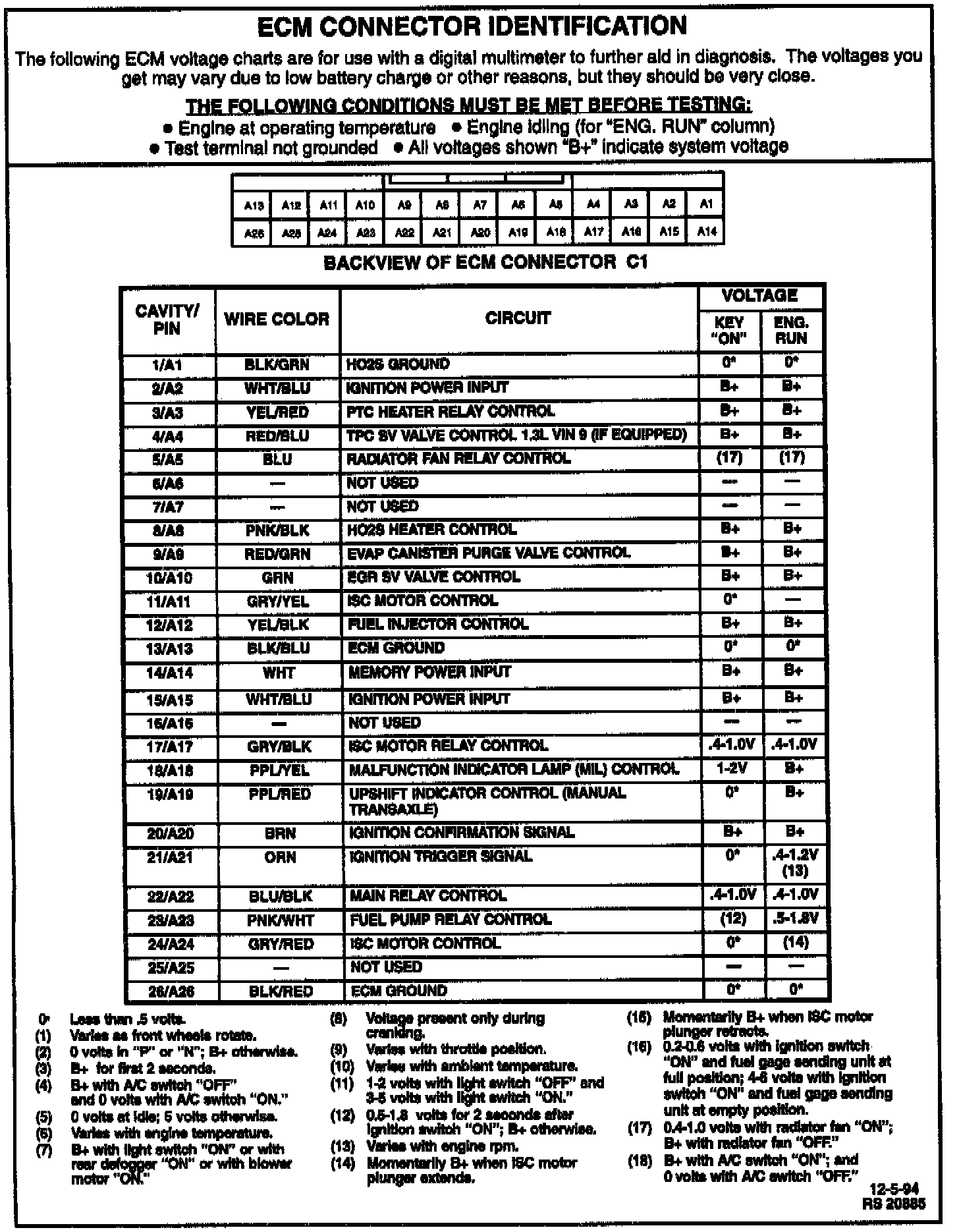

ECM Connector Terminal End View (2 of 3):

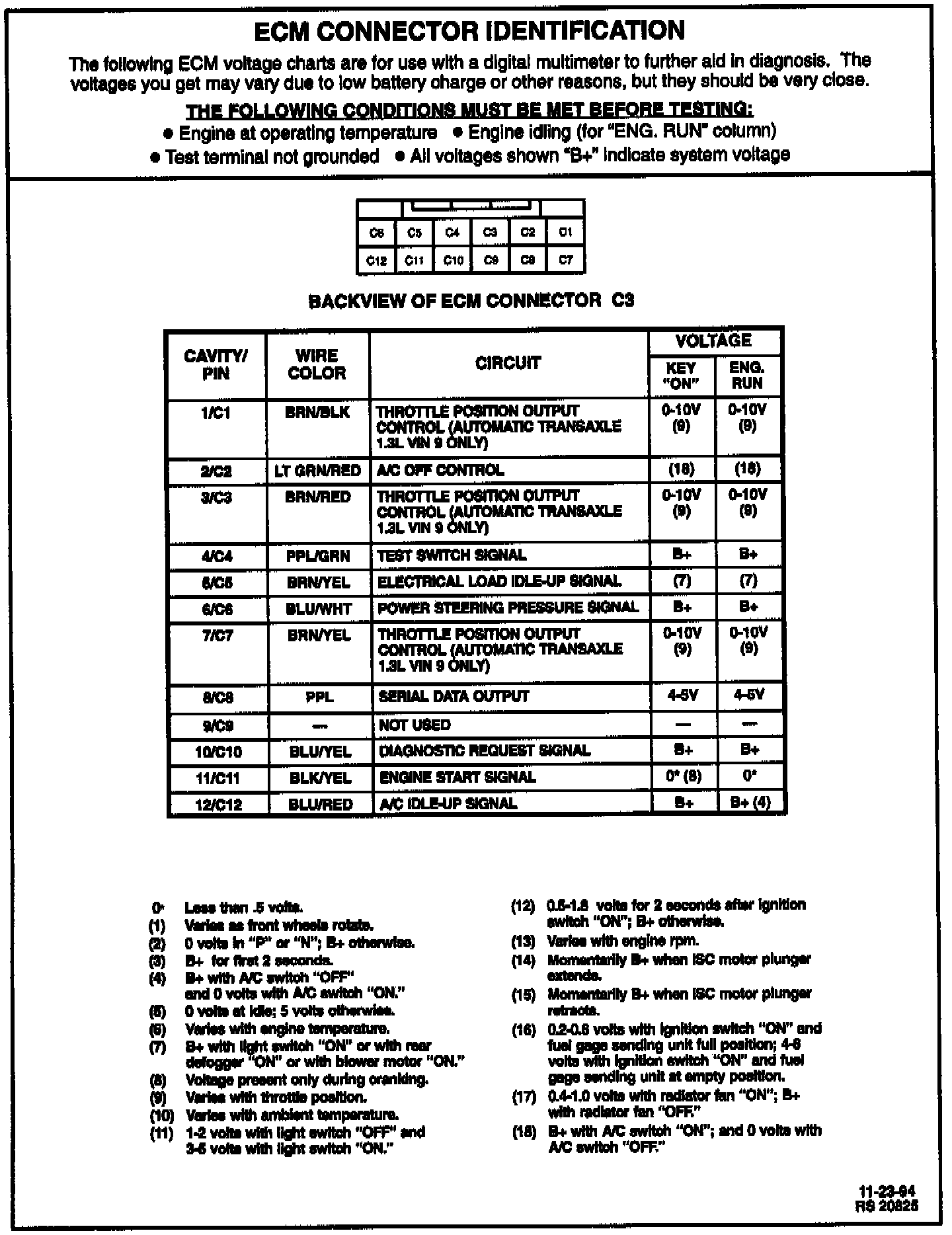

ECM Connector Terminal End View (3 of 3):
