Jacking & Hoisting: Hoist

Position hoist lift pads under prescribed areas. See Fig 2, Fig 3 or Fig 4 .

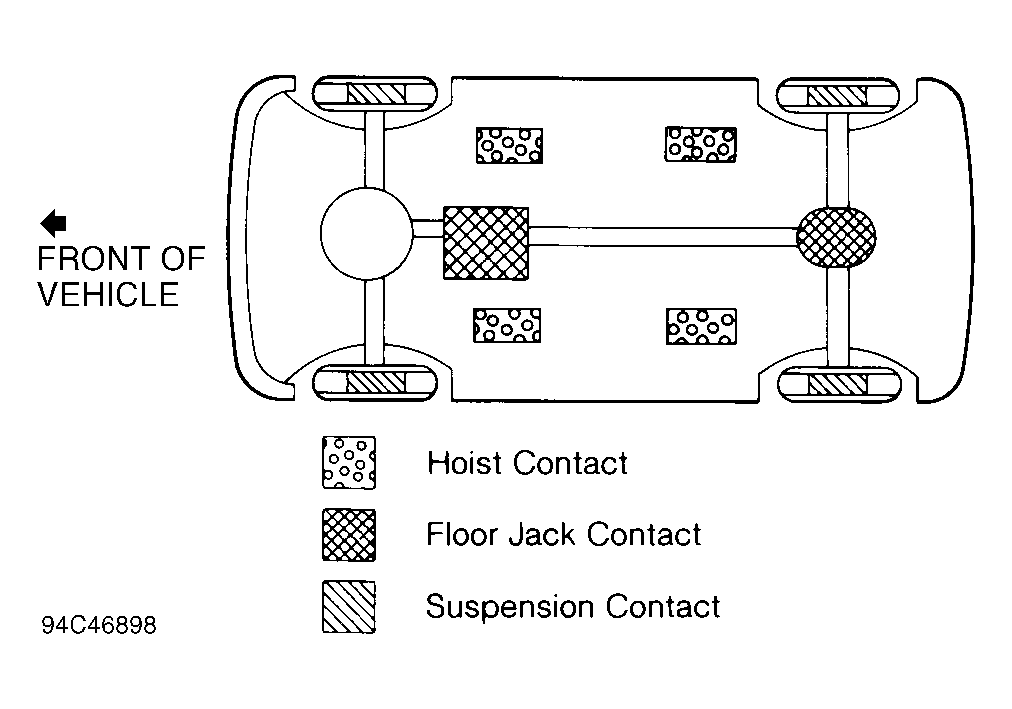

Fig 1: Locating Jacking Points (Metro & Firefly (Canadian))

Courtesy of GENERAL MOTORS CORP.

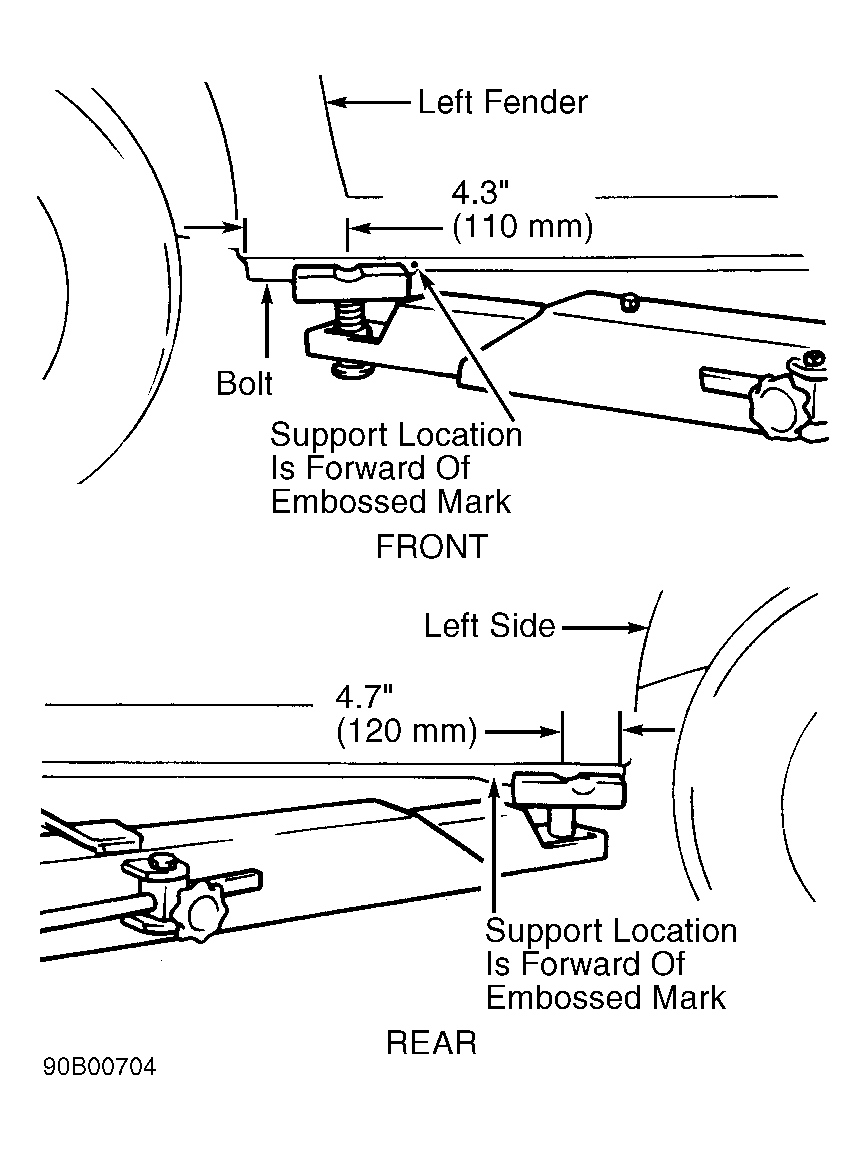

Fig 2: Locating Hoisting Points (Metro & Firefly (Canadian))

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating Jacking & Hoisting Points (Prizm)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Locating Jacking & Hoisting Points (Tracker)

Courtesy of GENERAL MOTORS CORP.
