Transfer Case (Tracker)

Remove transfer case fill plug (upper plug) from rear of transfer case. Fill plug is located near speedometer gear housing. Fluid level must be at bottom of fill plug hole. Install fill plug and tighten to 17 ft. lbs. (23 N.m).

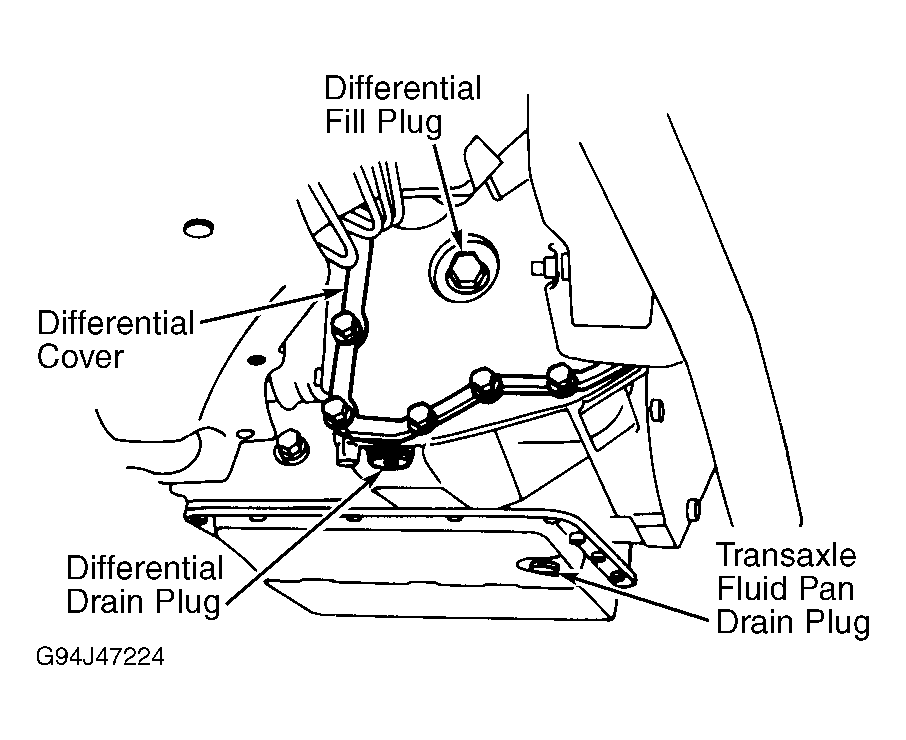

Fig 1: Identifying Differential Fill & Drain Plugs (Prizm - 3-Speed)

Courtesy of GENERAL MOTORS CORP.
