Distributor Advance Unit

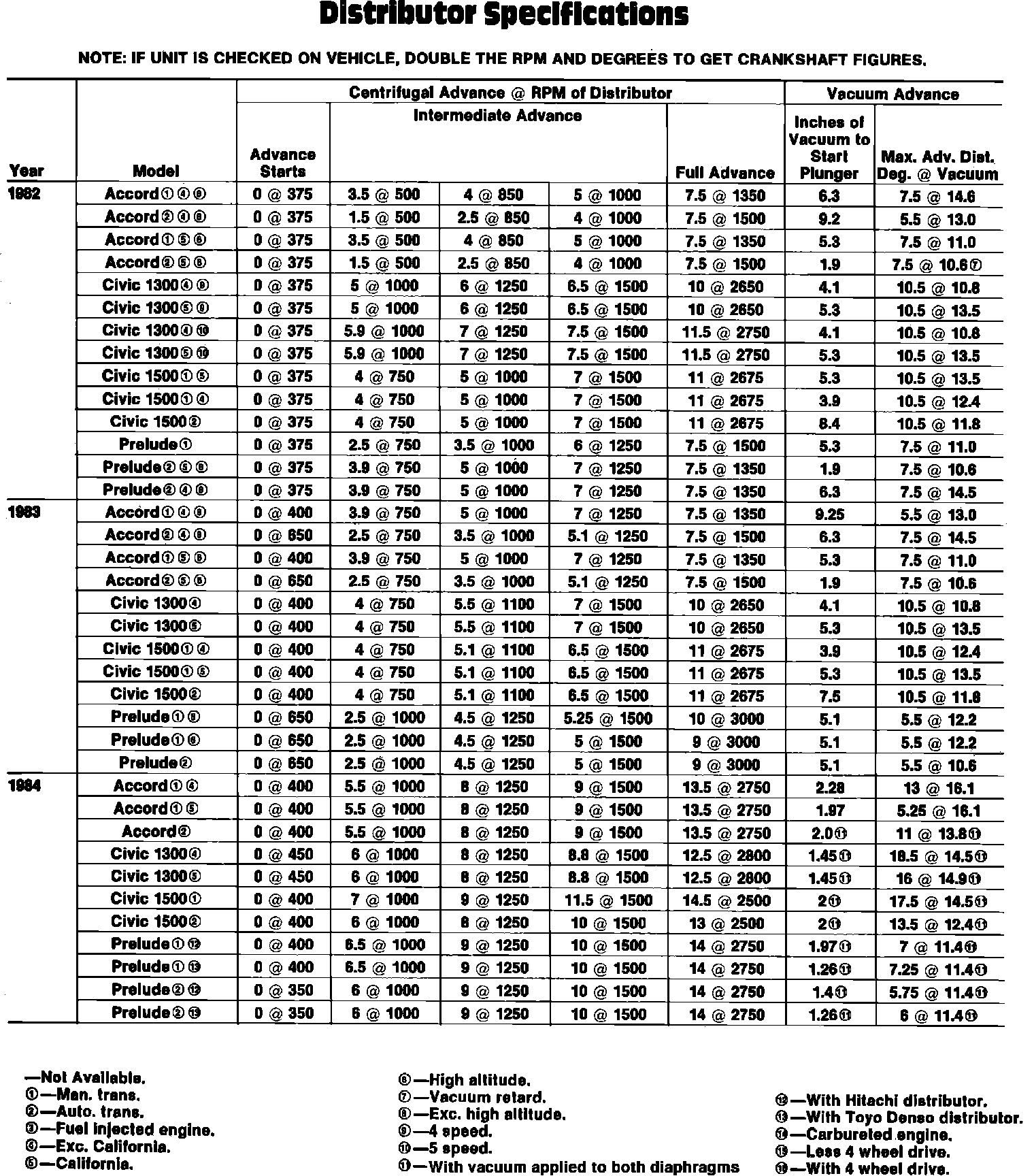

Fig. 48 Distributor specifications:

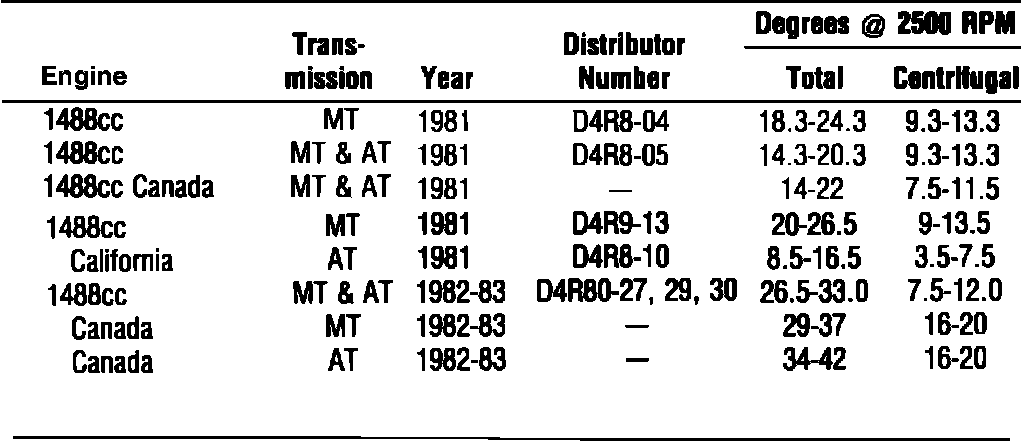

Fig. 012 Distributor Timing Advance Specifications:
