Torque Specifications

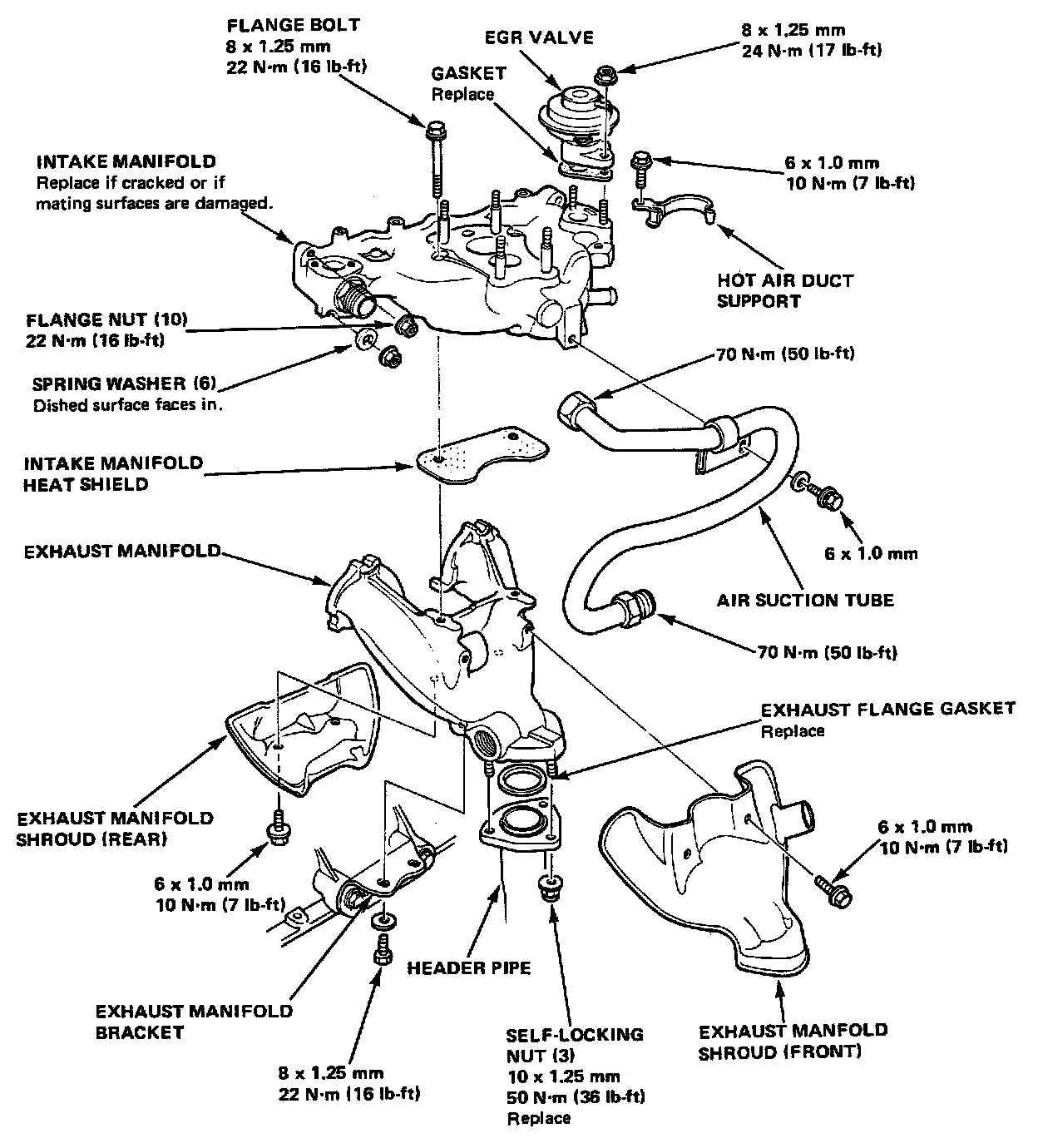

Manifolds And Attached Components:

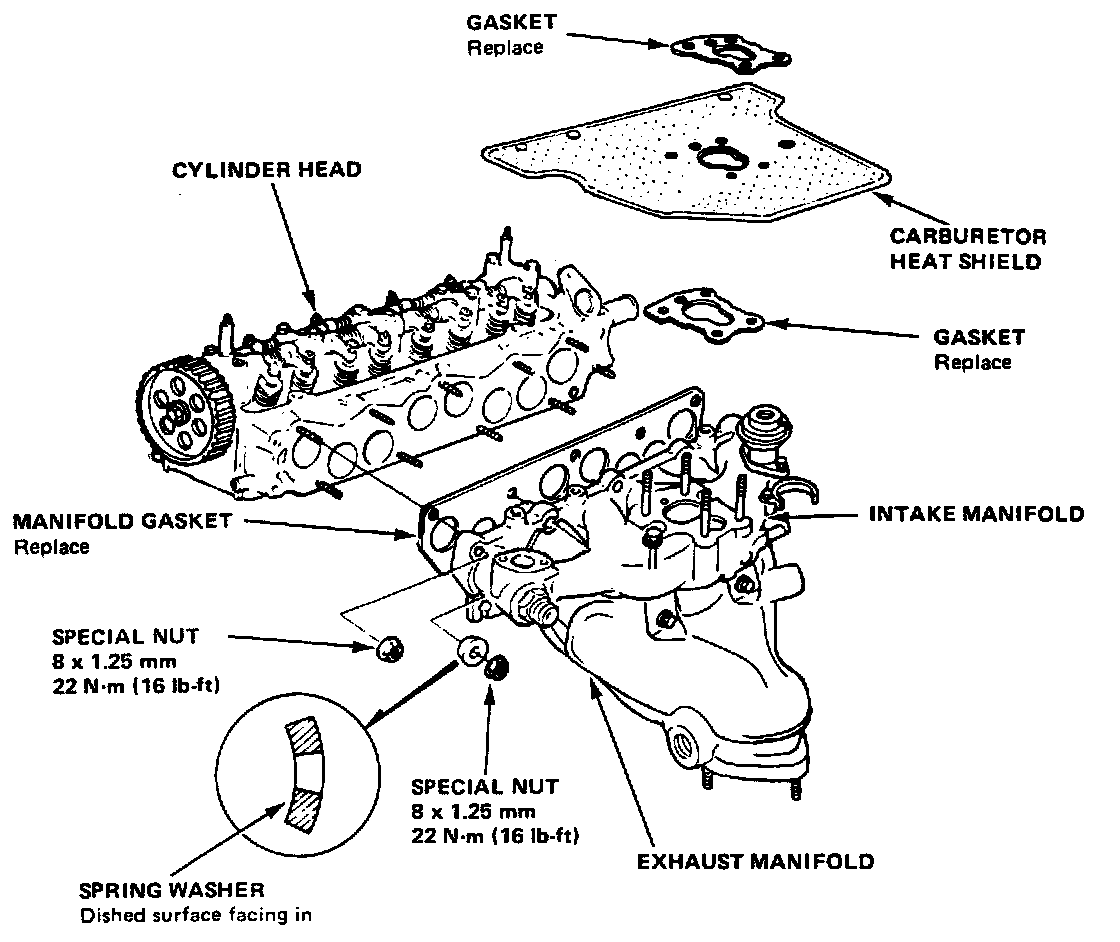

Manifold Assembly:

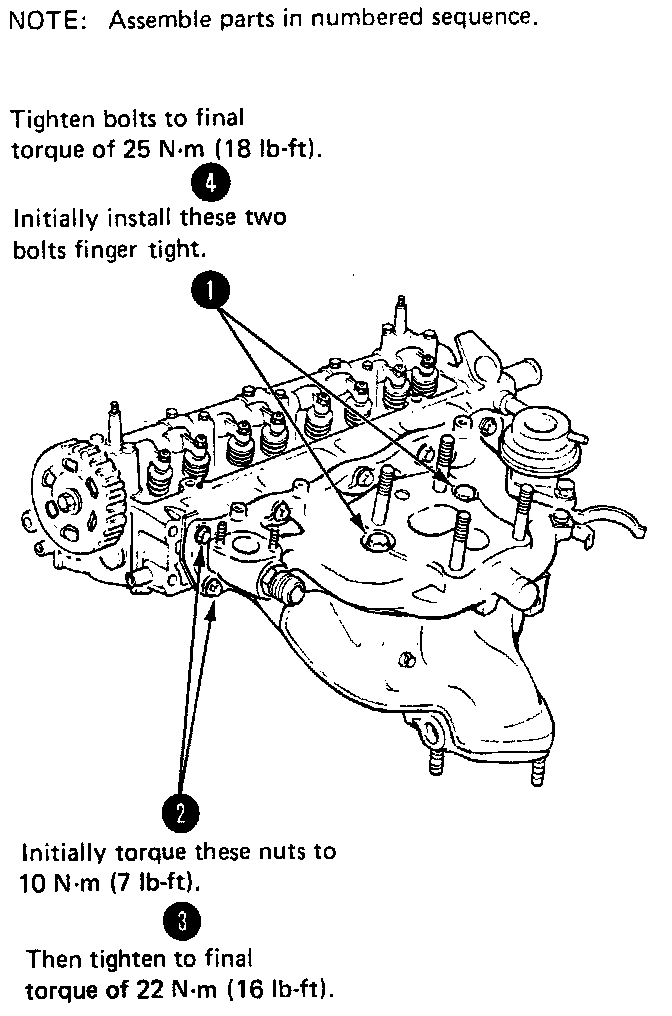

Manifold Assembly Sequence:

Manifold Tightening Sequence:

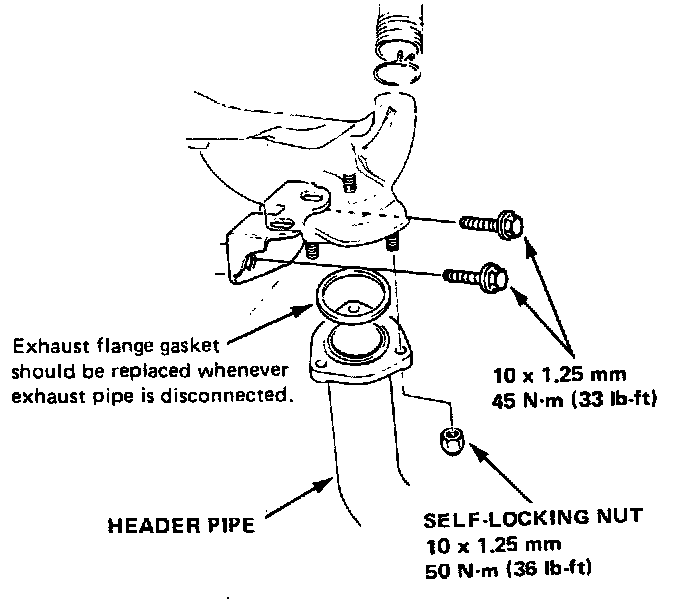

Manifold Support Bracket And Header Pipe:

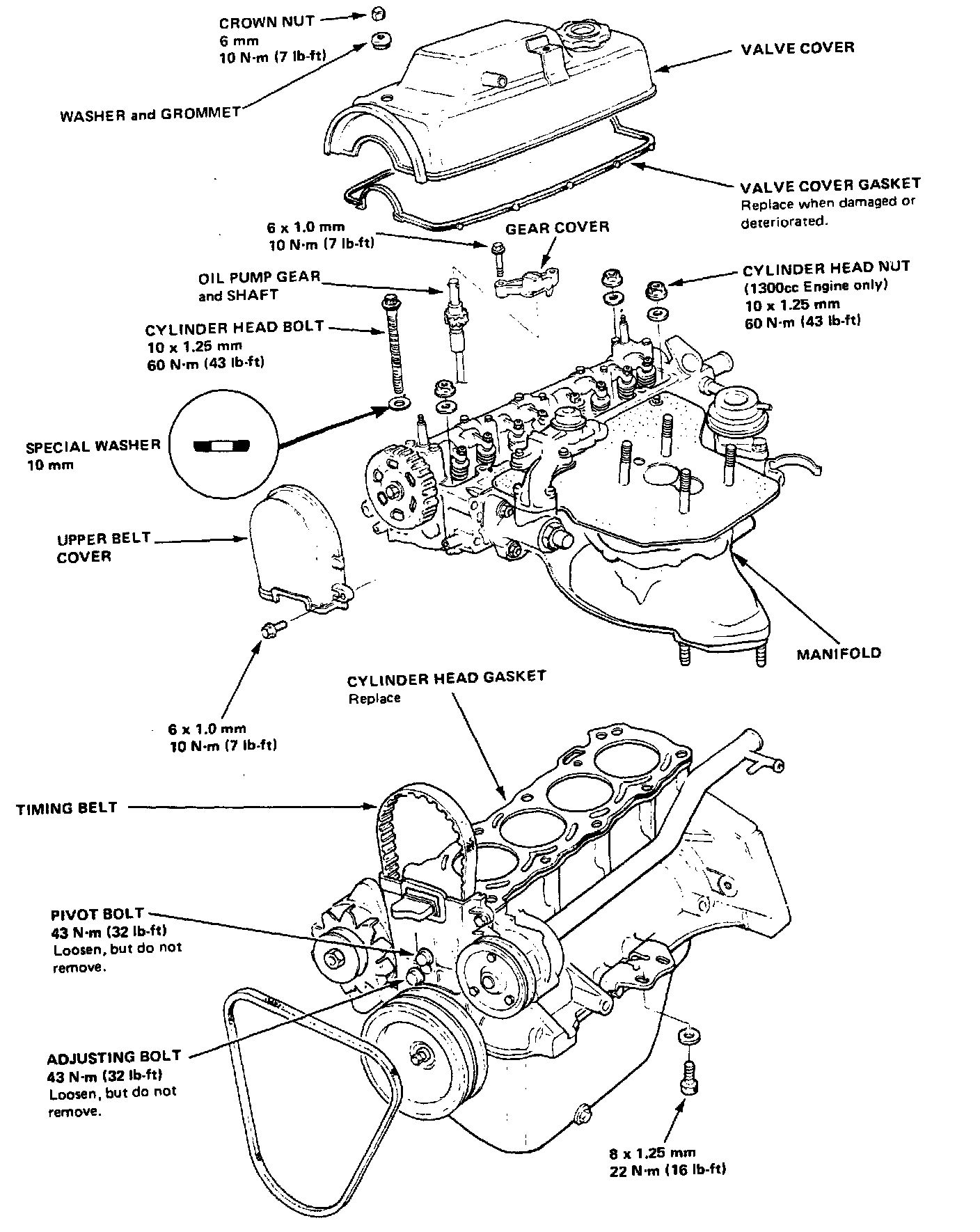

Cylinder Head Assembly And Cover:

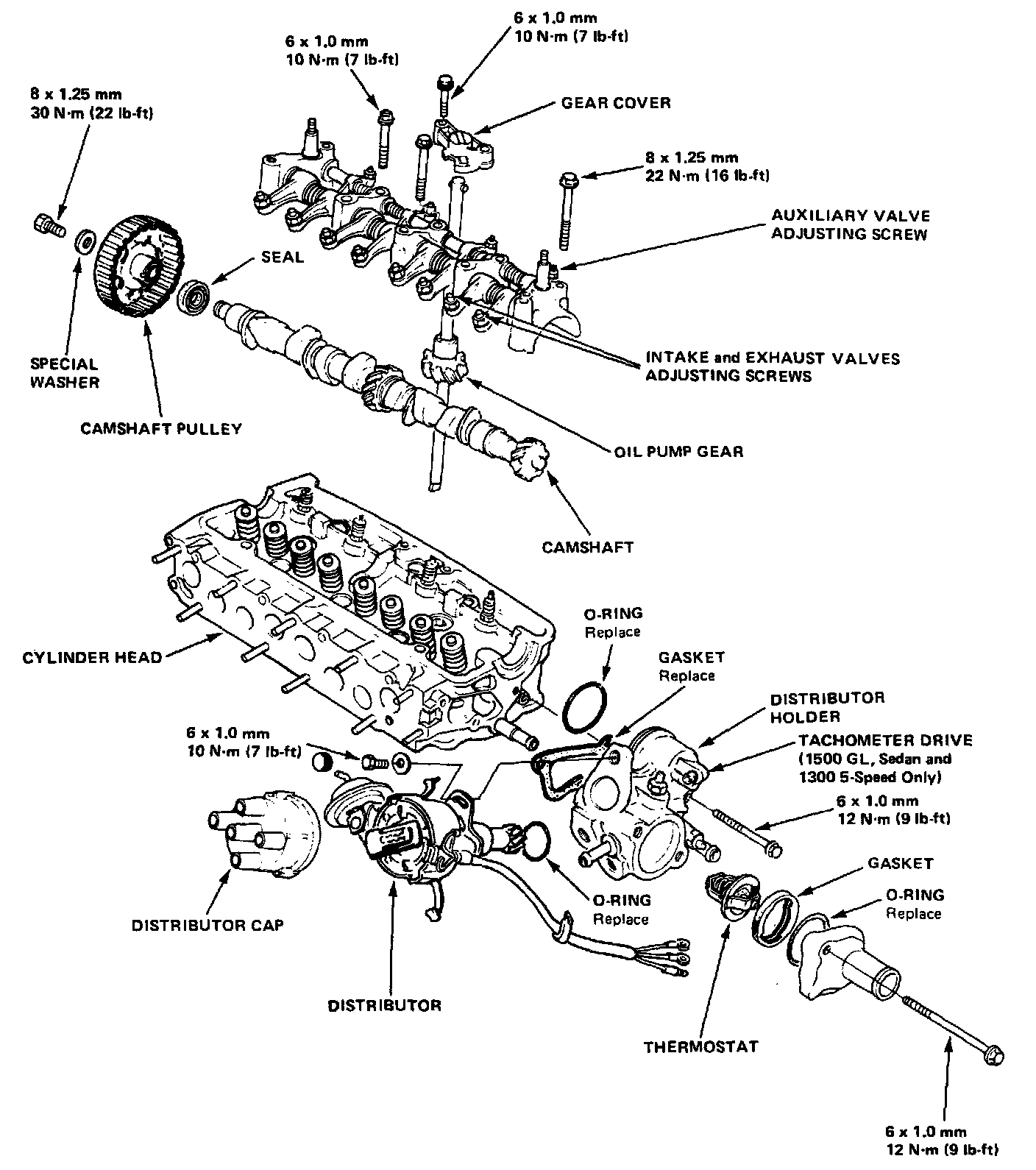

Camshaft, Rockers, Distributor And Thermostat Housing:

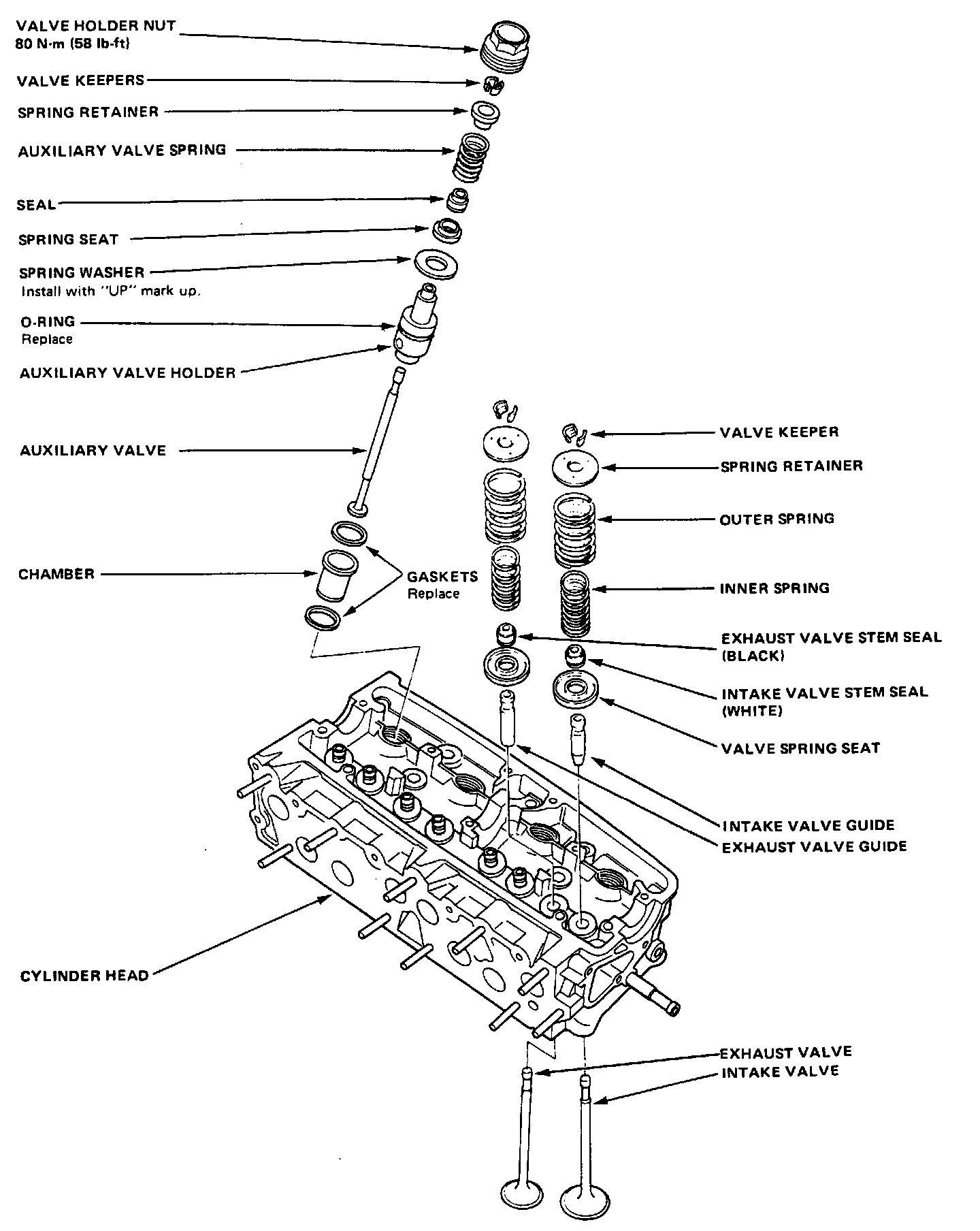

Valves, Guides And Springs, Auxiliary Valve Components:

Cylinder Head Bolt Removal Sequence:

Tighten cylinder head bolts, in sequence, in two steps:

1st step: Tighten to 30 N.m (3.0 kgf-m, 22 lb.ft)
2nd step: Tighten to 60 N.m (6.0 kgf-m, 43 lb.ft)

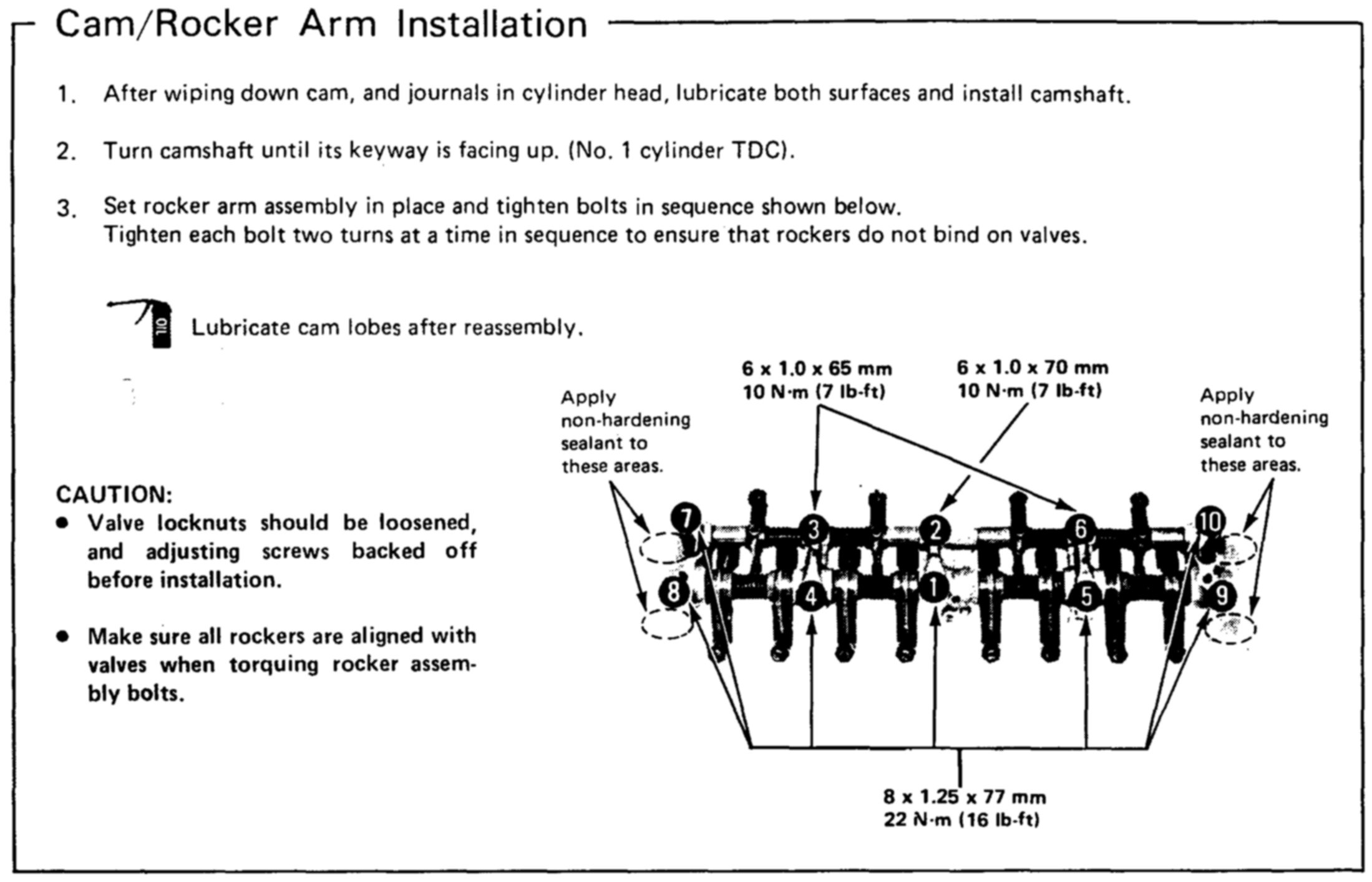

Rocker Arm Installation:

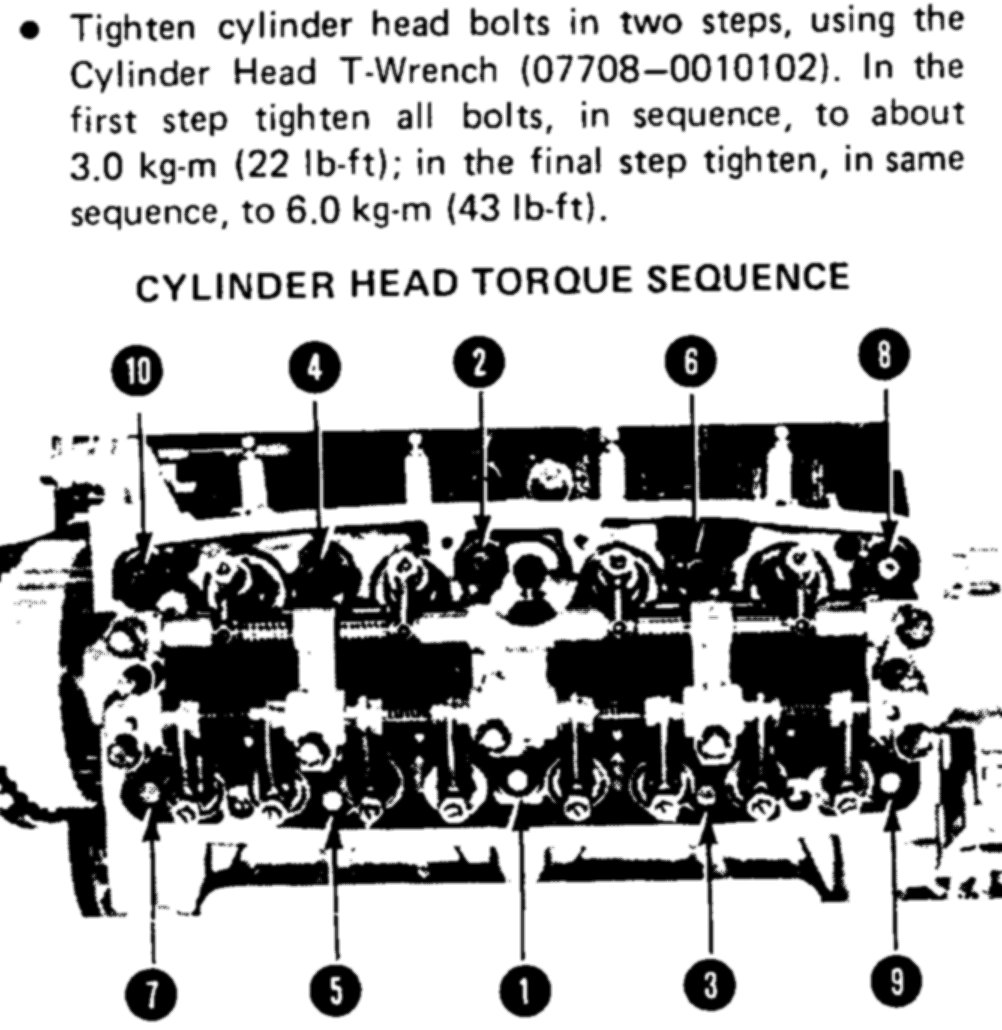

Cylinder Head Tightening Sequence:

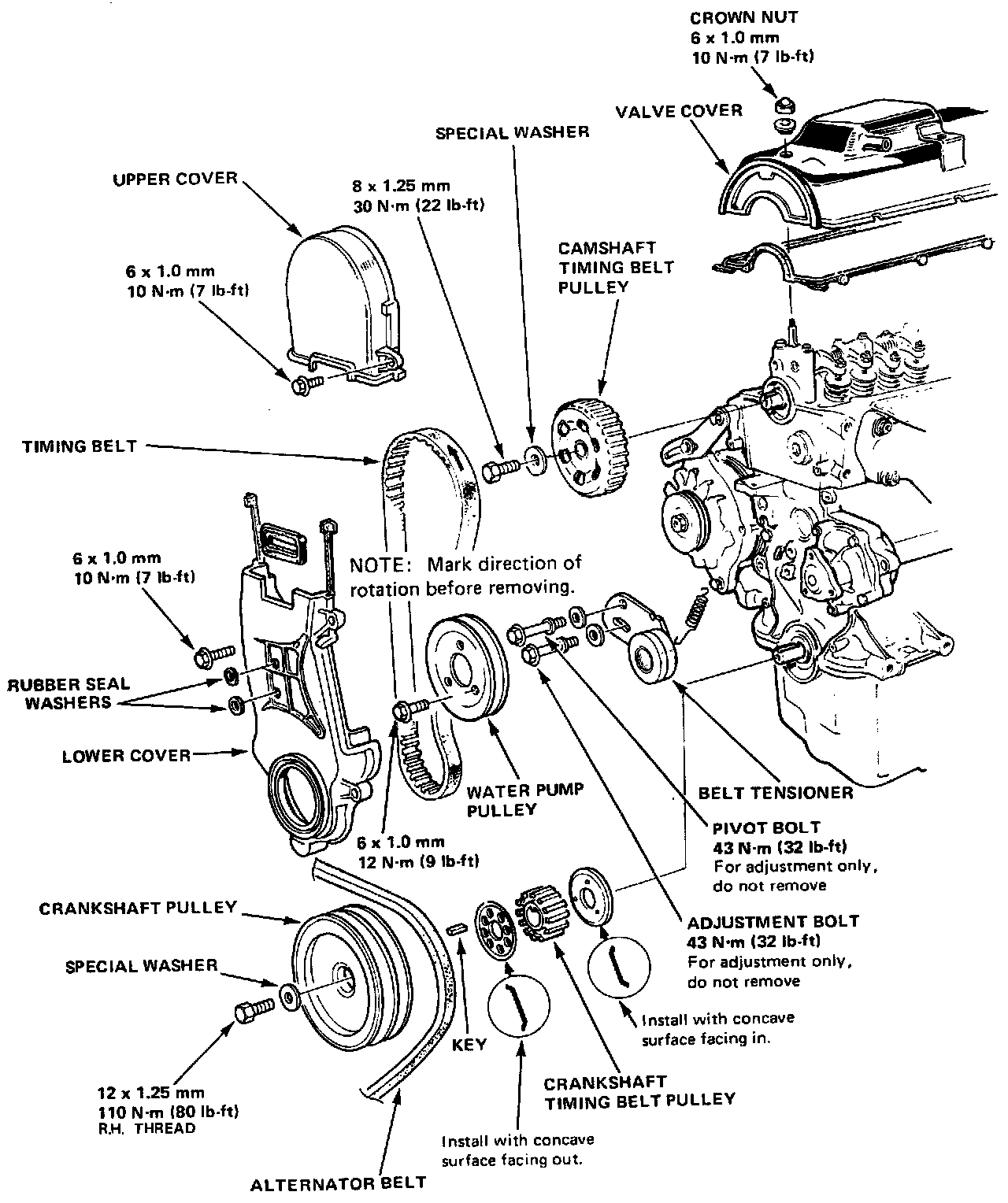

Timing Belt, Components And Covers:

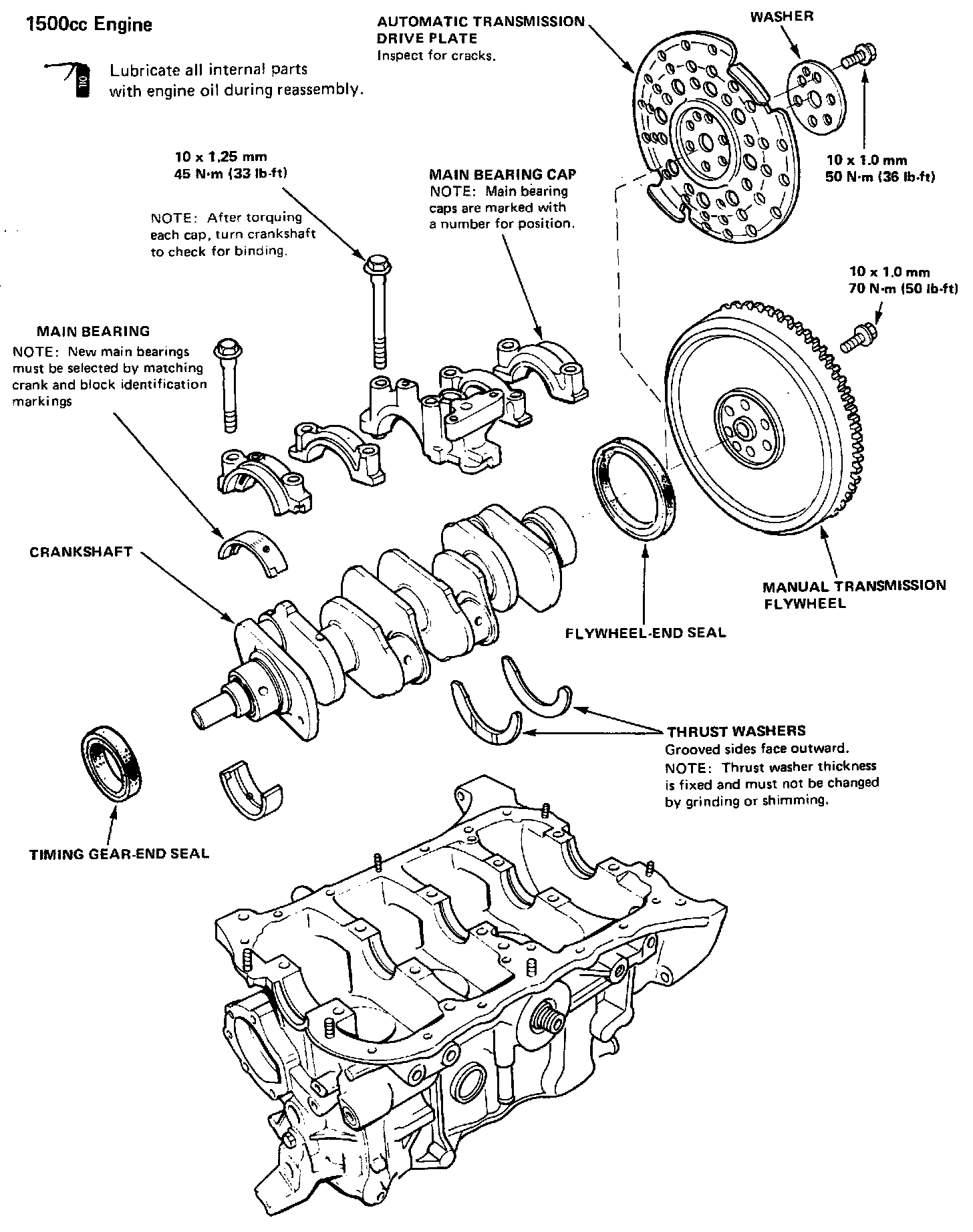

Crankshaft, Main Bearing Caps And Flywheel/Flex Plate:

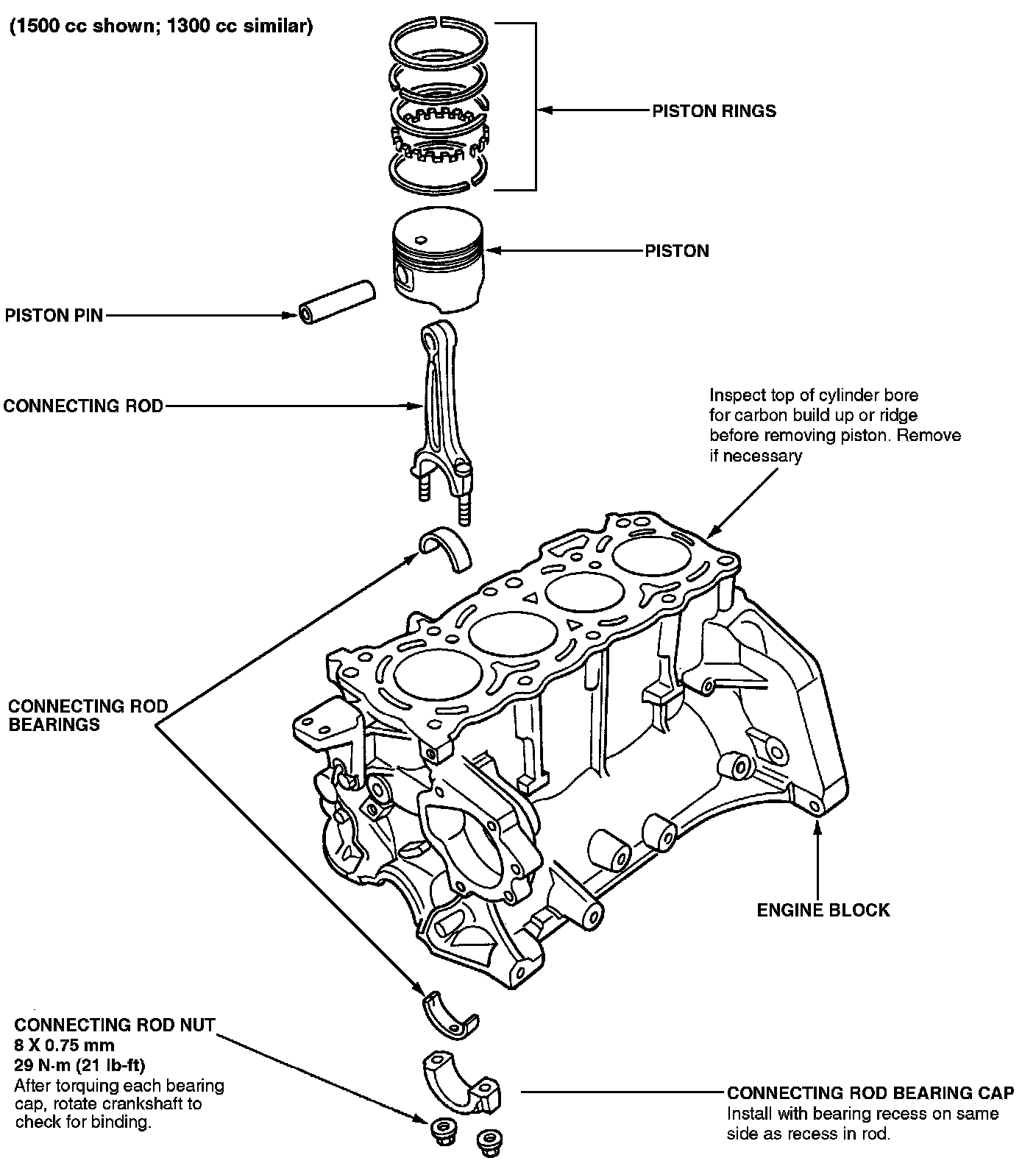

Piston And Connecting Rod:

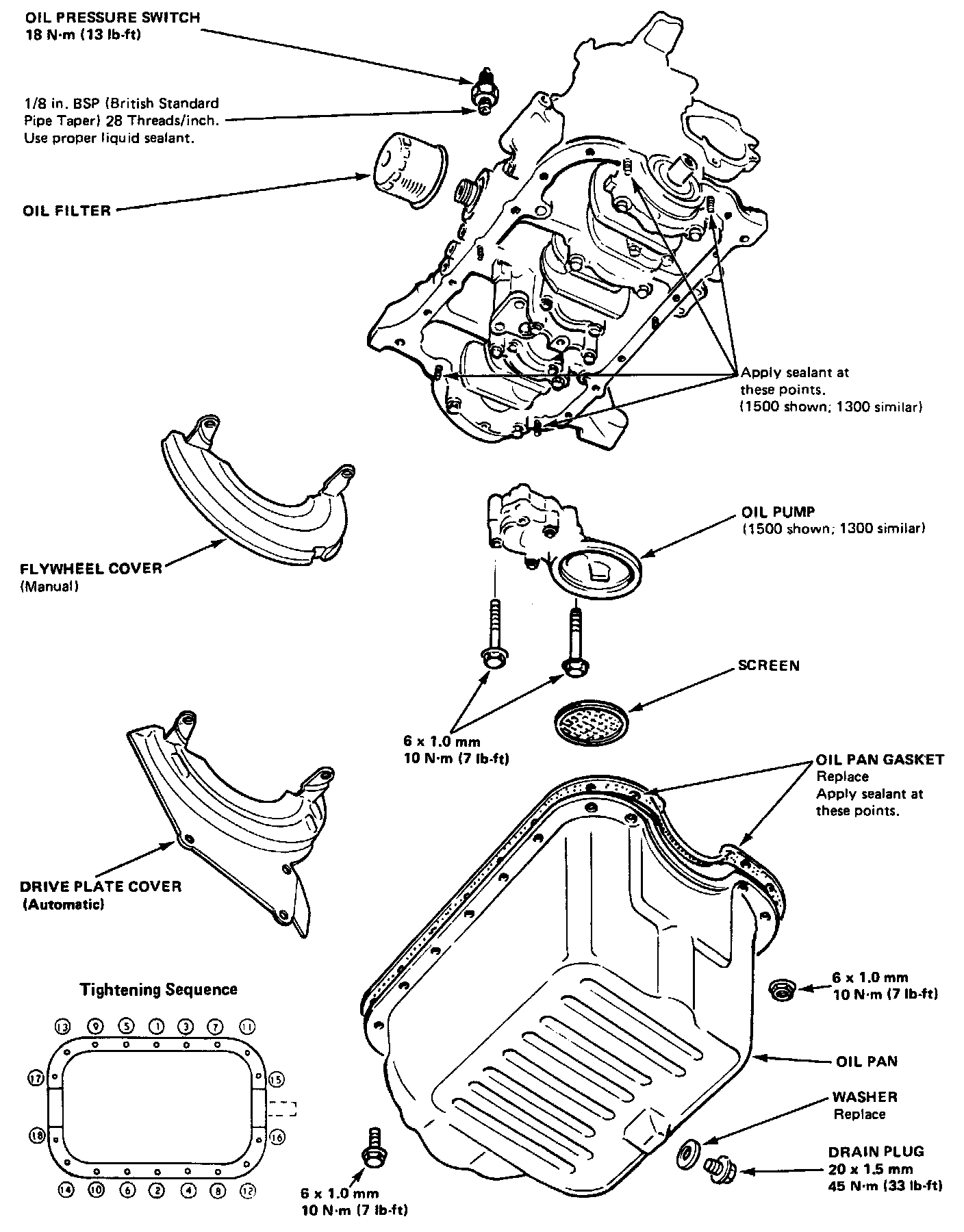

Oil Pan, Drain Plug, Oil Pressure Sender And Oil Pump:

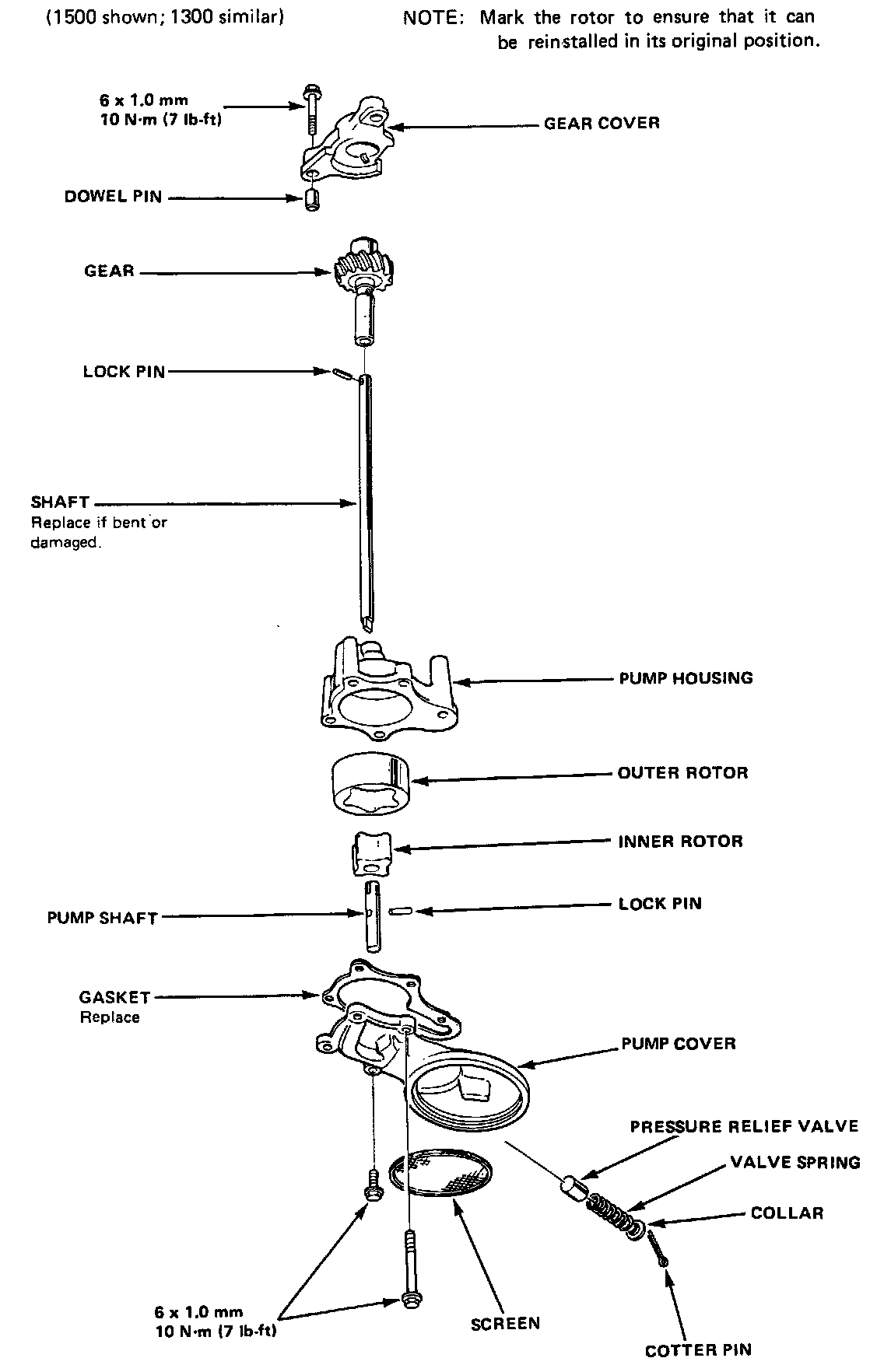

Oil Pump Components:

Flywheel Tightening Sequence - M/T:

Flexplate Tightening Sequence - A/T:
