Combination Switch: Installation
To install, reverse removal procedure.

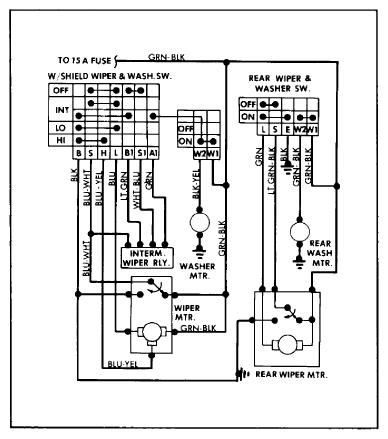

Fig 1: Honda Accord Wiper Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

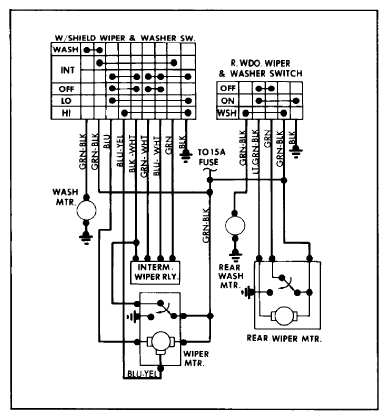

Fig 2: Honda Civic Wiper Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Honda Prelude Wiper Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
