System Diagram

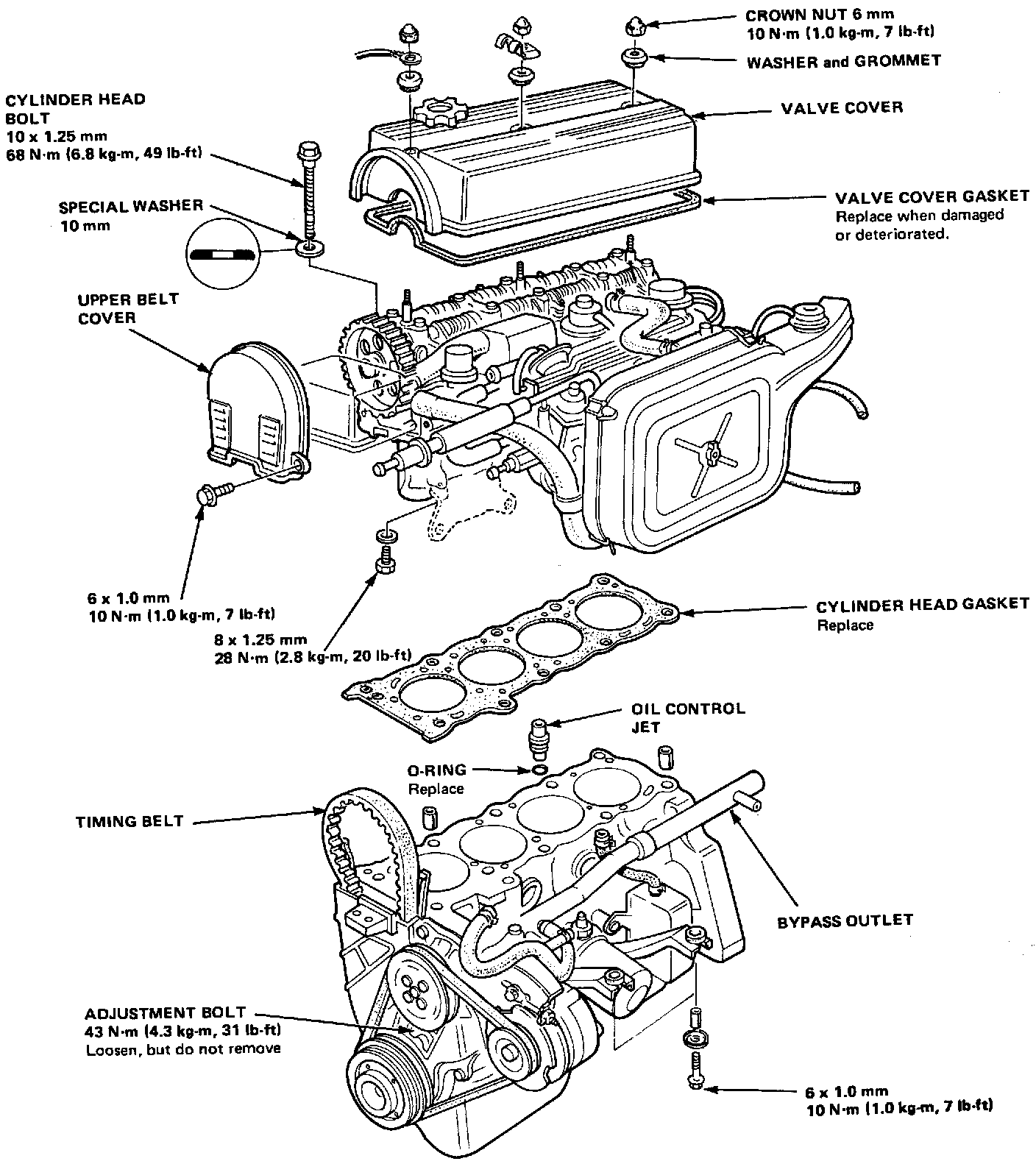

Cylinder Head, Valve Cover:

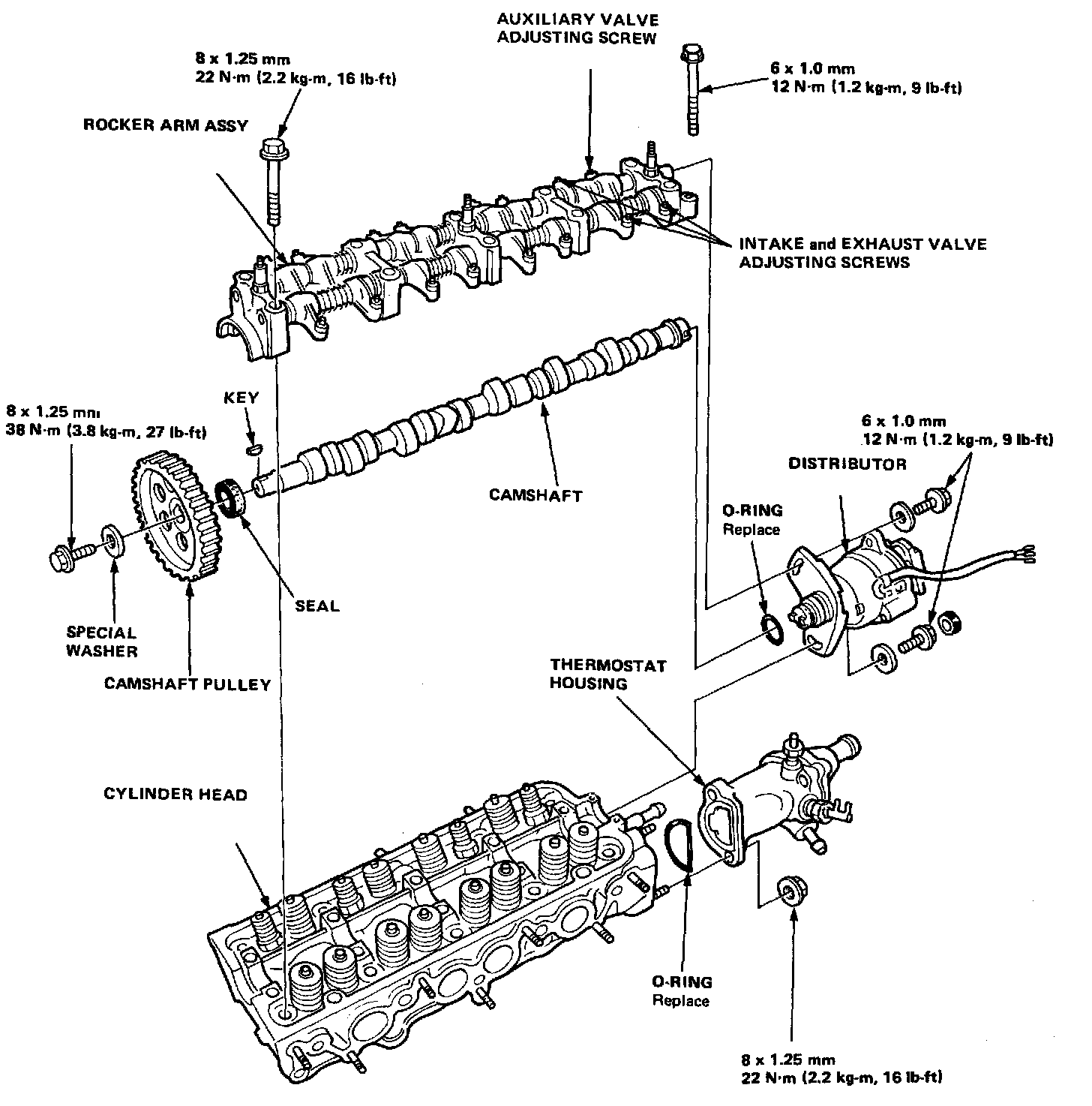

Rocker Assy, Cam Pulley, Distributor, Thermostat Housing:

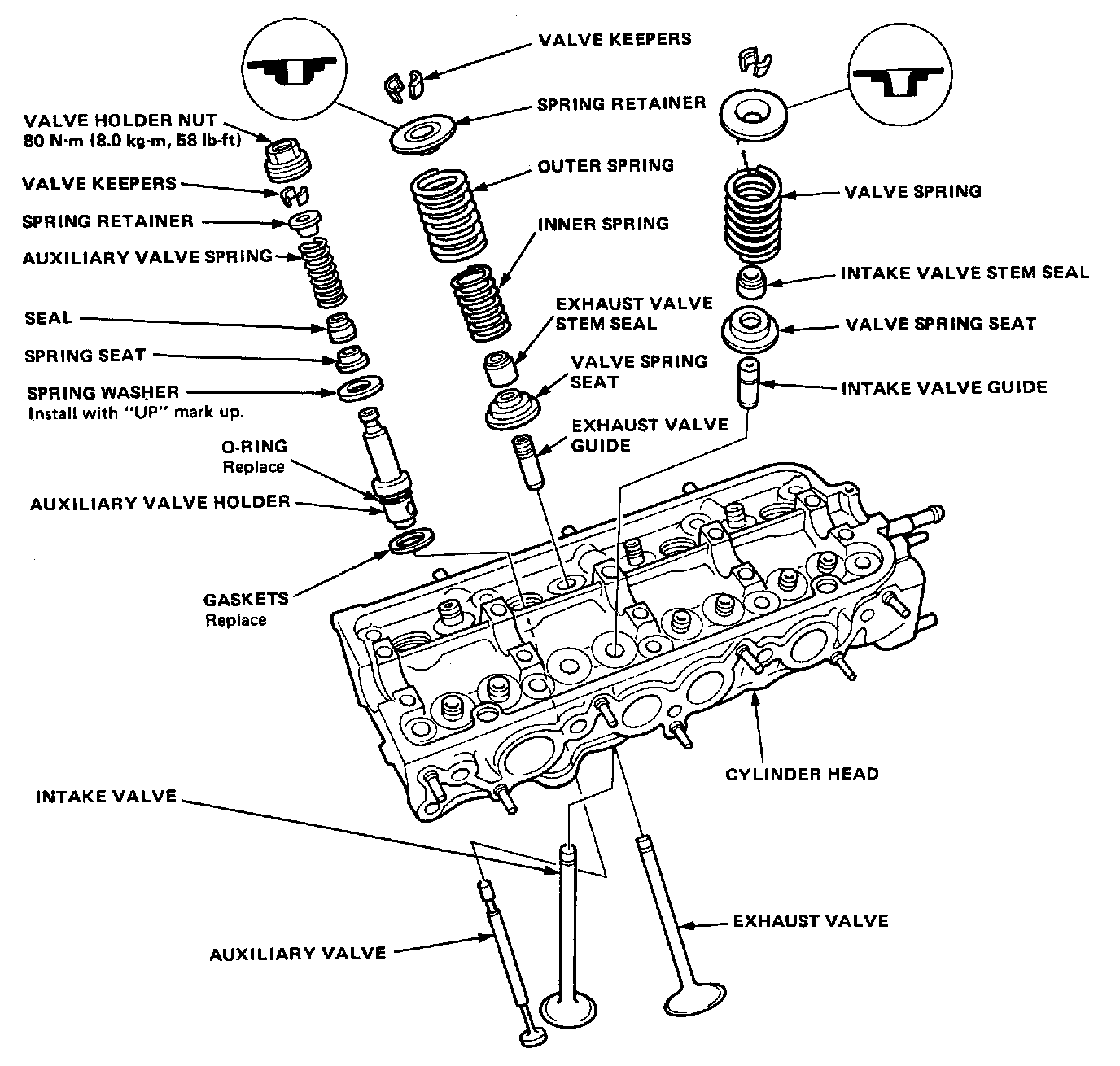

Valves, Guides, Springs And Retainers:

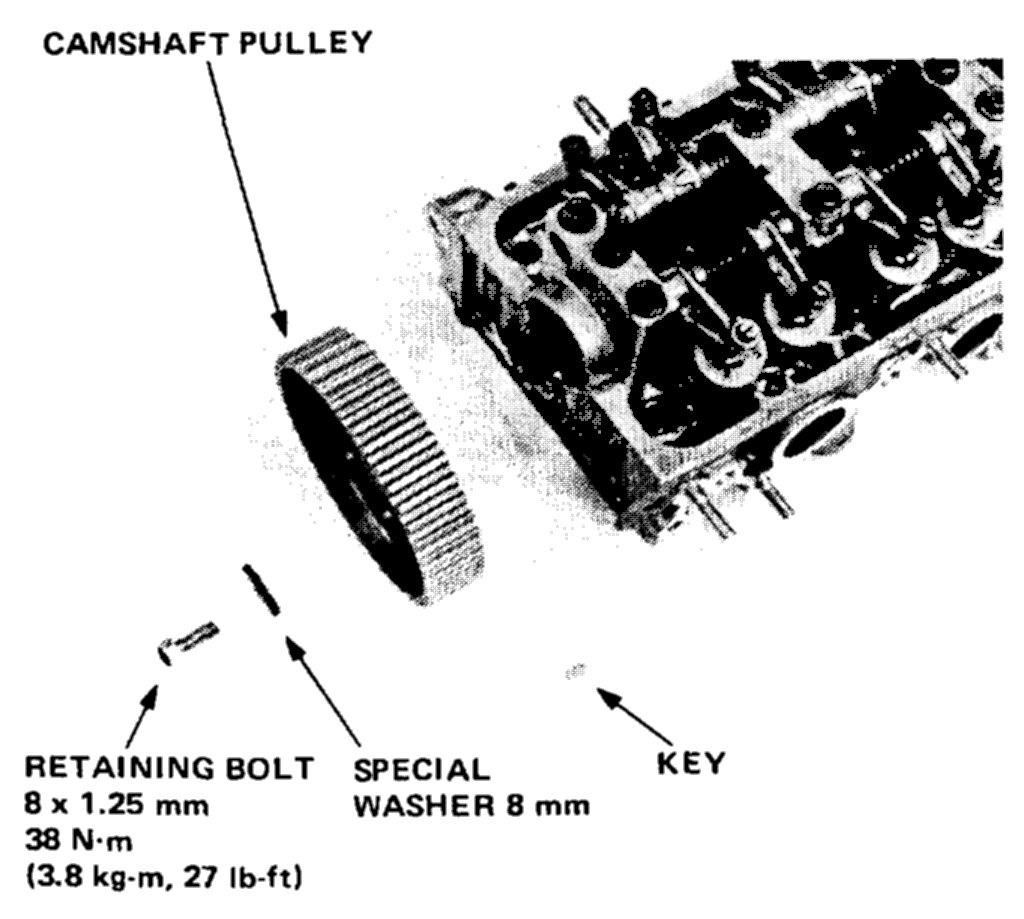

Camshaft Pulley:

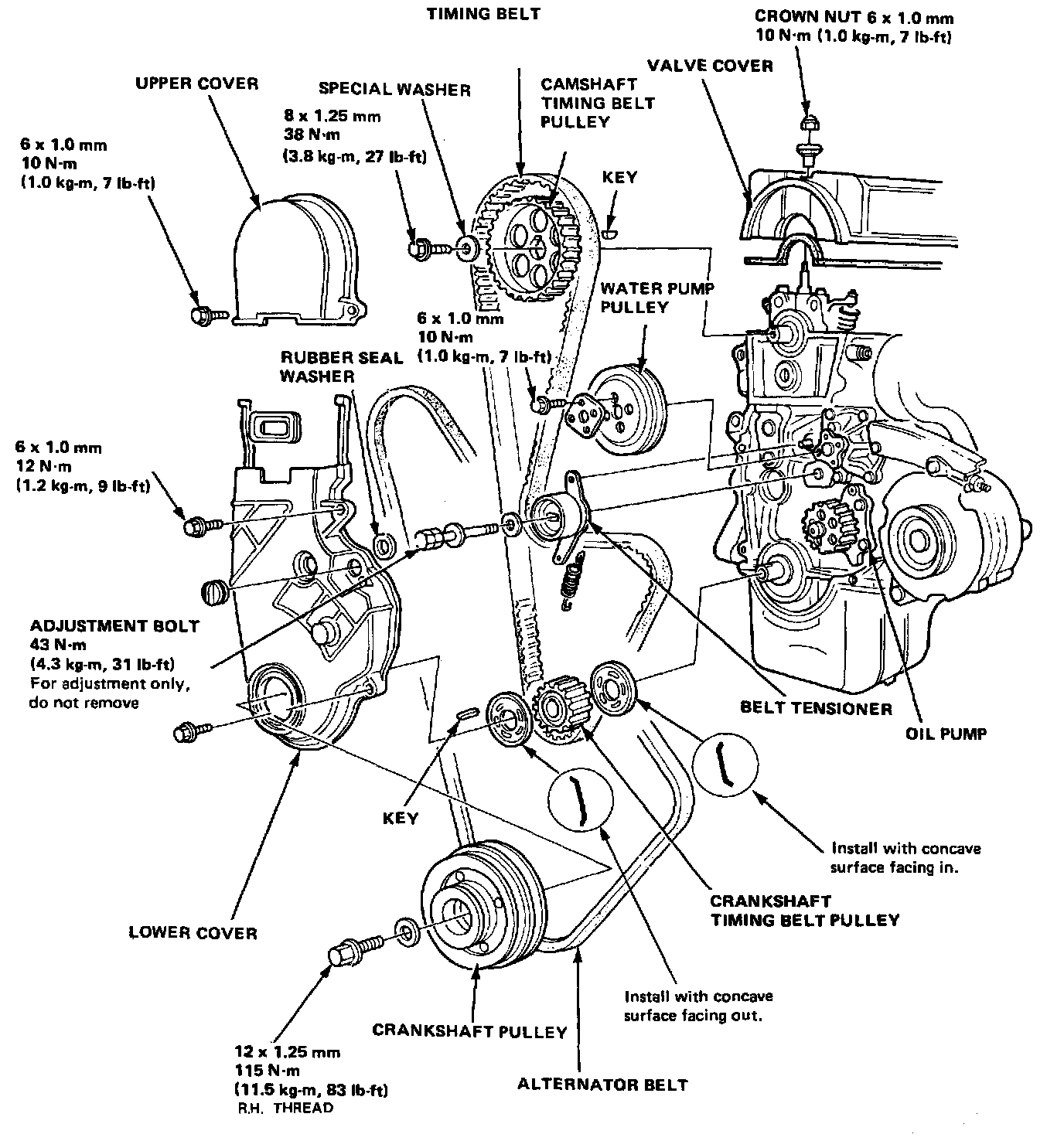

Timing Components:

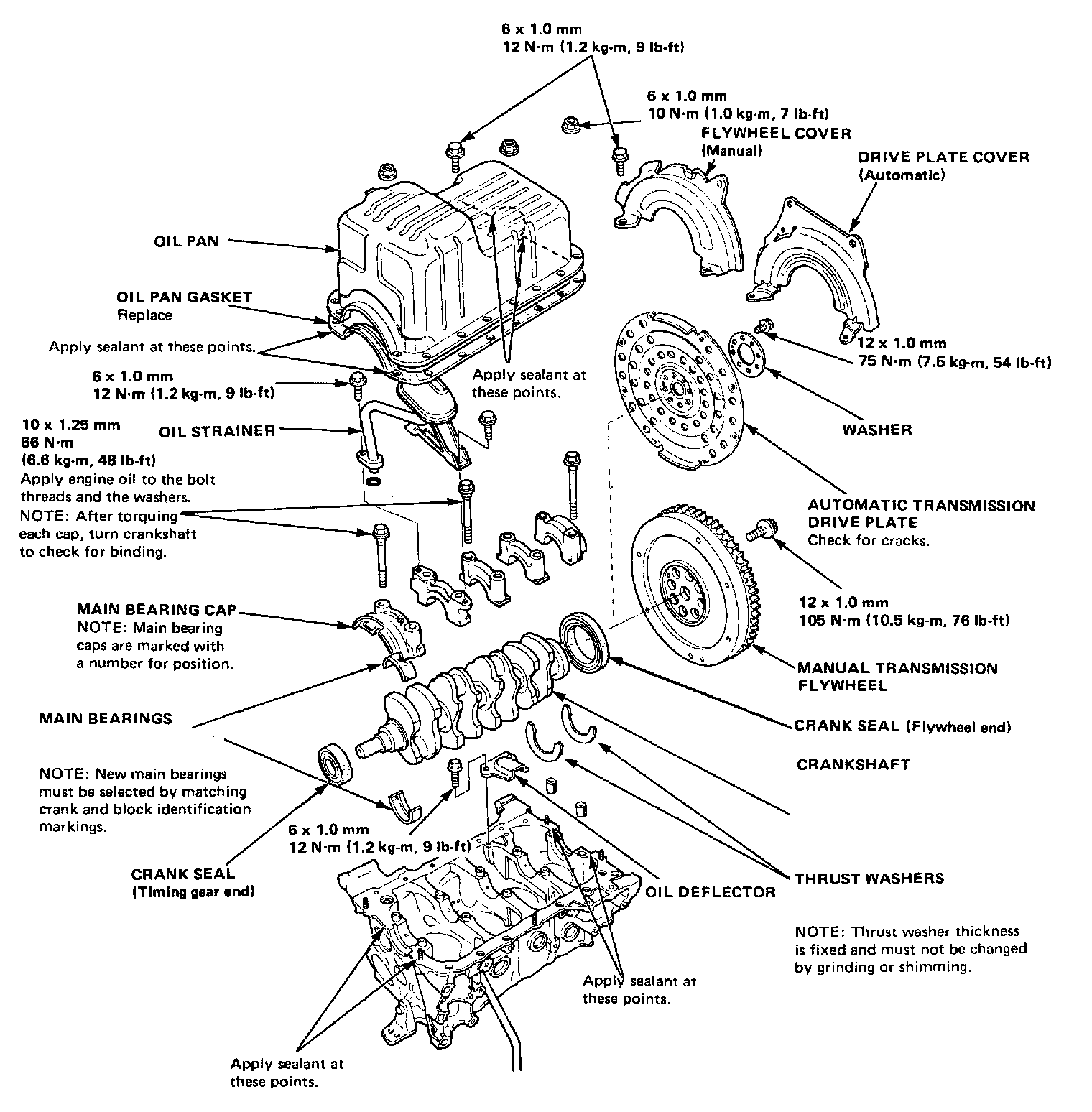

Lower Engine:

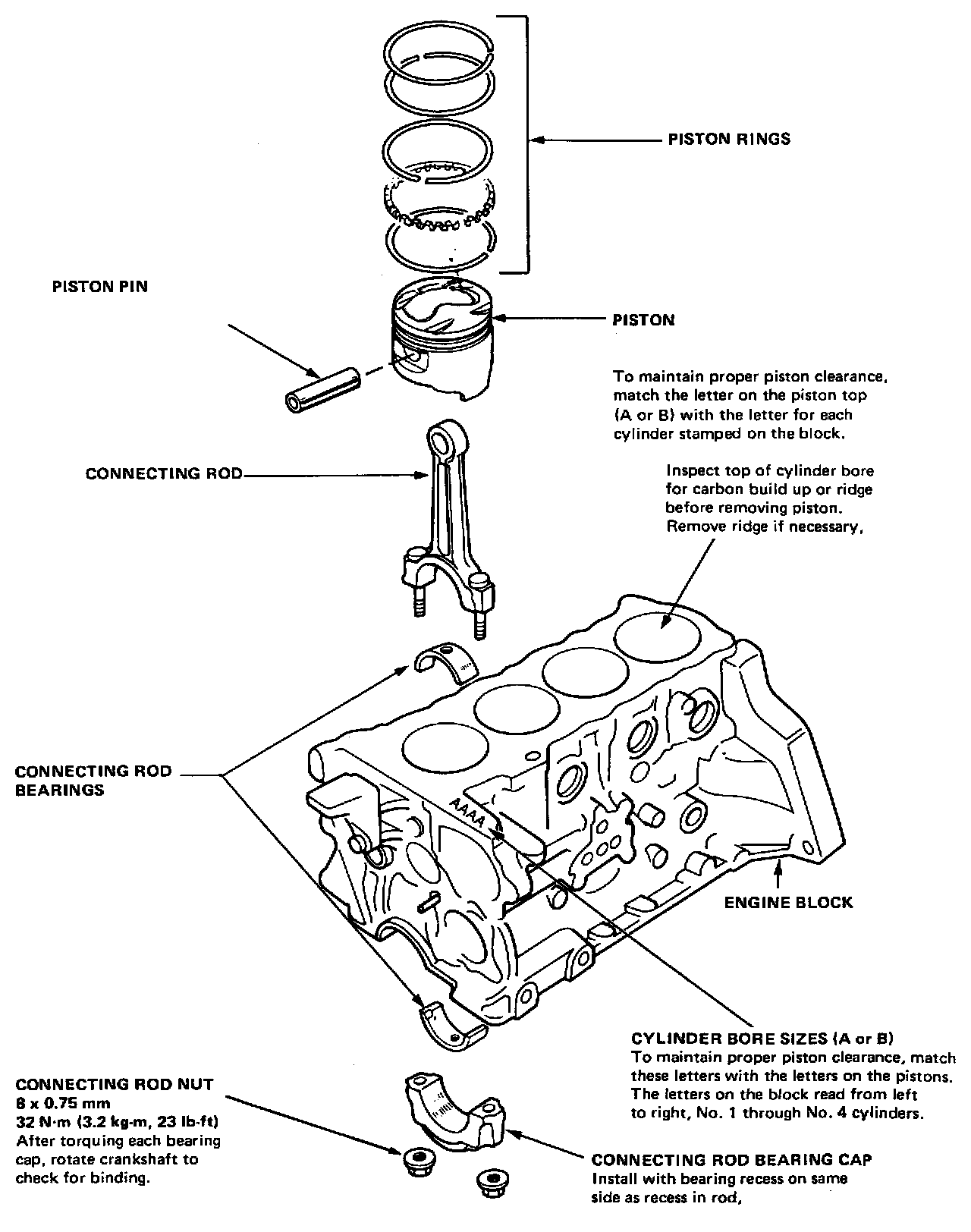

Piston and Connecting Rod:

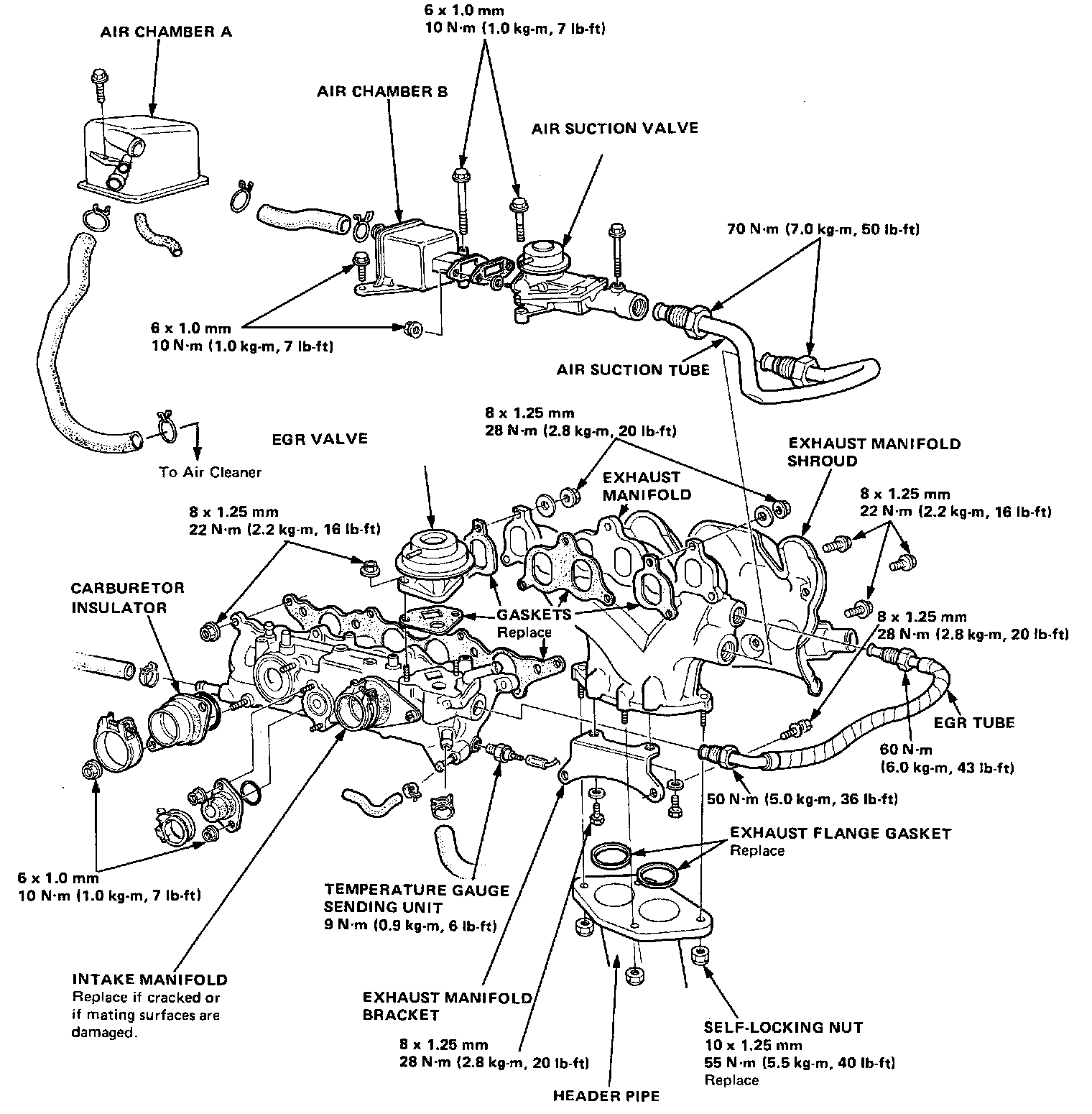

Intake/Exhaust Manifolds And Attachments:
