Torque Specifications

Intake/Exhaust Manifolds And Attachments:

Cylinder Head, Valve Cover:

Rocker Assy, Cam Pulley, Distributor, Thermostat Housing:

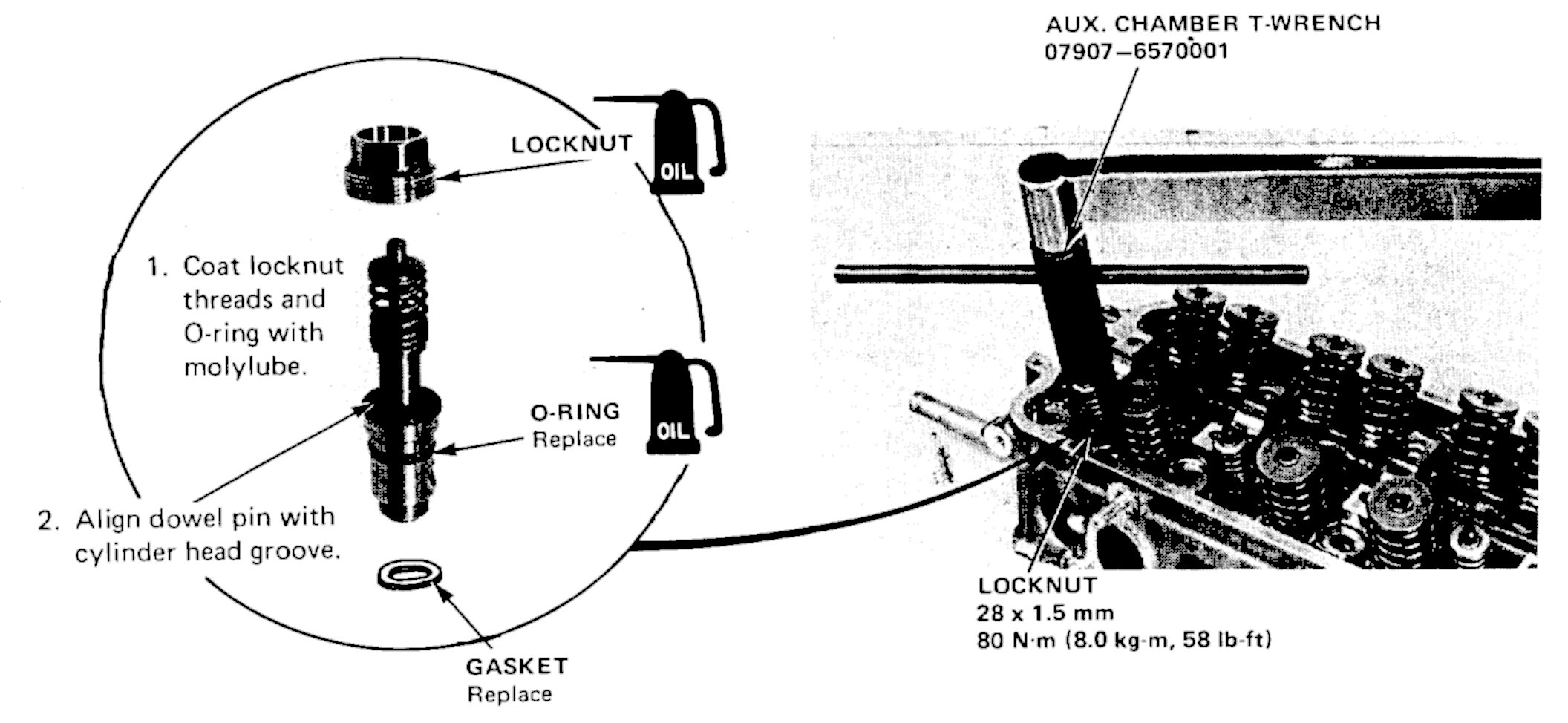

Auxiliary Valve:

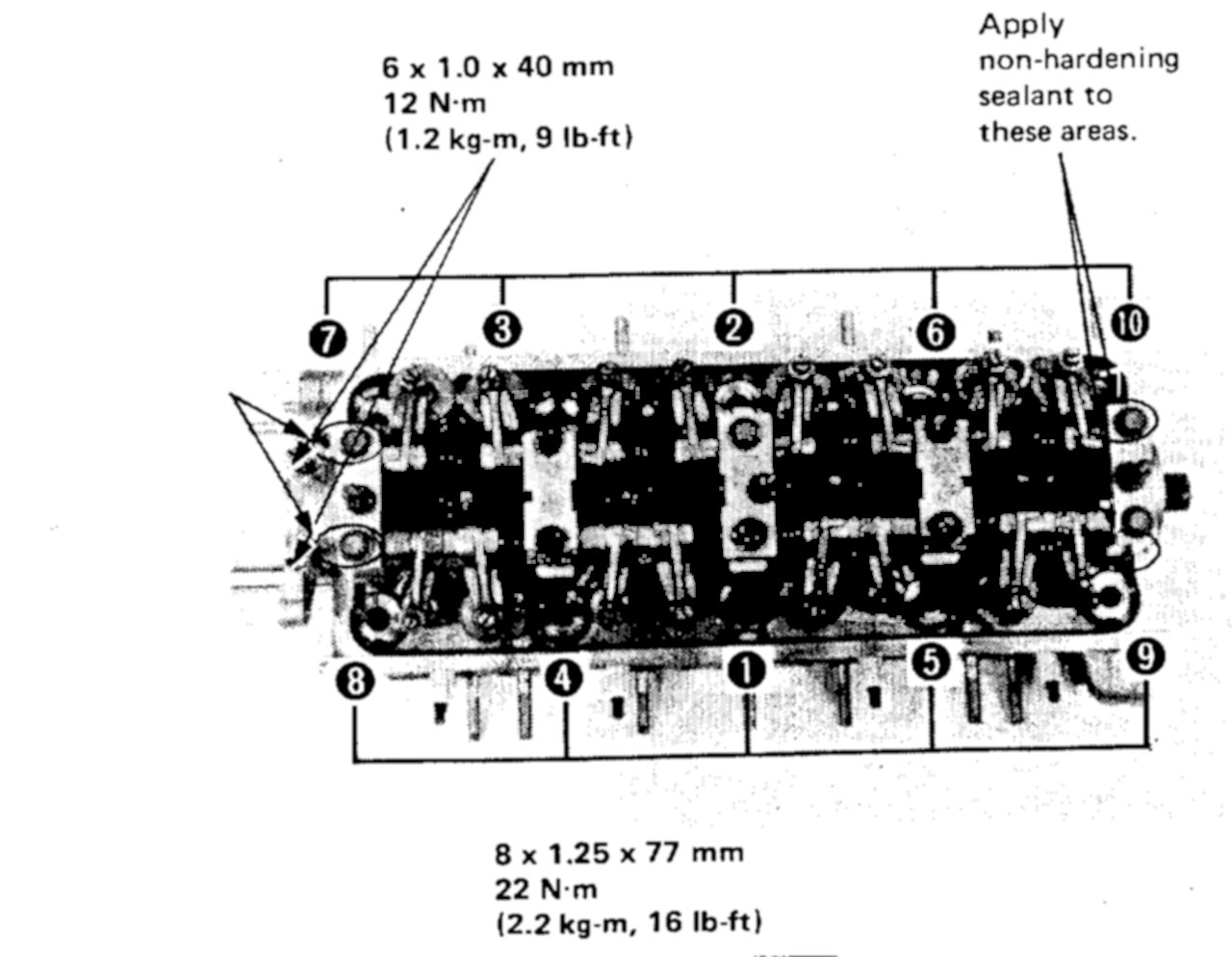

Camshaft/Rocker Assy.- Tighten 2 Turns At A Time In Sequence Shown:

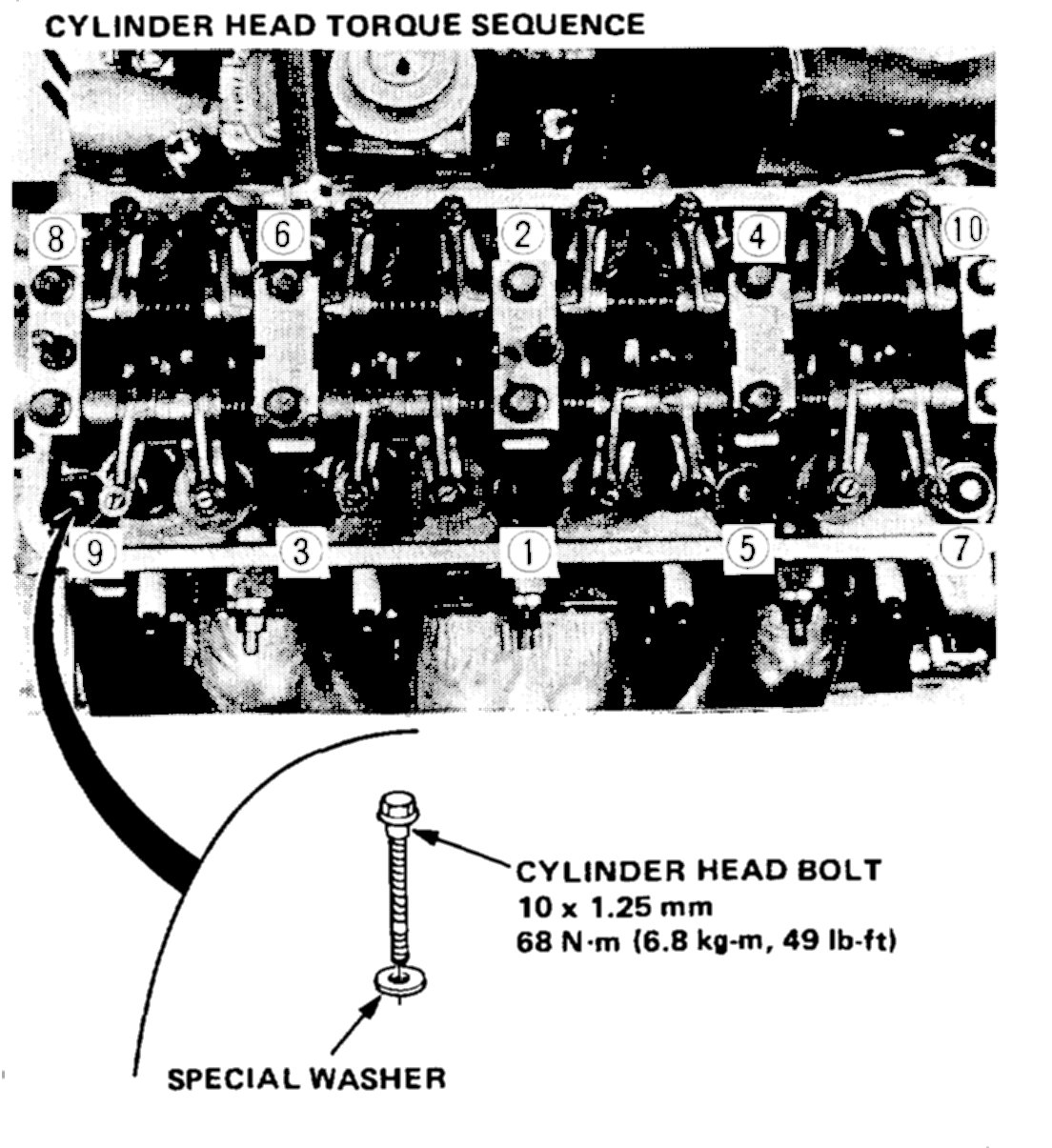

Head Bolt Torque/Sequence: Tighten In 2 Steps:

Timing Components:

Piston and Connecting Rod:

Lower Engine:

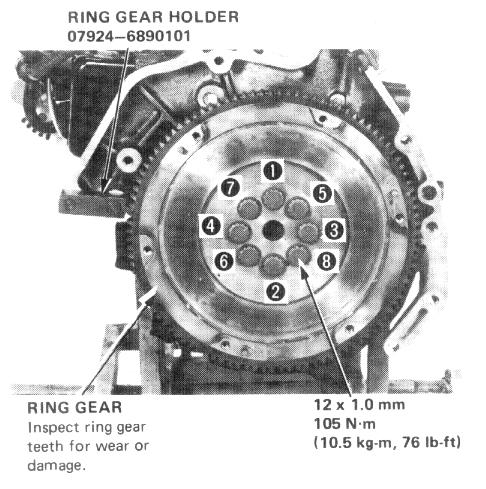

Flywheel Torque/Sequence:

Drive Plate Torque/Sequence:
