Steering System - Power: Description

Power steering is rack and pinion with the power assist proportional to both vehicle speed and steering load. Power assist is high when vehicle speed is low and reduces as vehicle speed increases.

The system consists of a power rack and pinion steering gear, steering pump, fluid filter/reservoir, control unit, vehicle speed sensor and cooler lines and hoses.

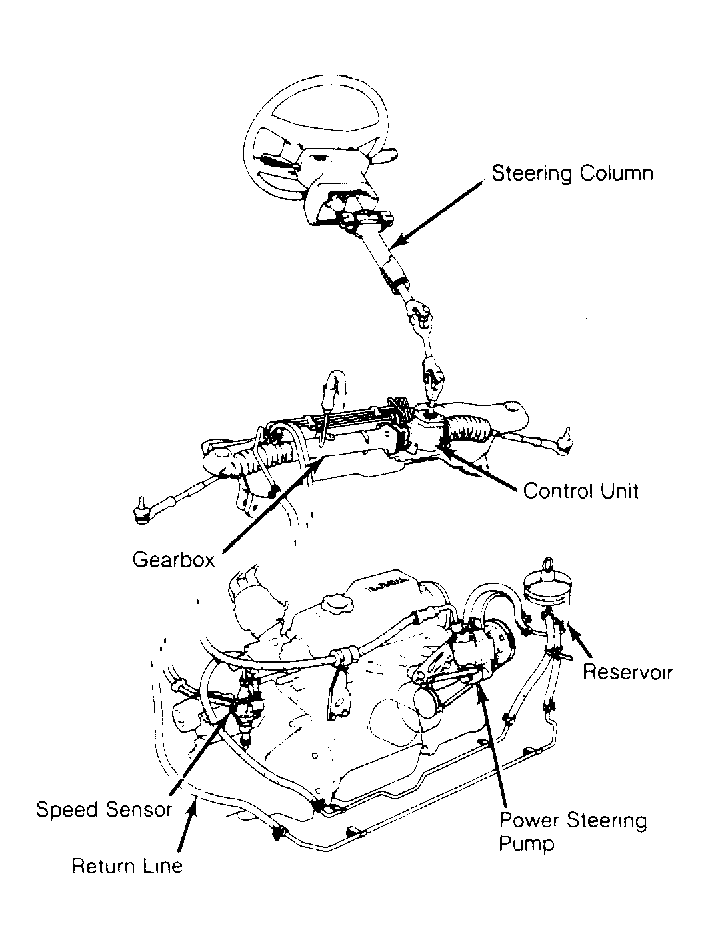

Fig 1: View of Accord Power Steering System Prelude uses same components in a slightly different arrangement.
