Computers and Control Systems: Diagrams

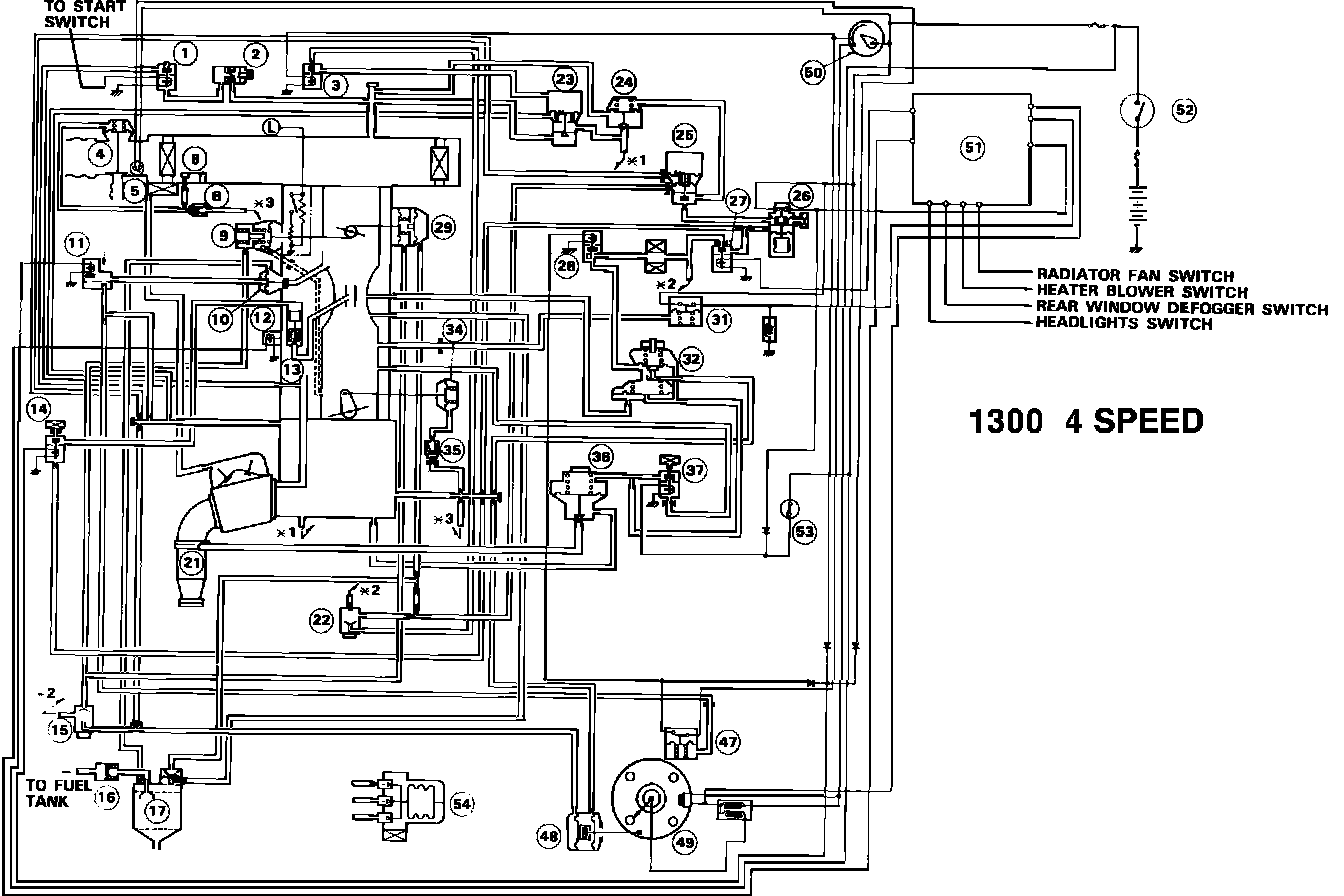

Fig. 102a Emission control vacuum hose routing.:

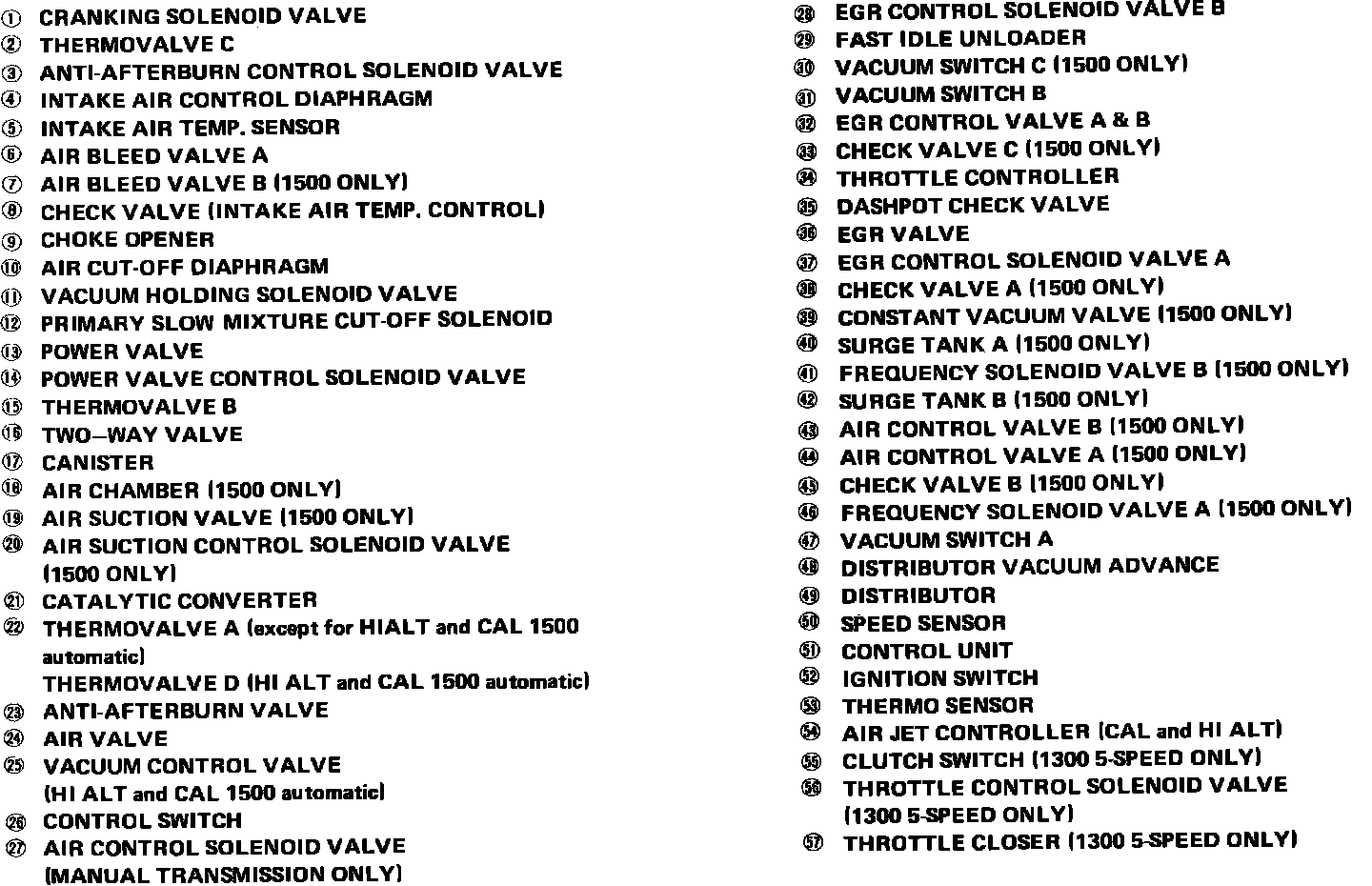

Fig. 102b Emission control vacuum hose routing.:

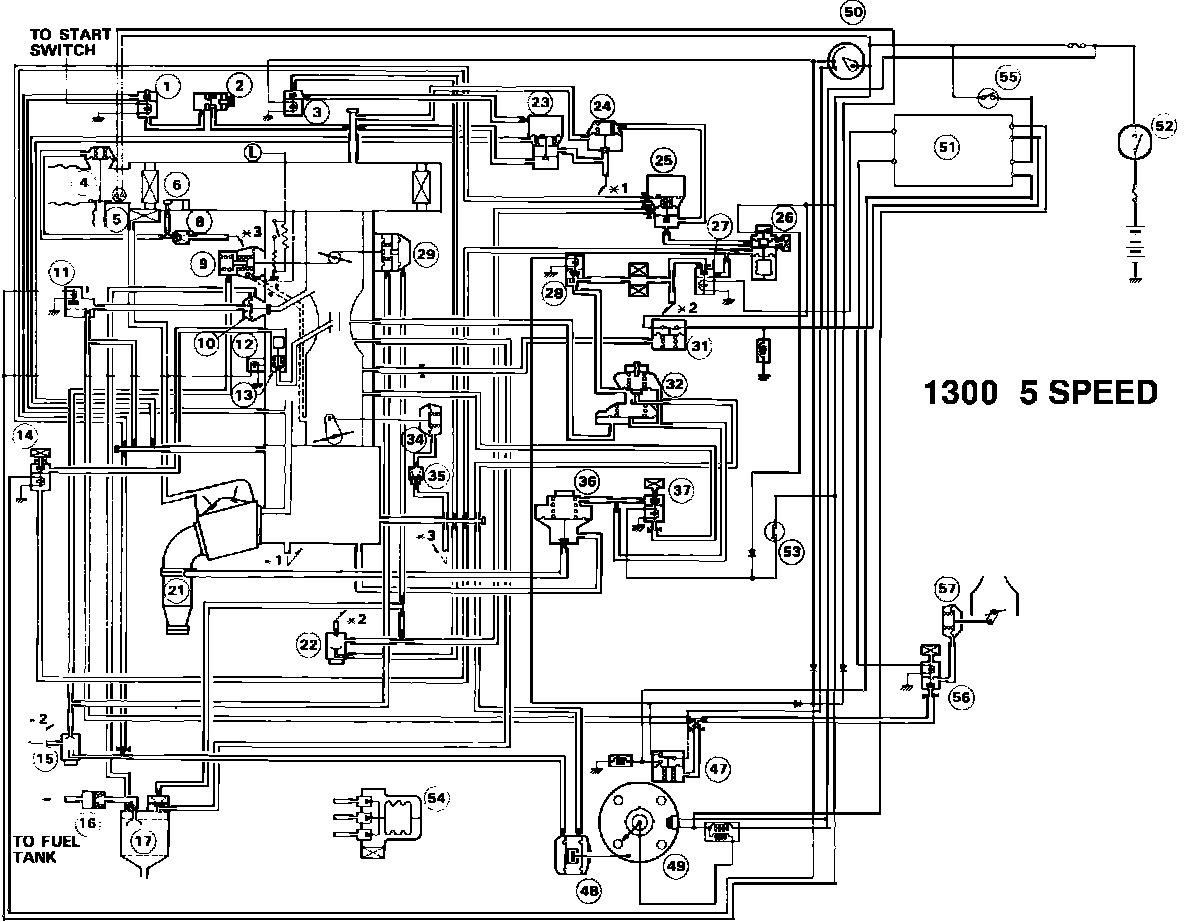

Fig. 102c Emission control vacuum hose routing.:
