Rear

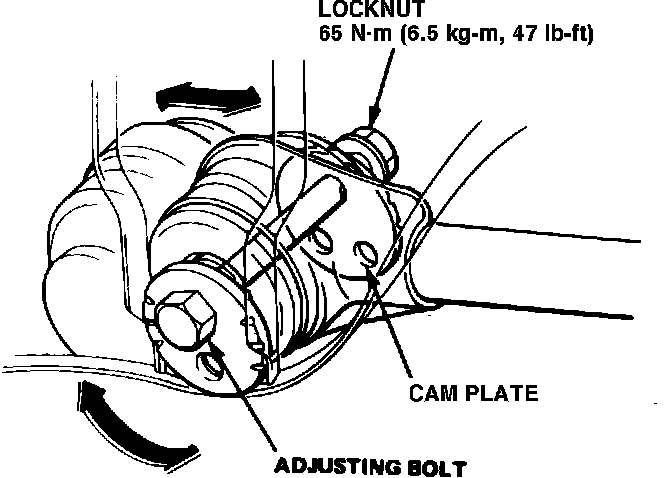

Fig. 5 Rear toe-in adjustment. Prelude less 4 wheel steering & 1984-85 Accord:





Except 1988 Prelude W/4 Wheel Steering

Ensure tires are properly inflated prior to checking or adjusting toe-in.
1. Release parking brake.
2. Loosen locknut in rear radius arm pivot bolt, then turn adjusting bolt, Fig. 5, until toe-in is within specifications.
3. Torque locknut to 47 ft. lbs.
