Frequency Valve: Locations

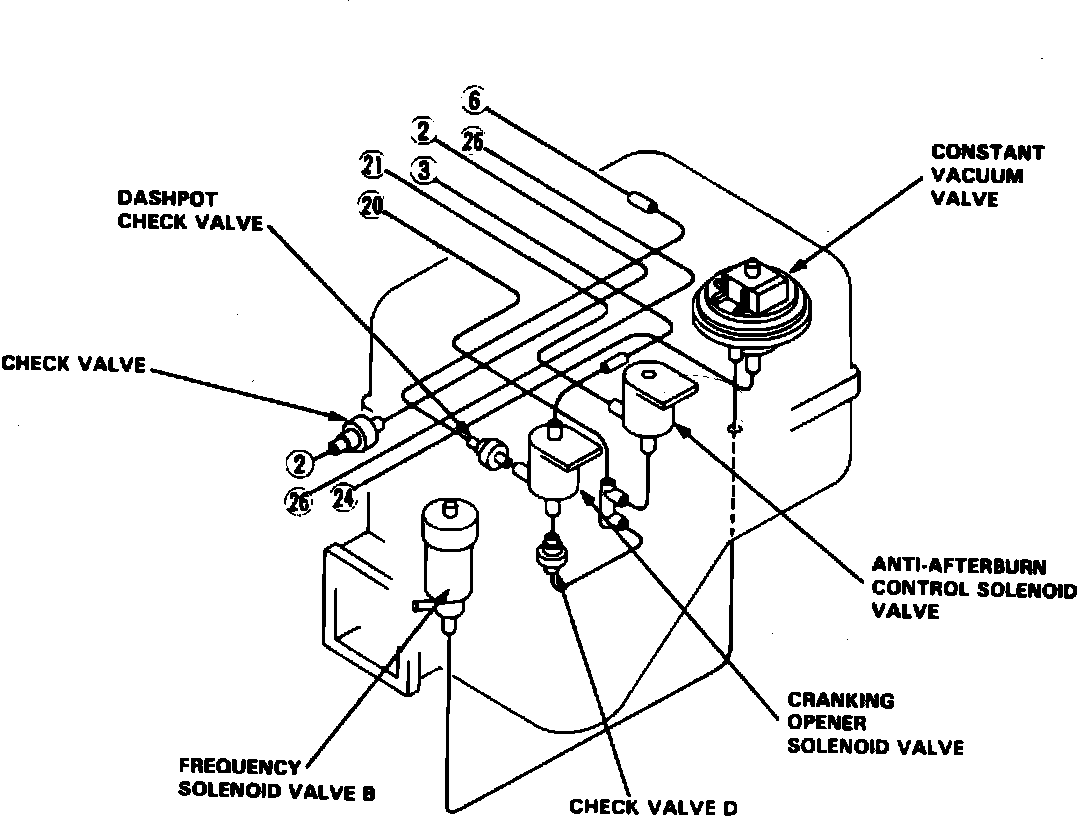

Vacuum Components & Connections (Part 1 Of 3).:

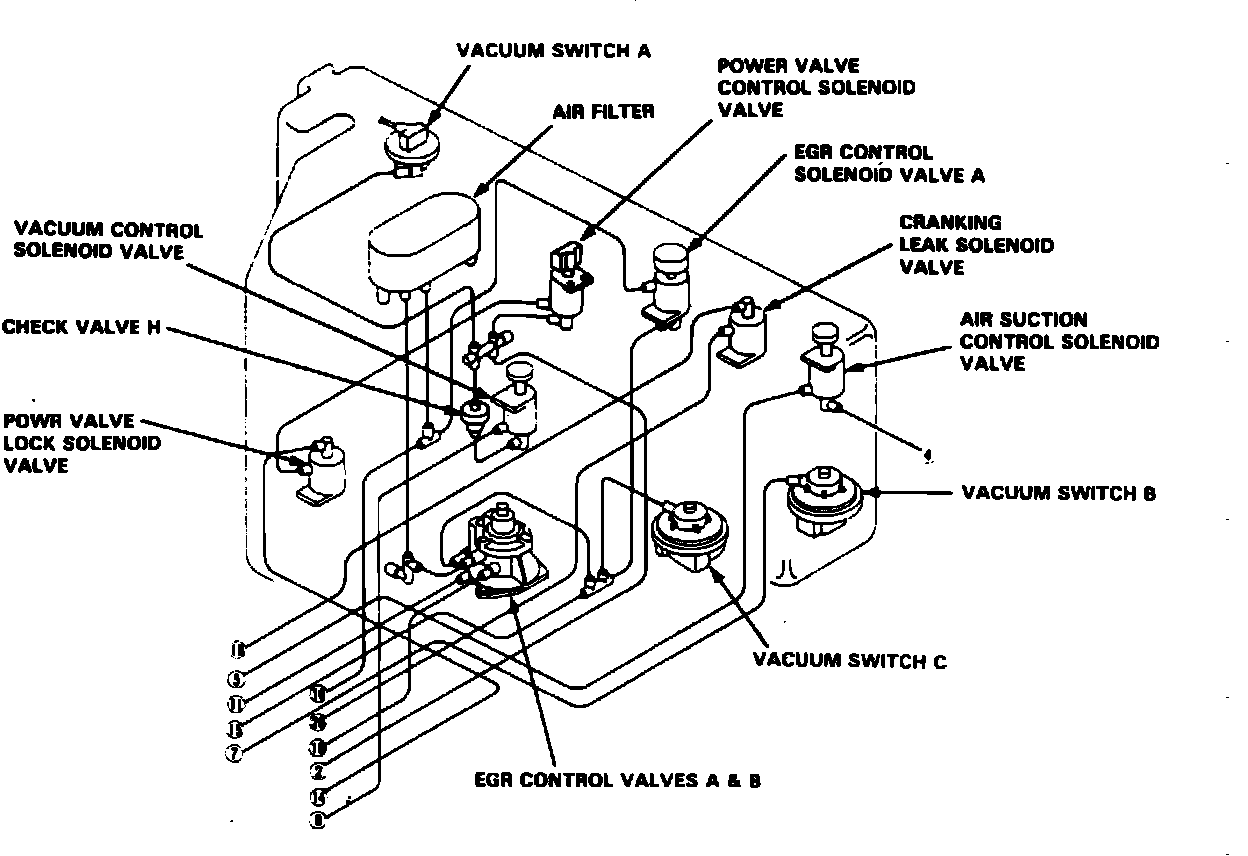

Vacuum Components & Connections (Part 1 Of 3).:

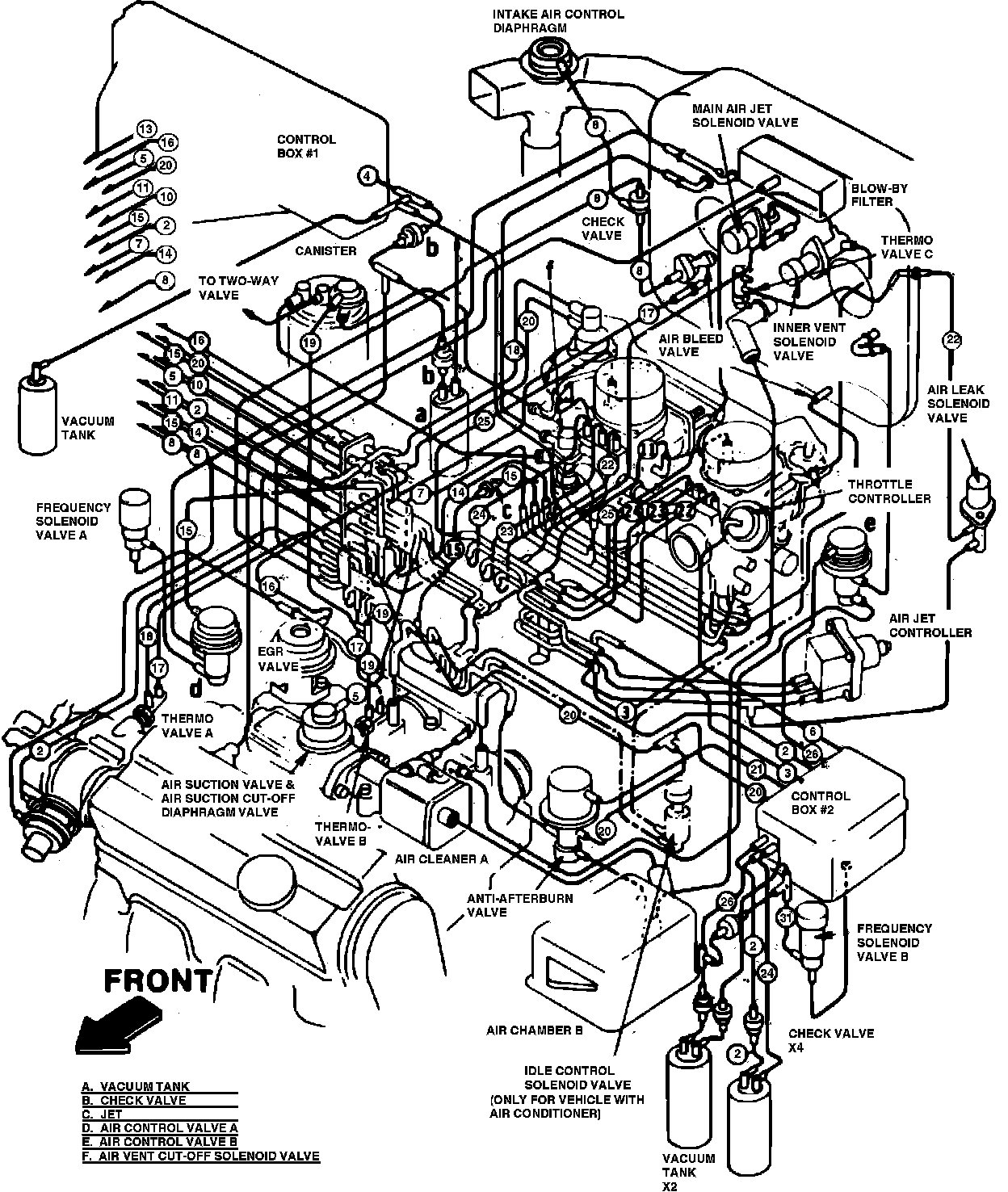

Vacuum Components & Connections (Part 1 Of 3).:




In Control Box 2

Applicable to: 1987 Prelude w/Carbureted Engine
