Barometric Pressure Sensor: Specifications

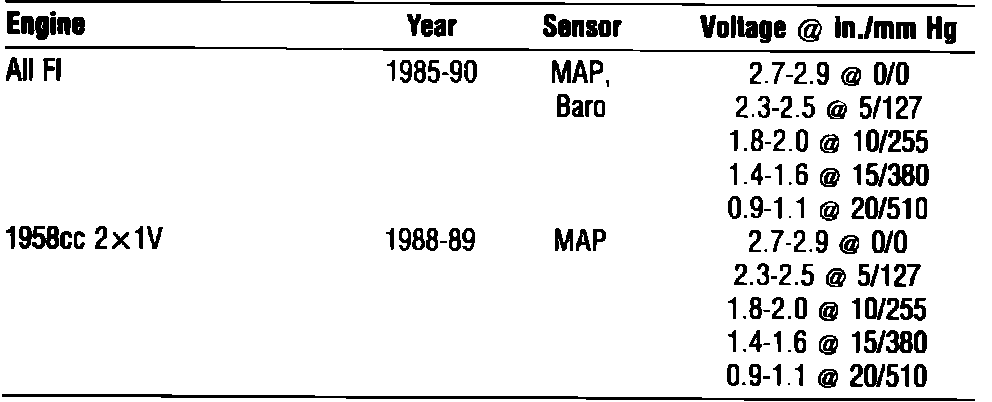

Fig. 002 Manifold Absolute, Vacuum, and Barometric Pressure Sensors:
