Control Box & Vacuum Connection Reference Diagram. W/Fuel Inj.

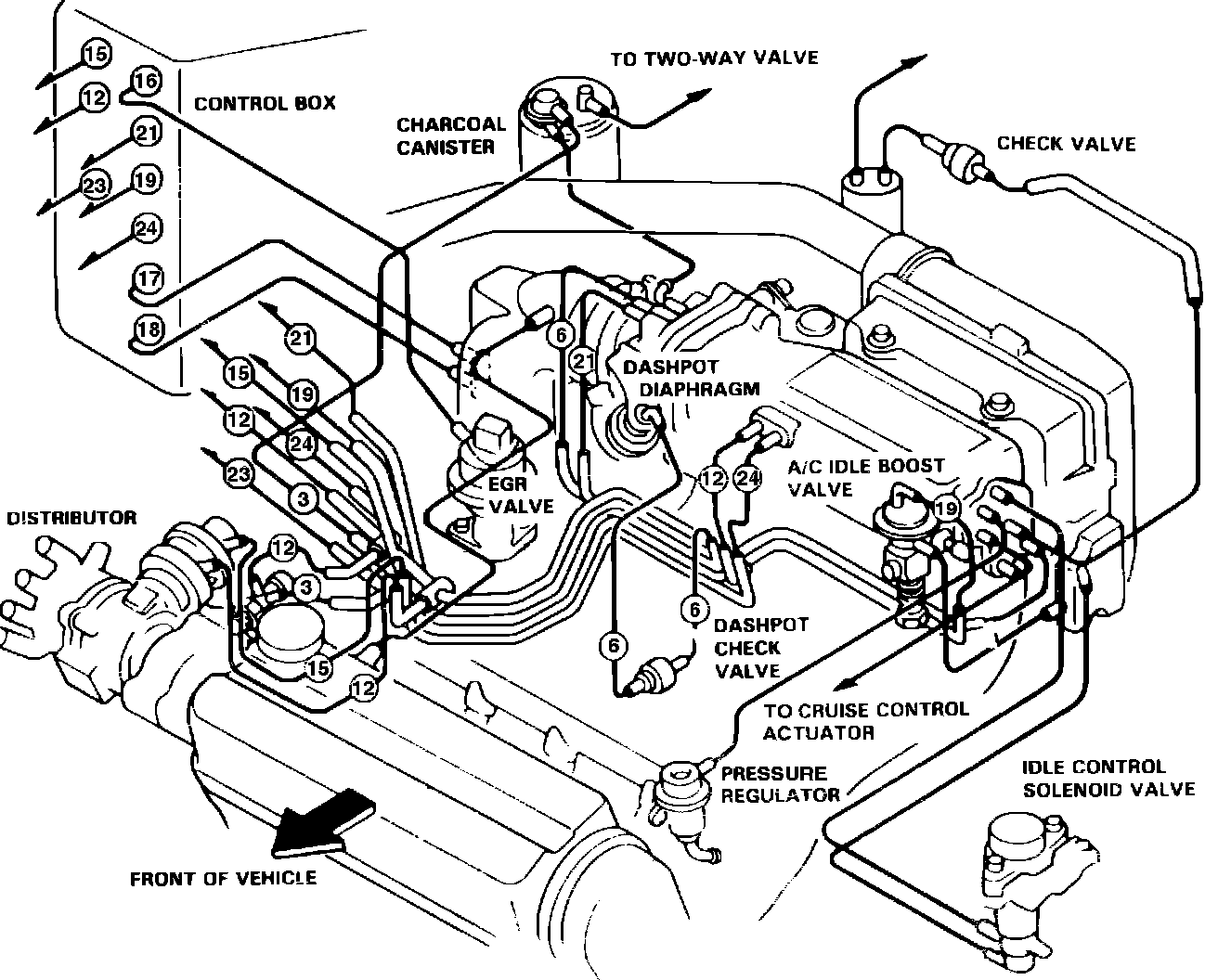

Fig. 24 Control Box & Vacuum Connection Reference Diagram. W/Fuel Injected Engine:

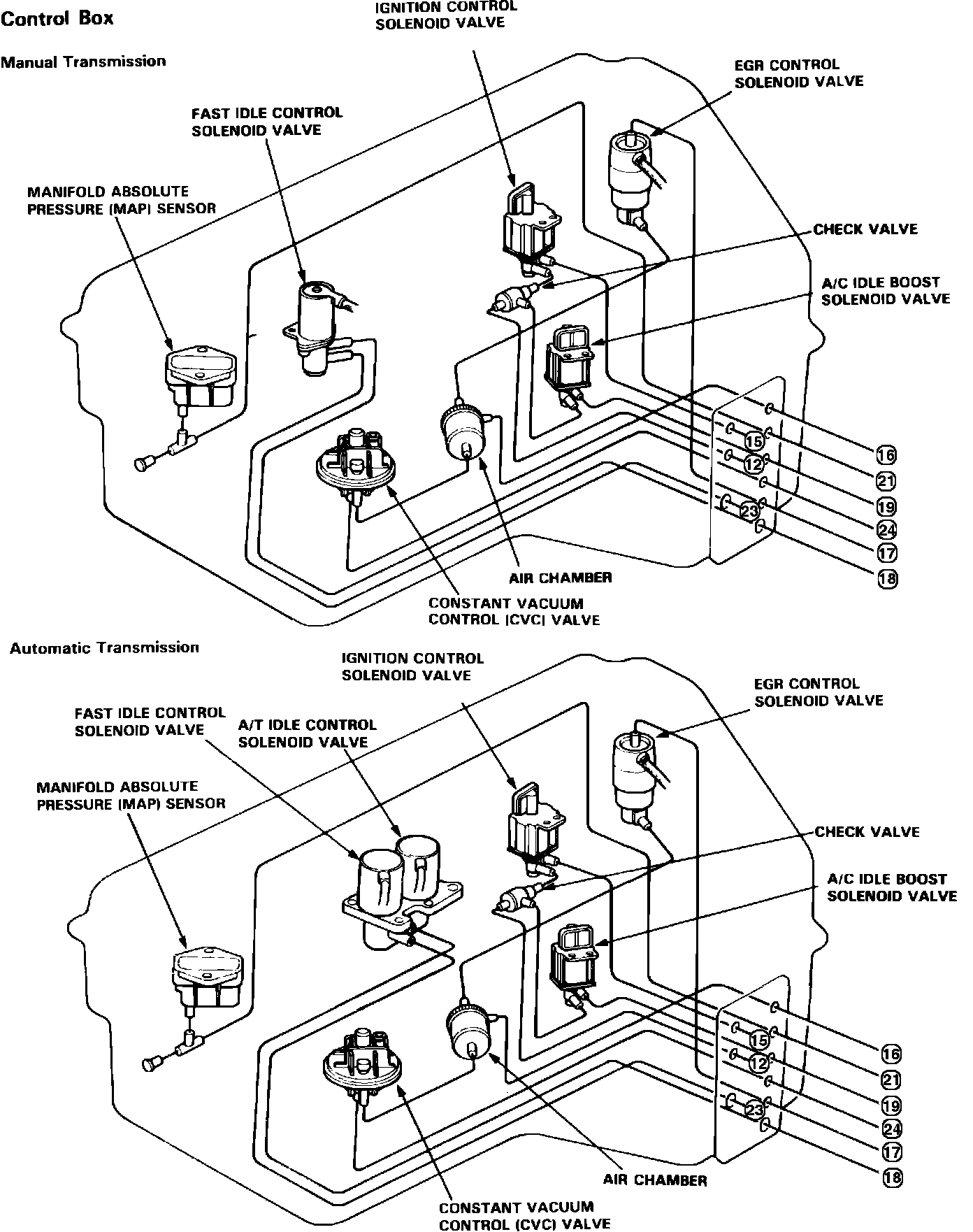

Fig. 24 Control Box & Vacuum Connection Reference Diagram. W/Fuel Injected Engine:
