Driver's Switch Inputs Test

NOTE: Some wires have been assigned a superscript to distinguish them from other wires of the same color. For example, the Yellow/Green(1) wire is not the same as the Yellow/Green(2) wire.

Turn ignition off. Remove driver's door panel. Unplug 14-pin and 1-pin connectors from driver's switch. See Fig 1 . Using a DVOM, perform appropriate switch input tests in Fig 2 . If all input test results are okay, inspect connector and terminals for damage and proper fit. If connector is okay and power windows still malfunction, replace driver's switch.

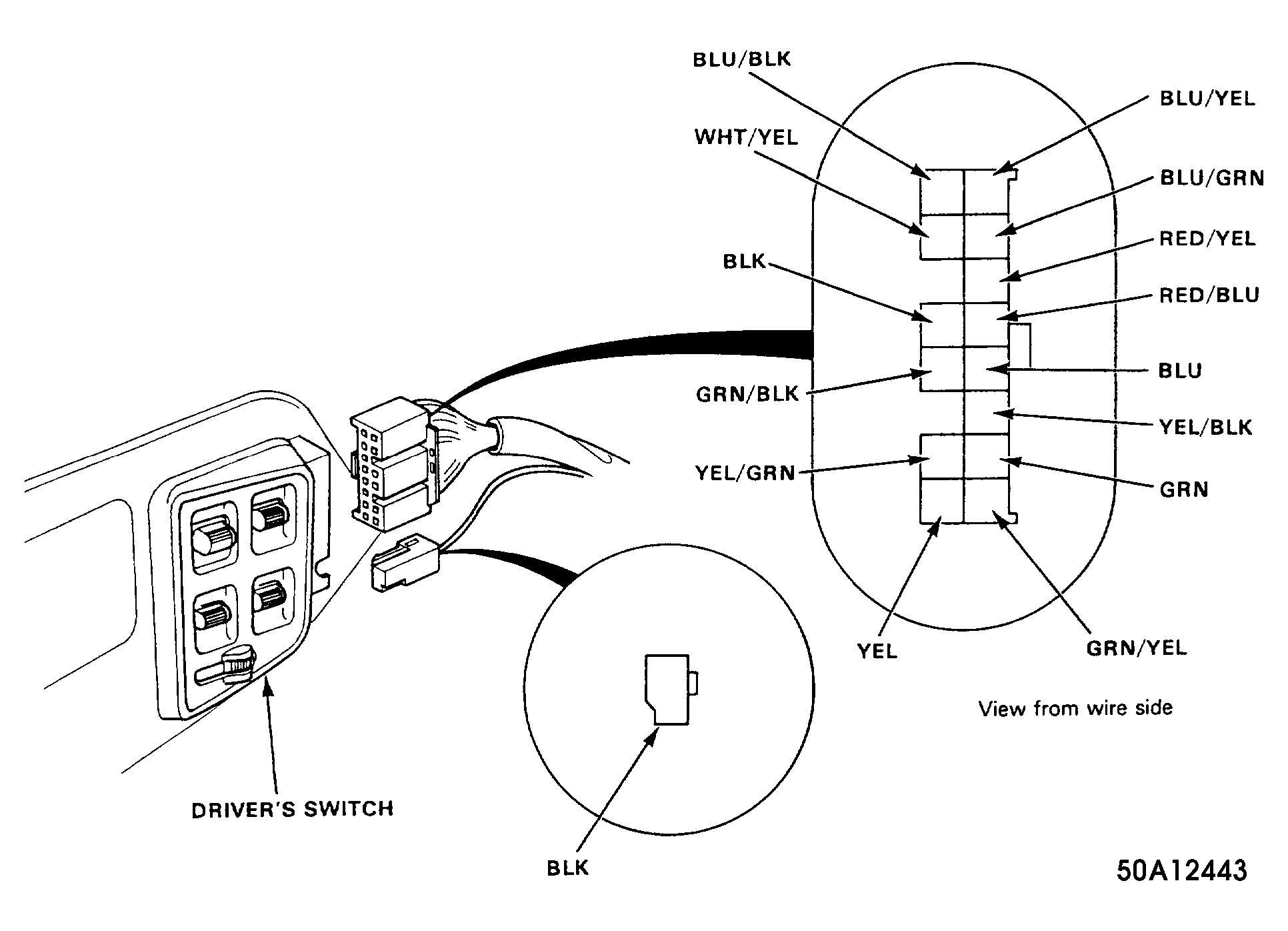

Fig 1: Driver's Switch Input Test Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Numbers 1 through 7 in Driver's Switch Input Test, 4 refer to test number, not terminal numbers.

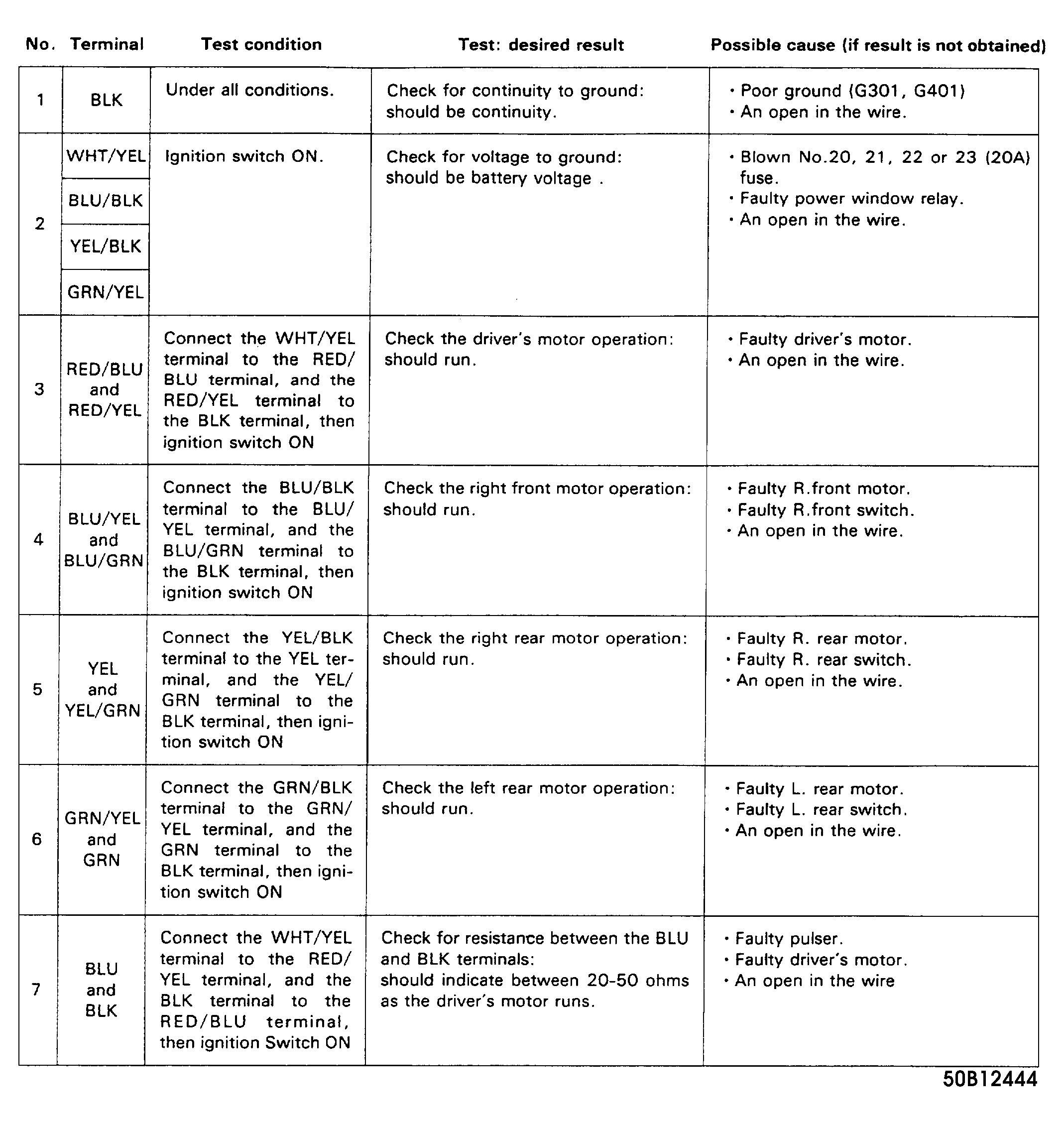

Fig 2: Driver's Switch Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
