Dashpot Rpm
DASHPOT RPM ADJUSTMENT
Application
RPM
Accord
1400-2000
Prelude
Automatic
1400-2400
Manual
1700-2700
Fig 1: Dashpot RPM Adjustment Location (Prelude)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

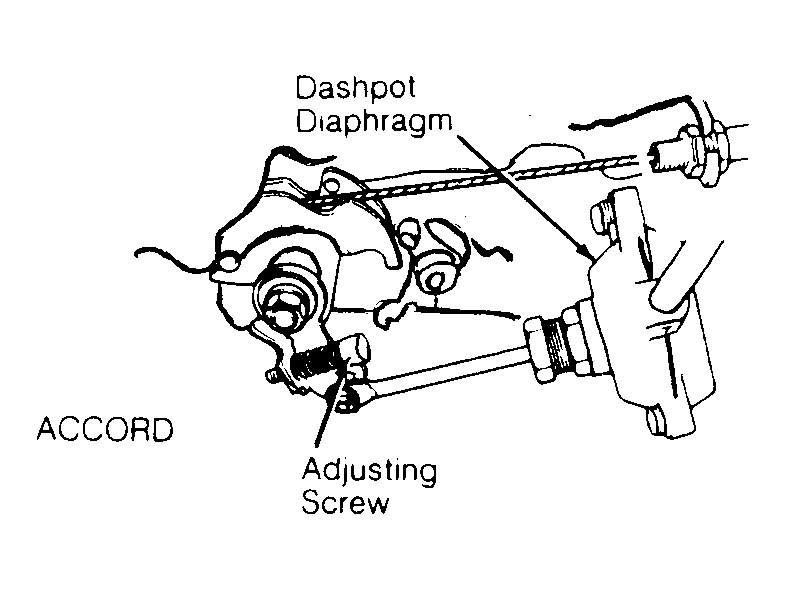

Fig 2: Dashpot RPM Adjustment Location (Accord)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
