Torque Specifications

Intake Manifold:

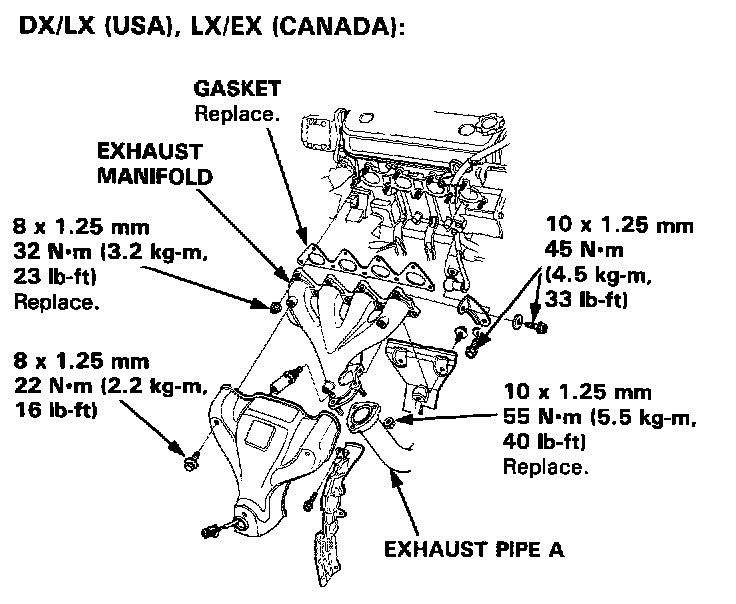

Exhaust Manifold:

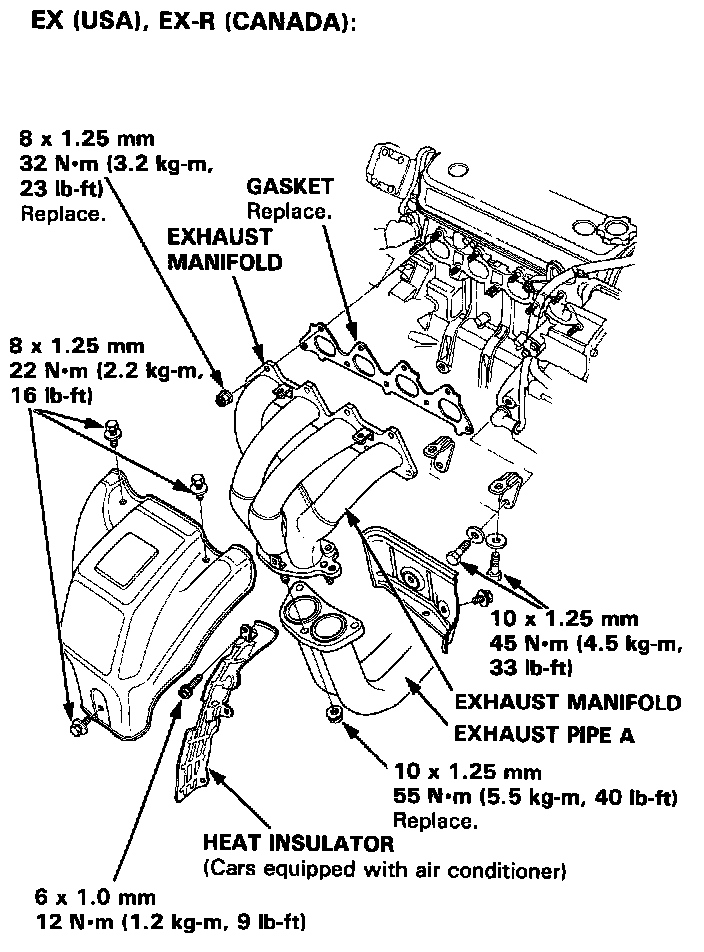

Exhaust Manifold:

Cylinder Head/Valve Train

Torque And Tightening Sequence:

Camshaft/Rocker Arms and Camshaft Seals/Pulley

Cylinder Head Bolt Loosening Sequence:

Cylinder Head Bolt Torque Sequence:

Cylinder Head Torque Sequence and Torque Value

Tighten the cylinder head bolts sequentially in three steps.
1st step torque: 40 Nm (4.0 kg-m, 29 lb ft)
2nd step torque: 70 Nm (7.0 kg-m, 51 lb ft)
3rd step torque: 108 Nm (10.8 kg-m, 78 lb ft)

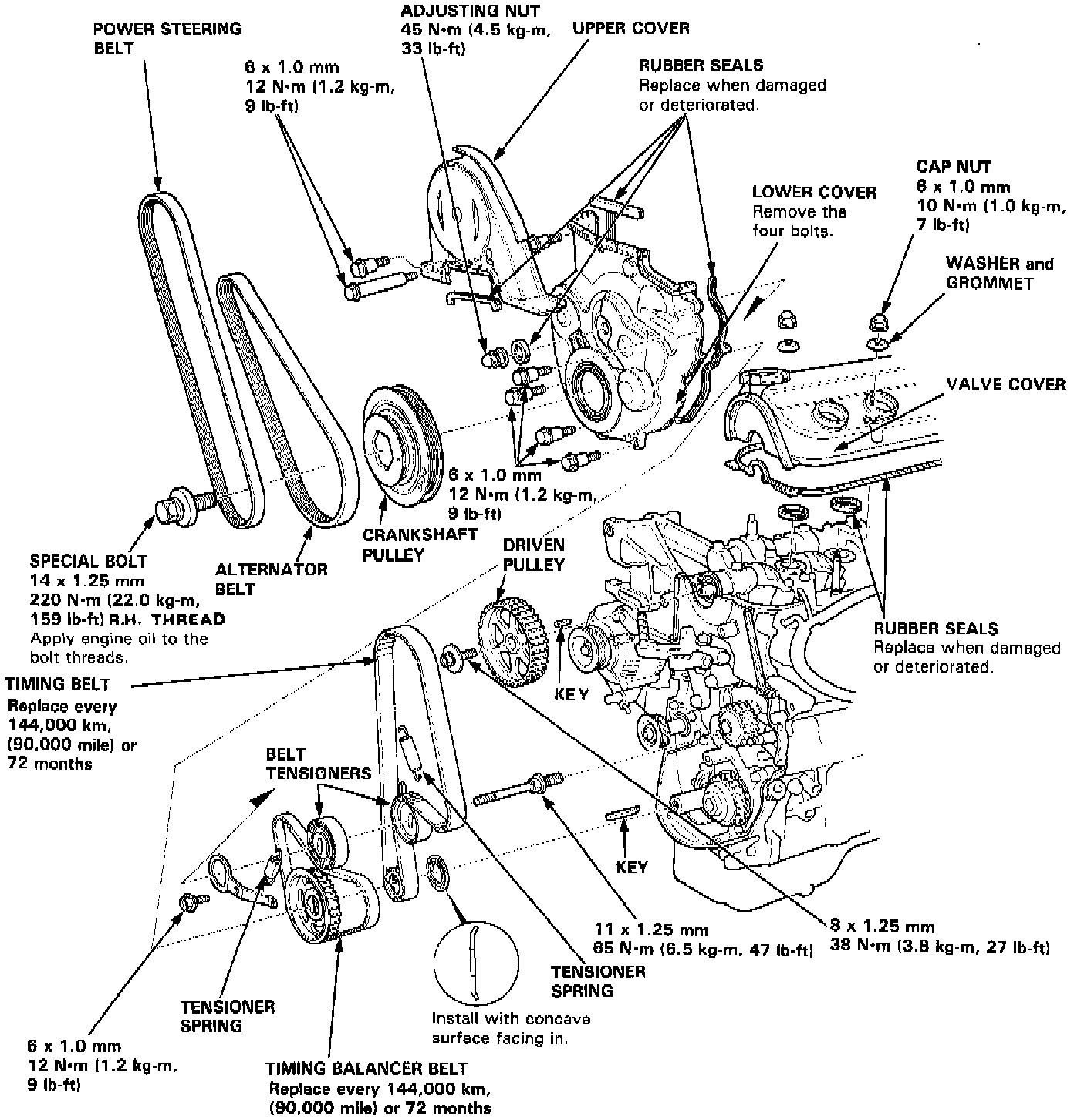

Timing Components:

Torque Sequence:

MAIN BEARING CAP BOLTS
First step: 30 Nm (22 lb ft)
Final step: 72 Nm (52 lb ft)

CONNECTING ROD CAP NUTS
Torque: 47 Nm (34 lb ft)

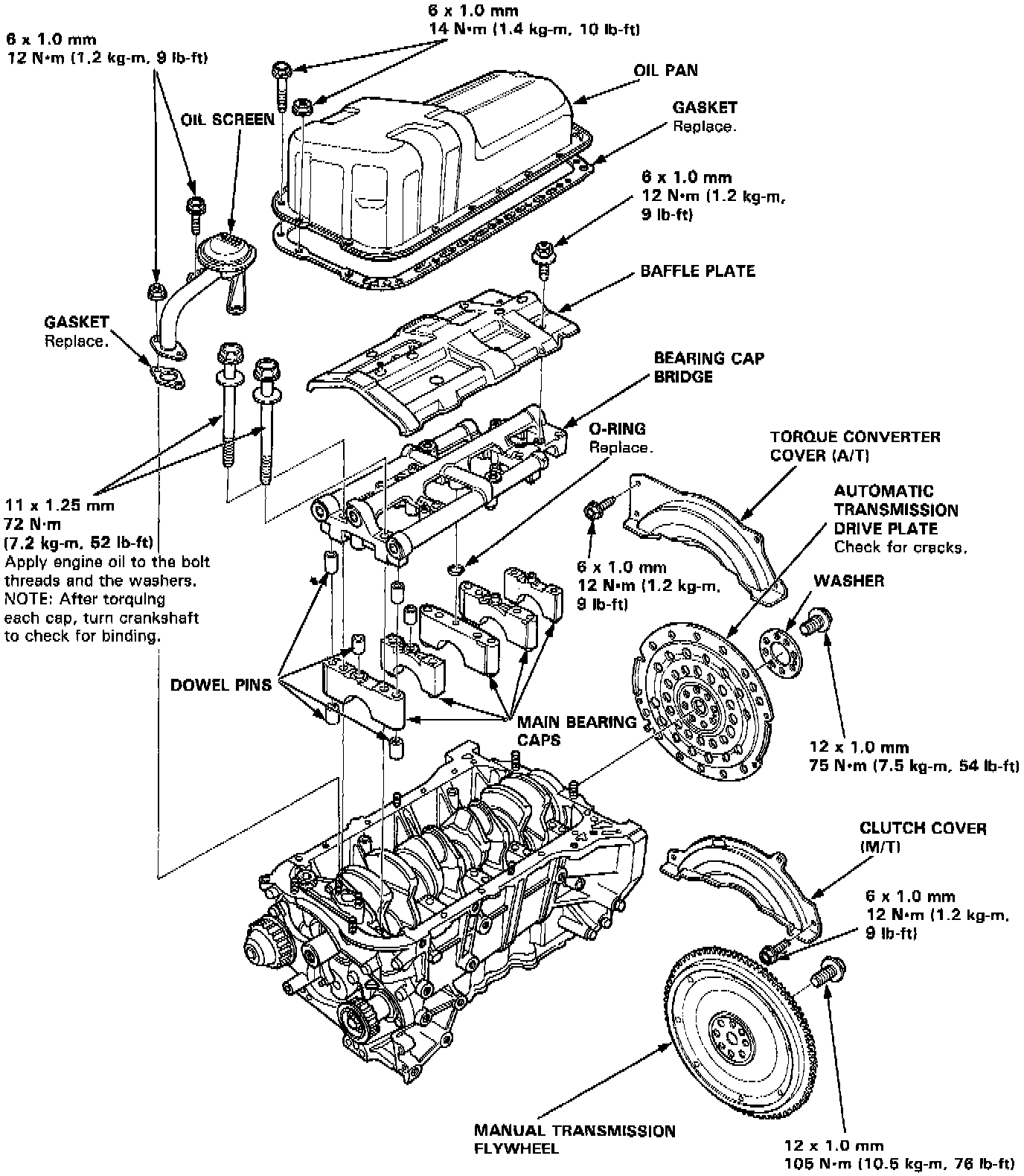

BAFFLE PLATE
6 X 1.0 mm bolt: 12 Nm (9 lb ft)

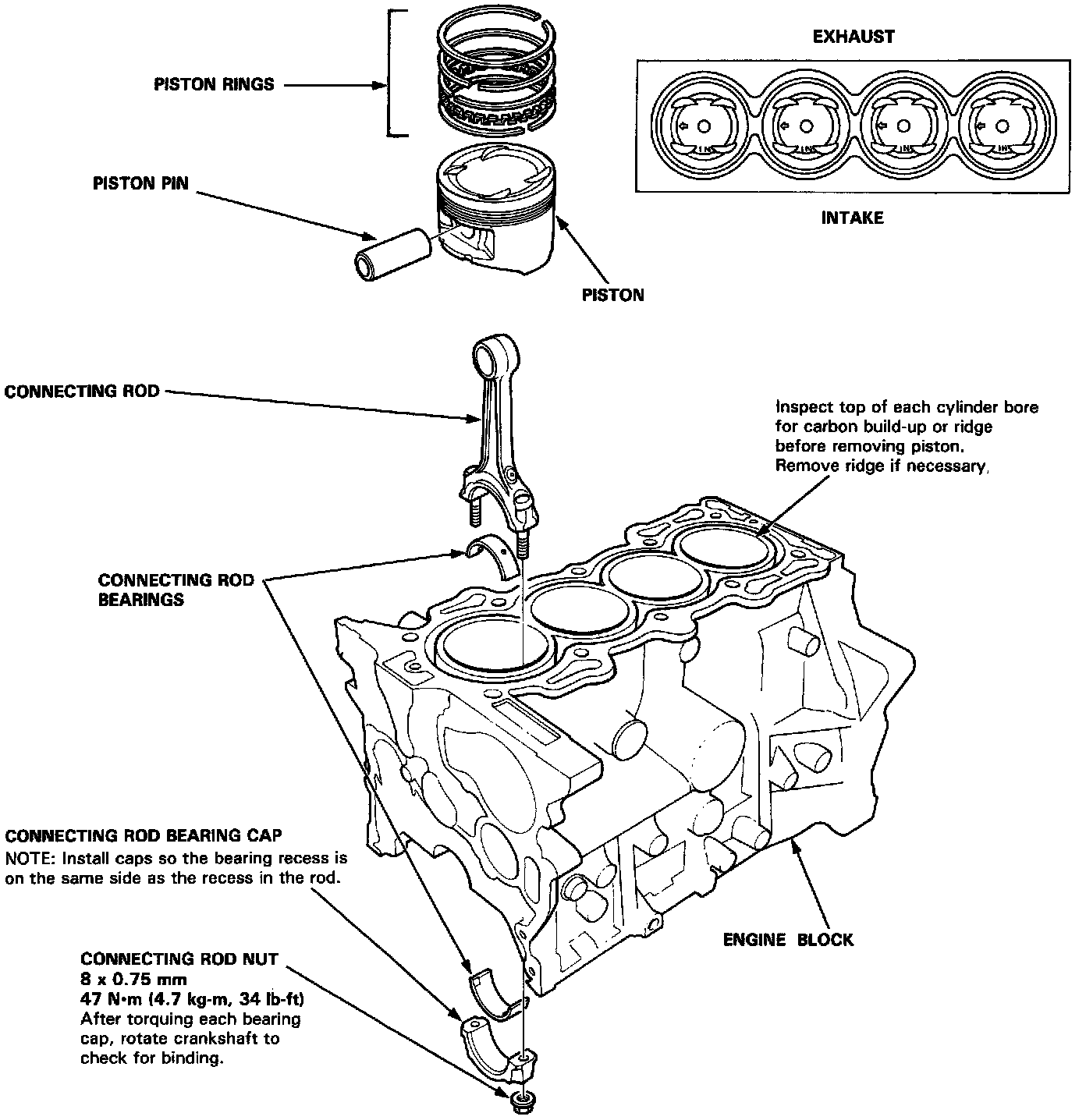

Pistons and Rods View:

Lower End View:

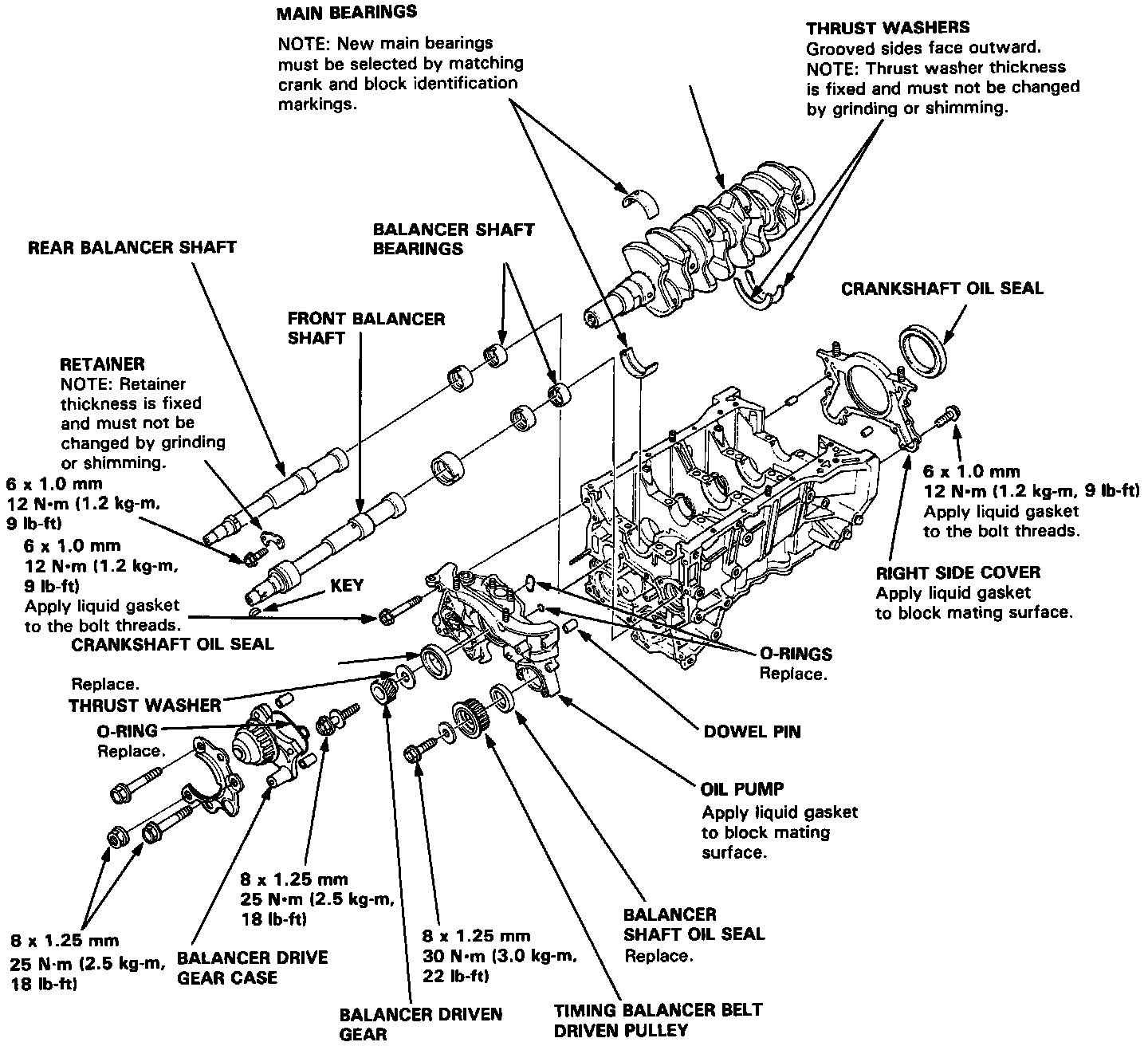

Shafts and Bearings View:
