Exhaust Gas RECIRCULATION (EGR) System: Notes

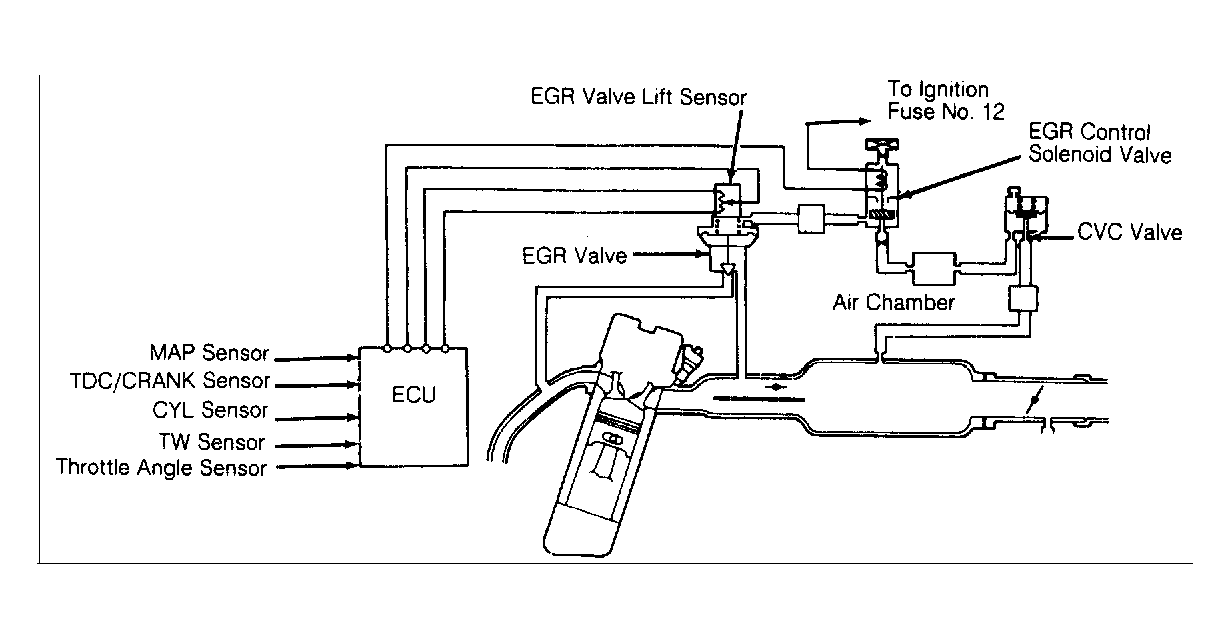

Fig 1: Accord EGR System
Courtesy of AMERICAN HONDA MOTOR CO., INC.

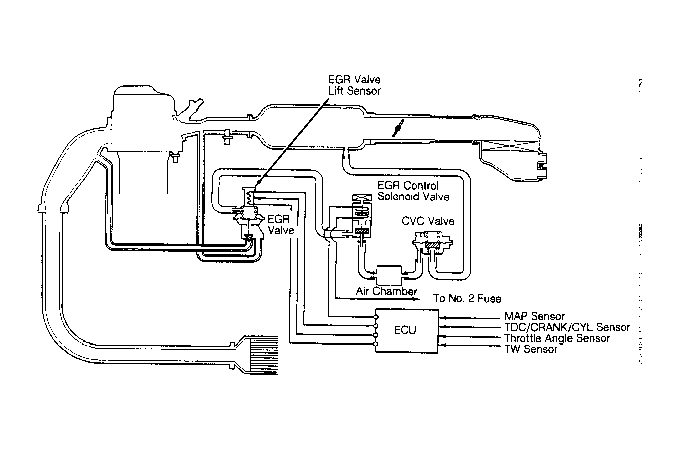

Fig 2: Civic & CRX 1.5L (Std.) EGR System (A/T)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

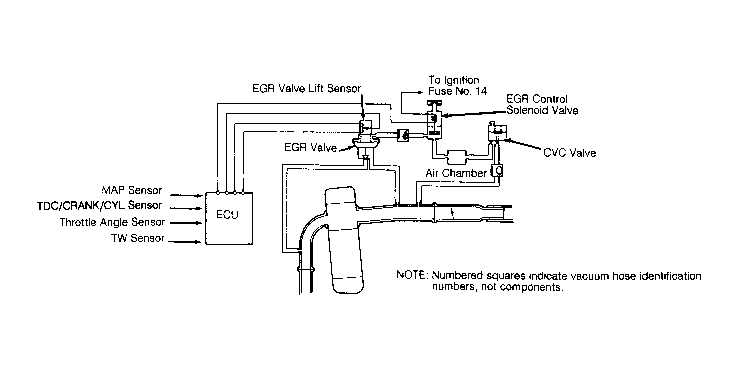

Fig 3: CRX 1.5L (HF) EGR System
Courtesy of AMERICAN HONDA MOTOR CO., INC.

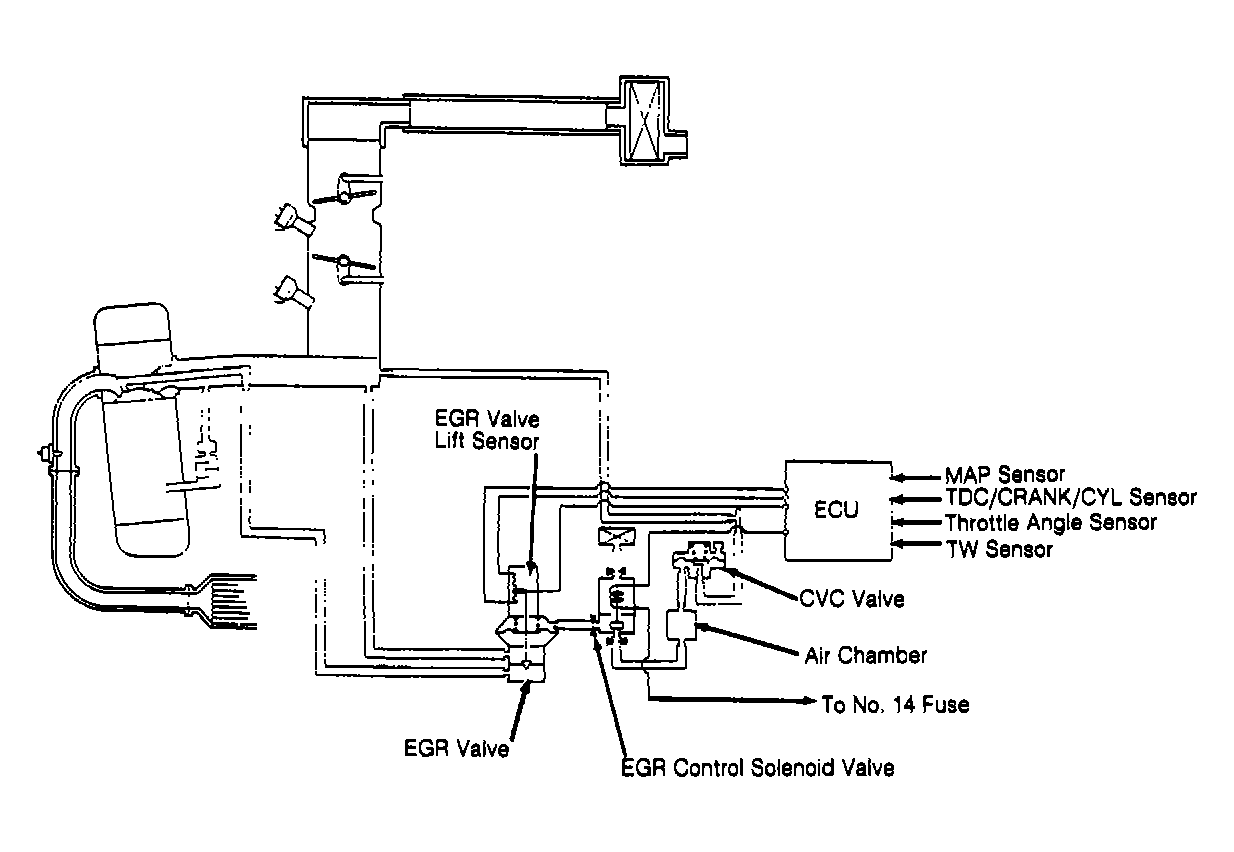

Fig 4: Prelude EGR System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
